Landini Mistral2-055 STD – Specialty Tractor for Vineyards and Orchards

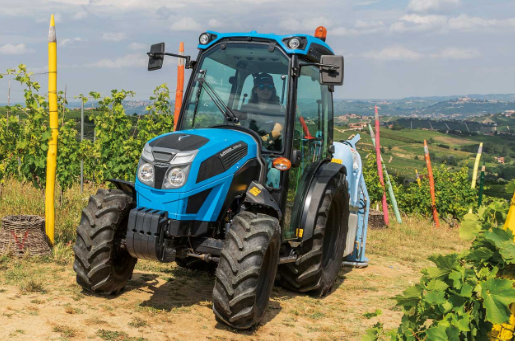

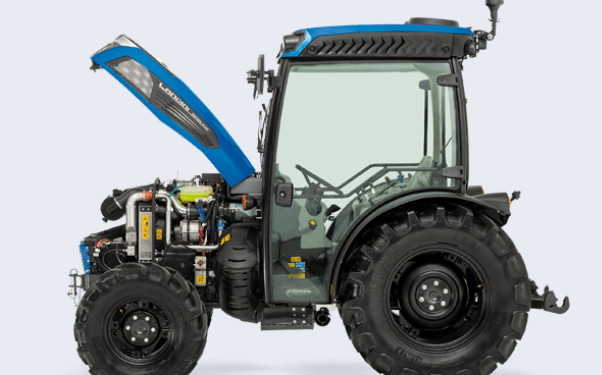

Images:

Specifications

Specification	Details
Tractor Model	Mistral2-055 STD
Vehicle Category	Specialty Tractor
Fuel Type	Diesel
Application	Vegetable Growing, Narrow-Row Orchards, Vineyards

Specification	Details
Engine	3 cylinders, 1.9 L, Kohler KDI 1903 TCR, Turbo Aftercooled, EGR, DOC, DPF
Maximum Horsepower	49 HP (36 kW) @ 2600 RPM
Maximum Torque	180 Nm @ 1200 RPM
Torque Backup	37%
Transmission Type	Mechanical, 12+12 (16+16 with Creeper)
Minimum Speed	770 m/h (220 m/h with Creeper)
Maximum Forward Speed	30 km/h (18.6 mi/h) @ 2600 RPM

Specification	Details
Front Axle	Rigid 4WD, Hydralock Differential Lock, 55° Steering Angle
Rear Axle	4WD, Electro-Hydraulic Differential Lock
Brake Type	Mechanical Wet Multi-Disc, Rear

Specification	Details
Emissions System	Stage V, EGR, DOC, DPF
Fuel Tank Capacity	40 L (10.6 gal)
Clutch	Mechanical Dry Clutch
PTO Type	Mechanical Dry Clutch, 540/540E RPM, Ground Speed PTO
Hydraulic System	Open-Center, Twin Pump
Hydraulic Flow (Hitch & Remotes)	35 L/min (9.2 gal/min)
Steering Pump Flow	20 L/min (5.3 gal/min)
Remote Valves	2 Standard, Optional 2 Standard + 1 with Float
Rear 3-Point Hitch	Category 1 with Fixed Ball Ends, Optional Category 2 with Quick-Hitch Hooks, 1200 kg
Front 3-Point Hitch	Mechanical Category 1N, Quick Couplers, 400 kg (Optional)
Front PTO	Mechanical, 1000 RPM (Optional)
Wheelbase	1790 mm (70.5 in)
Overall Width	1203-1638 mm (47.4-64.5 in)
Height (ROPS)	2124-2199 mm (83.6-86.6 in)
Height (Cab)	2205-2280 mm (86.8-89.8 in)
Height (Bonnet)	1230-1305 mm (48.4-51.4 in)
Shipping Weight (ROPS)	1600 kg (3527 lb)
Shipping Weight (Cab)	1780 kg (3924 lb)
Gross Vehicle Weight	3050 kg (6724 lb)
Operator Platform	4-Post FOPS Cab with Opening Front Window or Foldable ROPS, Manual A/C (Cab), Dust Filter (Category 2)
