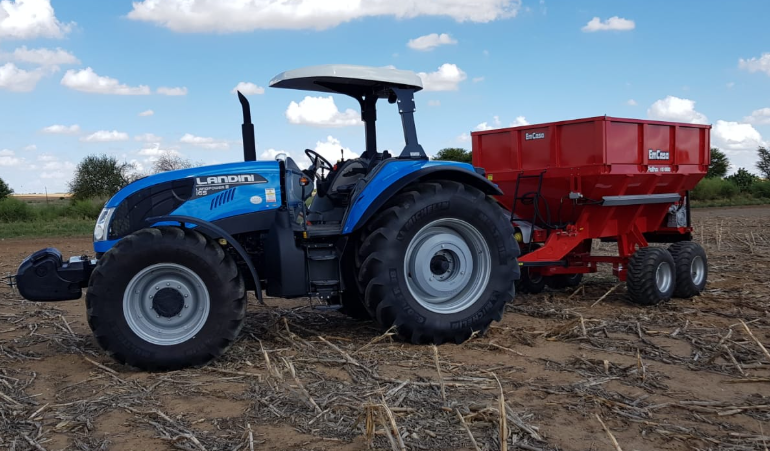

Landini Landpower 125 – Open Field Tractor for Heavy-Duty Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Landpower 125 |
|
Vehicle Category |
Open Field Tractor |
|
Fuel Type |
Diesel |
|
Application |
Open Field Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT NEF 67, Turbo Intercooled, Structural Engine |
|
Maximum Horsepower |
117 HP (86 kW) @ 1900 RPM |
|
Maximum Torque |
515 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical, 18 FWD + 18 REV (Standard), Electrohydraulic, 36 FWD + 36 REV with Creeper (Synchro Shuttle, Optional), 54 FWD + 18 REV (T-Tronic with Modulation Control & De-clutch, Standard), 108 FWD + 36 REV with Creeper (T-Tronic, Optional) |
|
Transmission Control |
Mechanical Lever |
|
Minimum Speed |
1.9 km/h (Synchro), 1.8 km/h (RPS) (IR 825 mm), 0.36 km/h (Synchro with Creeper), 0.3 km/h (RPS with Creeper) |
|
Engine Speed at 40 km/h |
2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD with Differential Lock, Wet Disc Brakes, 55° Steering Angle |
|
Braking System |
Wet Disc Brakes (Front), Hydraulic or Pneumatic Trailer Brake (Optional, OC or CCLS) |
|
Platform/Cab Suspension |
Platform on Silent Blocks with FOPS Frame (Optional), 4-Post Cab Mounted on Silent Blocks (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres Rear |
600/65 R38 (IR 825 mm) |
Components & Features
|
Specification |
Details |
|
Maintenance Interval |
500 hours |
|
Fuel Tank Capacity |
260 L (68.7 gal) |
|
PTO Type |
Electrohydraulic, 540/1000 RPM |
|
Hydraulic System |
Hydraulic Piston Pump, 87 L/min (Open-Centre, Standard), 110 L/min (Closed-Centre, Optional), Steering Pump 38 L/min, 3 to 5 Mechanical Remote Valves with Joystick, 80 L/min (OC) or 100 L/min (CCLS) |
|
Rear 3-Point Hitch |
Category 2, Electronically-Controlled with Lower Link Draft Control, Position Control, Mixed Control, Float Position, 7000 kg (90 mm Ram), 8400 kg (100 mm Ram) |
|
Wheelbase |
2800 mm |
|
Shipping Weight |
6000 kg (13228 lb) |
|
Gross Vehicle Weight |
10300 kg (22708 lb) |
|
Operator Platform |
Platform with FOPS Frame and Sun Canopy (Optional), 4-Post Cab with Manual Climate Control (Optional), Mechanical Suspension Seat (Standard), Air Suspension Seat (Optional), Hide-Away Buddy Seat (Optional), Radio MP3 with 2 Speakers, Bluetooth, Aux-In, Integrated Microphone (Cab Only, Optional), 4 Halogen Work Lights (2 on Posts, 2 on Rear Fenders, Optional) |
