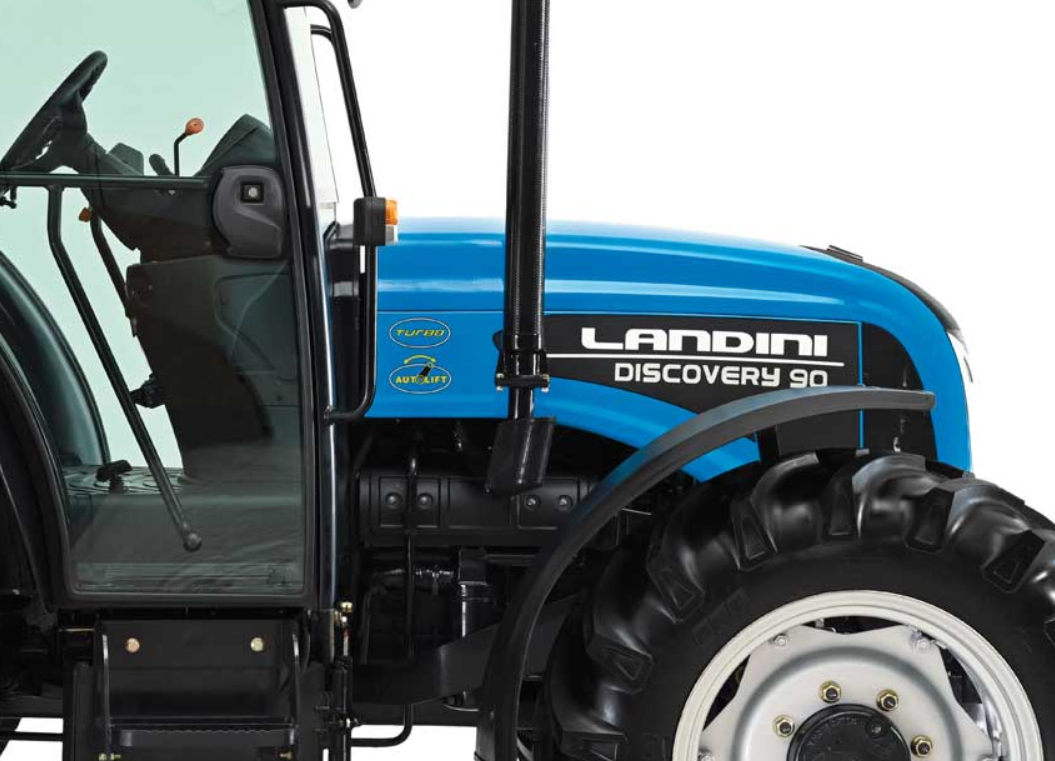

Landini Discoverycab 90BW – Utility Tractor for General Agricultural Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Discoverycab 90BW |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4087 cm³, ITL 4105 FLT, Turbo, Stage II |
|
Maximum Horsepower |
90 HP (66 kW) @ 2200 RPM |
|
Maximum Torque |
339 Nm @ 1400 RPM |
|
Transmission Type |
Synchro Mesh, 12 FWD + 12 REV |
|
Minimum Speed |
1.69 km/h |
|
Maximum Forward Speed |
35.73 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Immersed Discs, Mechanically Actuated, Independent Hand Brake |
|
Cab Suspension |
Mounted on Silent Blocks |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
9.00-16 (2WD), 12.4-24 (4WD) |
|
Standard Tyres Rear |
18.4-30 (2WD/4WD) |
|
Optional Tyres |
7.50-16 / 13.6-38 (2WD), 12.4-24 / 13.6-38 (4WD) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage II |
|
Fuel Tank Capacity |
88 L (23.2 gal) |
|
Clutch |
Independent Dry Dual Clutch, 310 mm (12 in) |
|
PTO Type |
Hand Operated, 540/540E RPM (Standard), 540/1000 RPM (Optional), Ground Speed PTO |
|
Hydraulic System |
44 L/min (Remote), 67 L/min (Total) |
|
Remote Valves |
2 Single-Acting/2 Double-Acting, 4 Hydraulic Ports |
|
Rear 3-Point Hitch |
Category 2, Position/Draft/Floating Control, Automatic Draft Control, 2500 kg |
|
Wheelbase |
2345 mm (2WD/4WD) |
|
Total Length |
3995 mm (2WD), 4160 mm (4WD) |
|
Total Width |
1980 mm (2WD), 2090 mm (4WD) |
|
Ground Clearance |
405 mm (2WD/4WD) |
|
Gross Weight |
3442 kg (7588 lb, 2WD), 3517 kg (7756 lb, 4WD) |
|
Operator Platform |

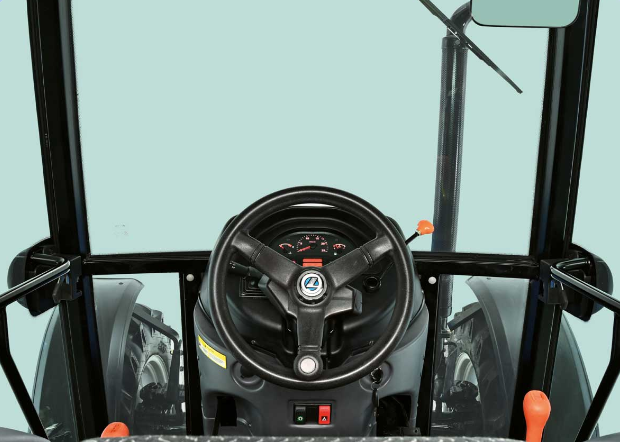

Cab with HVAC, Adjustable Driver Seat, Analogue Control Panel, Registration Plate with Light |
|
Front Axle |
2WD (Optional), 4WD (Standard) |
|
Rear Axle |
Mechanical Differential Lock |
