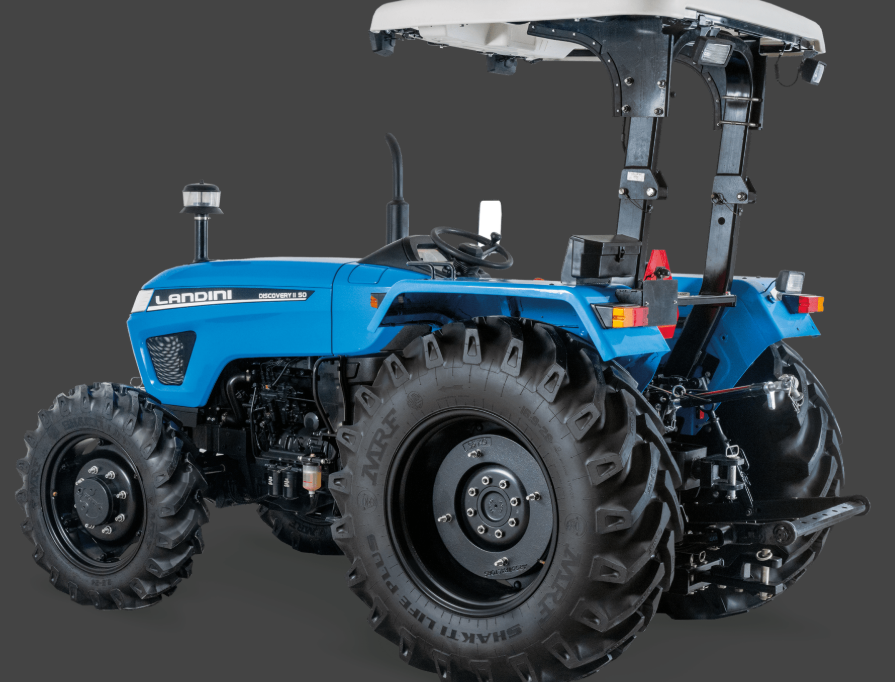

Landini Discovery II 75A-AW – Utility Tractor for General Agricultural Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Discovery II 75A-AW |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4 L, SIMPSON, Turbocharged, Tier 0 |
|
Maximum Horsepower |
75 HP (55.1 kW) @ 2200 RPM |
|
Maximum Torque |
291 Nm @ 1200 RPM |
|
Transmission Type |
Mechanical, 8 FWD + 2 REV (Standard), 12 FWD + 12 REV (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Rear Braking System |
Ramp Brakes, Wet Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
16.9x30 (2WD/4WD, IR 700 mm) |
|
Standard Tyres Rear |
16.9x30 (2WD/4WD, IR 700 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 0, No After-Treatment |
|
Fuel Tank Capacity |
65 L (17.2 gal) |
|
Clutch |
Independent Dry Dual Clutch (8+2 Standard, 12+12 Optional) |
|
PTO Type |
Mechanical, 540/540E RPM |
|
Hydraulic System |
33+27 L/min |
|
Remote Valves |
1 Double-Acting (Standard, 8+2), 2 Double-Acting (Standard, 12+12), 1 Single/Double-Acting + 1 Single-Acting (Optional, 8+2) |
|
Rear 3-Point Hitch |
Mechanical Control, 2100 kg |
|
Wheelbase |
2115 mm (2WD, 8+2), 2165 mm (4WD, 8+2), 2165 mm (2WD, 12+12), 2230 mm (4WD, 12+12) |
|
Shipping Weight |
2545 kg (5611 lb, 2WD, 8+2), 2904 kg (6402 lb, 4WD, 8+2), 2945 kg (6493 lb, 2WD, 12+12), 3171 kg (6989 lb, 4WD, 12+12) |
|
Operator Platform |
ROPS Frame (Standard), Canopy (Optional) |
|
Front Axle |
2WD (Optional), 4WD (Standard) |
|
Rear Axle |
Mechanical Differential Lock |
