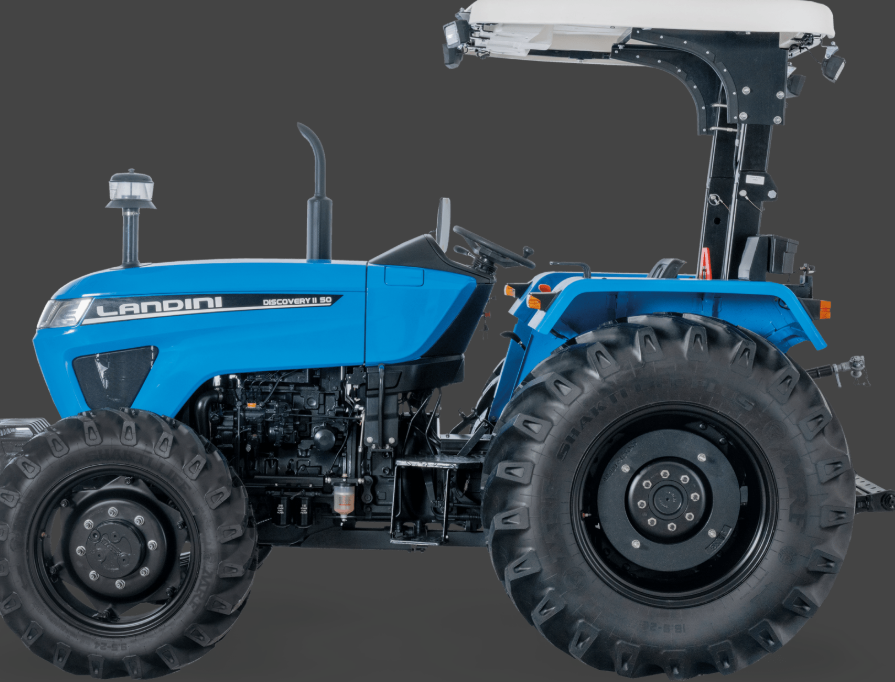

Landini Discovery II 60A – Utility Tractor for General Agricultural Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Discovery II 60A |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, 3.3 L, TMTL, Turbocharged, Tier 0 |
|
Maximum Horsepower |
60 HP (44.1 kW) @ 2150 RPM |
|
Maximum Torque |
243 Nm @ 1300 RPM |
|
Transmission Type |
Mechanical, 8 FWD + 2 REV (Standard), 12 FWD + 12 REV (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Rear Braking System |
Ramp Brakes, Wet Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
16.9x28 (2WD/4WD, IR 675 mm) |
|
Standard Tyres Rear |
16.9x28 (2WD/4WD, IR 675 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 0, No After-Treatment |
|
Fuel Tank Capacity |
65 L (17.2 gal) |
|
Clutch |
Independent Dry Dual Clutch (8+2 Standard, 12+12 Optional) |
|
PTO Type |
Mechanical, 540/540E RPM |
|
Hydraulic System |
33+27 L/min |
|
Remote Valves |
1 Double-Acting (Standard), 1 Single/Double-Acting + 1 Single-Acting (Optional) |
|
Rear 3-Point Hitch |
Mechanical Control, 2100 kg |
|
Wheelbase |
2015 mm (2WD), 2065 mm (4WD) |
|
Shipping Weight |
2405 kg (5302 lb, 2WD), 2764 kg (6094 lb, 4WD) |
|
Operator Platform |
ROPS Frame (Standard), Canopy (Optional) |
|
Front Axle |
2WD (Optional), 4WD (Standard) |
|
Rear Axle |
Mechanical Differential Lock |
