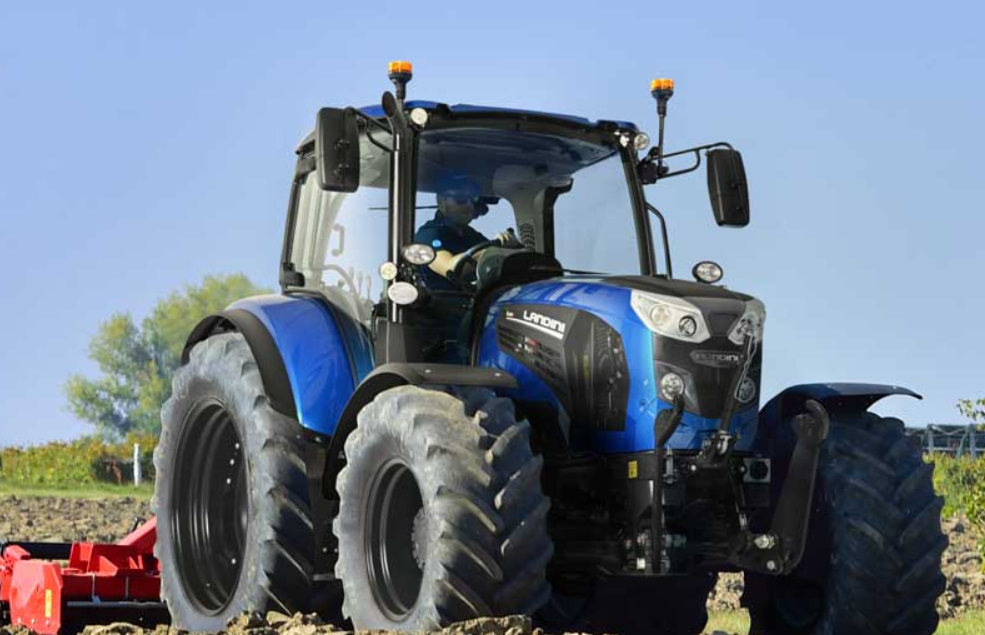

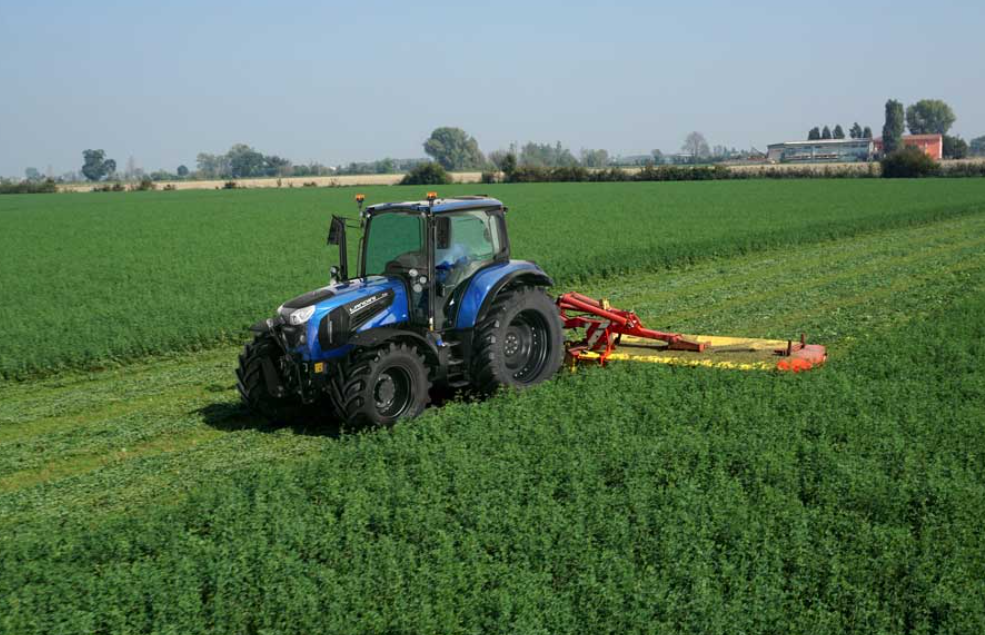

Landini 6-155 RS Robo-Six – Heavy-Duty Utility Tractor for Versatile Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
6-155 RS Robo-Six |
|
Vehicle Category |
Heavy-Duty Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Ploughing, Harrowing, Sowing, Planting, Harvesting, Loader Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.5 L, FPT NEF 45, Turbo Intercooled, Hi-eSCR2 |
|
Rated Horsepower |
136 HP (100 kW) @ 2200 RPM, 143 HP (105 kW) with EPM |
|
Maximum Horsepower |
144 HP (106 kW) @ 1800 RPM, 155 HP (114 kW) with EPM |
|
Maximum Torque |
600 Nm @ 1400 RPM, 630 Nm with EPM |
|
Torque Backup |
38% (38% with EPM) |
|
Transmission Type |
Robo-Six, 6 PowerShift Speeds, 4 Robotised Ranges, 24 FWD + 24 REV (Standard), 40 FWD + 40 REV with Creeper (Optional) |
|
Minimum Speed |
2.4 km/h (Standard), 0.38 km/h with Creeper |
|
Maximum Forward Speed |
40 km/h @ 1572 RPM (Eco Forty), 50 km/h @ 1965 RPM (Top Fifty, Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Braking System |
Wet Multi-Disc Brakes, 4WD Engagement While Braking |
|
Rear Braking System |
4 Oil-Cooled Discs |
|
Trailer Braking System |
Pneumatic 2 or 2+1 Lines (MR), Single-Line Hydraulic, 2-Line Hydraulic (40 km/h only) |
|
Engine Brake |
Standard |
|
Cab Suspension |
Mounted on Silent Blocks (Standard), Mechanical Suspension (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
480/65R28 (IR 650 mm) |
|
Standard Tyres Rear |
600/65R38 (IR 825 mm) |
|
1st Option for Front Tyres |
520/60R28 VF (IR 650 mm) |
|
1st Option for Rear Tyres |
650/60R38 VF (IR 825 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V, Hi-eSCR2 |
|
Fuel Tank Capacity |
220 L (58.1 gal) |
|
AdBlue/DEF Tank Capacity |
23 L (6.1 gal) |
|
Cooling System Capacity |
27 L (7.1 gal) |
|
PTO Type |
Electro-Hydraulic Multidisc Clutch with Modulated Engagement, 540/540E (Standard), 540/1000, 540/540E/1000/1000E (Optional), Ground Speed PTO (Optional) |
|
PTO Speeds |
540 RPM @ 1944 RPM, 540E @ 1581 RPM, 1000 @ 1952 RPM, 1000E @ 1586 RPM |
|
Hydraulic System |
Closed-Centre Load Sensing (CCLS), 114 L/min (Hitch and Remotes) |
|
Remote Valves |
3 Mechanical, 80 L/min (Standard), 3 Mechanical + 2 Electro-Hydraulic or 5 Electro-Hydraulic, 100 L/min (Optional), 2 Electro-Hydraulic Mid-Mount, 100 L/min (Optional) |
|
Flow Divider |
2 Sections, 60 L/min (Optional) |
|
Rear 3-Point Hitch |
Category II (Standard), Category III (Optional), Quick-Hitch Hooks, Electronically-Controlled with Lower Link Draft, Position, Mixed, Float Control, 7200 kg |
|
Front 3-Point Hitch |
Category III N, Quick-Hitch Hooks, Electronically-Controlled with Position Control, 2500 kg |
|
Front PTO |
Electro-Hydraulic Multidisc Clutch with Modulated Engagement, 1000 RPM @ 1920 RPM, Clockwise (Standard) or Counter-Clockwise (North American), 1-3/8” Shaft with 6 or 21 Splines (Optional) |
|
Front Loader |
L40 Front Loader, Controlled via SmartPilot Plus Joystick (Optional) |
|
Wheelbase |
2560 mm (100.8 in) |
|
Max Length |
5360 mm (211 in) with Front Weights |
|
Max Width |
2550 mm (100.4 in) with Tyres 480/65R28 - 600/65R38 |
|
Max Height (Cab) |
2880 mm (113.4 in), 2999 mm (118.1 in) with PSM |
|
Shipping Weight |
5500 kg (12125 lb) |
|
Gross Vehicle Weight |
9500 kg (20944 lb) |
|
Operator Platform |
High Vision 4-Post Cab with Panoramic Roof, FOPS-Certified, Manual Climate Control (Standard), Automatic Climate Control (Optional), 75 dBA Noise Level |
|
Front Axle |
Rigid with Brakes (Standard), IFS Independent Suspension (Optional), Electro-Hydraulic 4WD, Fully Electro-Hydraulic Wet Clutch Differential Lock |
|
Rear Axle |
Flanged, Fully Electro-Hydraulic Wet Clutch Differential Lock |
