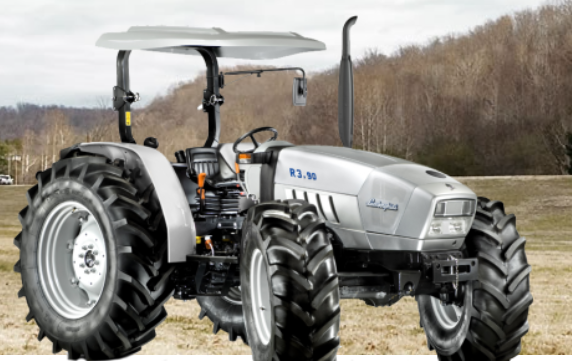

Lamborghini R3 90 – 2WD/4WD Tractor with SDF Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Lamborghini R3 90 (2WD/4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agriculture, Landscaping, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SDF 1000.4 WT, 4 cylinders, 4000 cc, Turbocharged, Stage II, Liquid cooling, High pressure injection system, Air cleaner with dust ejector, Silencer under hood with vertical exhaust |
|
Gross Horsepower |
87 HP (64.6 kW) |
|
Max Torque |
344 Nm |
|
Transmission Type |
Synchronised mechanical, 12+12 (4 gears) or 15+15 (5 gears), Optional 20+20 with creeper (min. speed: 0.38 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Driver seat with mechanical suspension, Platform with foldable ROPS |
|
Braking System |
Oil-immersed multi-disc brakes, Front axle with brakes (4WD version only), Mechanical parking brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Rear: 18.4 R30 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/1000 rpm, Independent, Oil-immersed multi-disc clutch, Electrohydraulically operated |
|
Hydraulic System |
Open centre, Pump flow rate: 56 L/min, 2/4/6 rear auxiliary spool valves (mechanical) |
|
Hitch |
Category II, Mechanical rear lift, Lifting capacity: 4200 kg, Optional haulage version (without rear lift) |
|
Fuel Tank Capacity |
90 L |
|
Weight |
3100-3200 kg |
|
Maximum Permissible Load |
6200 kg (4WD), 5100 kg (2WD) |
|
Width |
2050-2250 mm |
|
Wheelbase |
2360 mm (4WD), 2340 mm (2WD) |
|
Ground Clearance |
450 mm |
|
Features |
Side-mounted gear levers, Analogue dashboard, Planetary reduction final gearbox, Hydrostatic steering with height and tilt adjustable column, Independent steering pump (28.4 L/min), Mechanically operated 4WD and differential locks |
