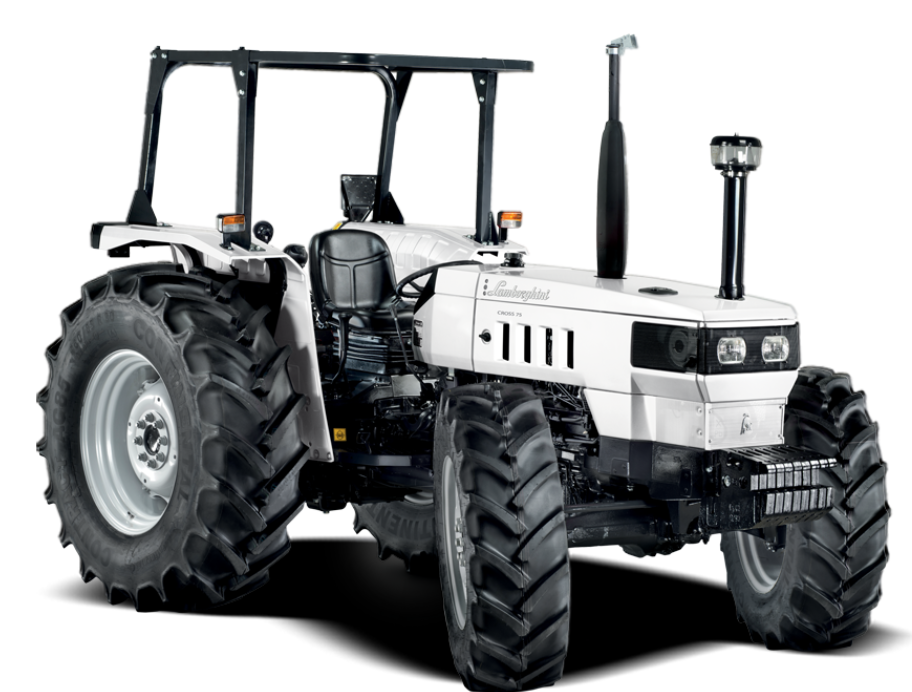

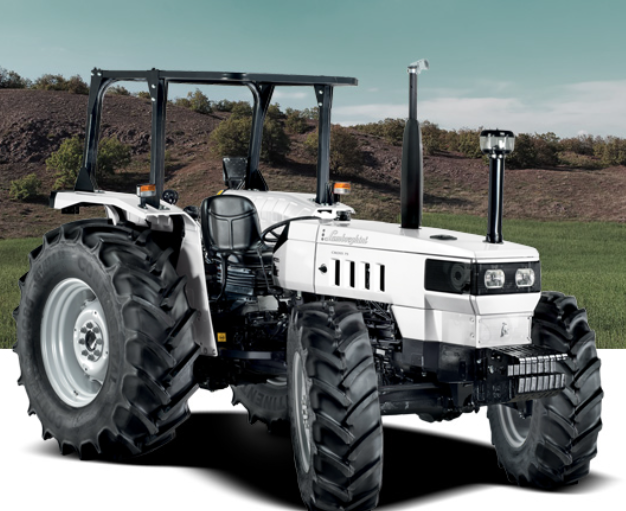

Lamborghini Cross 90 – 2WD/4WD Tractor with SDF Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Lamborghini Cross 90 (2WD/4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agriculture, Landscaping, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SDF 1000.4 WT, 4 cylinders, 4000 cc, Turbocharged, Tier 2, Liquid-cooled, High pressure injection system, Cyclone prefilter |
|
Gross Horsepower |
88 HP (64.6 kW) |
|
Max Torque |
350 Nm |
|
Engine Speed |
2350 rpm (rated) |
|
Transmission Type |
Synchronised mechanical, 12+12, Optional 16+16 or 20+20 with supercreeper gear, Hydraulically activated mechanical clutch |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Driver seat with mechanical suspension |
|
Braking System |
Integrated 4-wheel braking system with wet brake discs, Mechanical parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Rear: 460/85R34" |
|
Track Width |
Front: 1524-1640 mm, Rear: 1500-1600 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/1000 rpm, Independent, Mechanically operated multi-disc hydraulic clutch, Mechanical engagement, Optional ground speed PTO |
|
Hydraulic System |
Open-centre, Pump output: 42.2 L/min (std), 55 L/min (opt), 4/6 rear auxiliary distributors, Mechanical distributor engagement |
|
Hitch |
Category II, Rear mechanical hitch, Lift capacity: 3084 kg (std), 4760 kg (opt) |
|
Fuel Tank Capacity |
85 L |
|
Weight |
2WD: 2870 kg, 4WD: 3275 kg |
|
Maximum Permissible Load |
2WD: 4850 kg, 4WD: 5450 kg |
|
Dimensions |
Length: 3635 mm, Width: 2290 mm, Height with ROPS: 2278 mm, Wheelbase: 2297 mm (4WD), 2320 mm (2WD) |
|
Features |
Side-mounted gear levers, Platform with ROPS, Analogue instrumentation, Under-hood silencer with side exhaust, Planetary reduction final gearbox, Hydrostatic steering with independent pump |
|
Turning Circle |
2WD: 3350 mm (70°), 4WD: 4500 mm (50°) |
