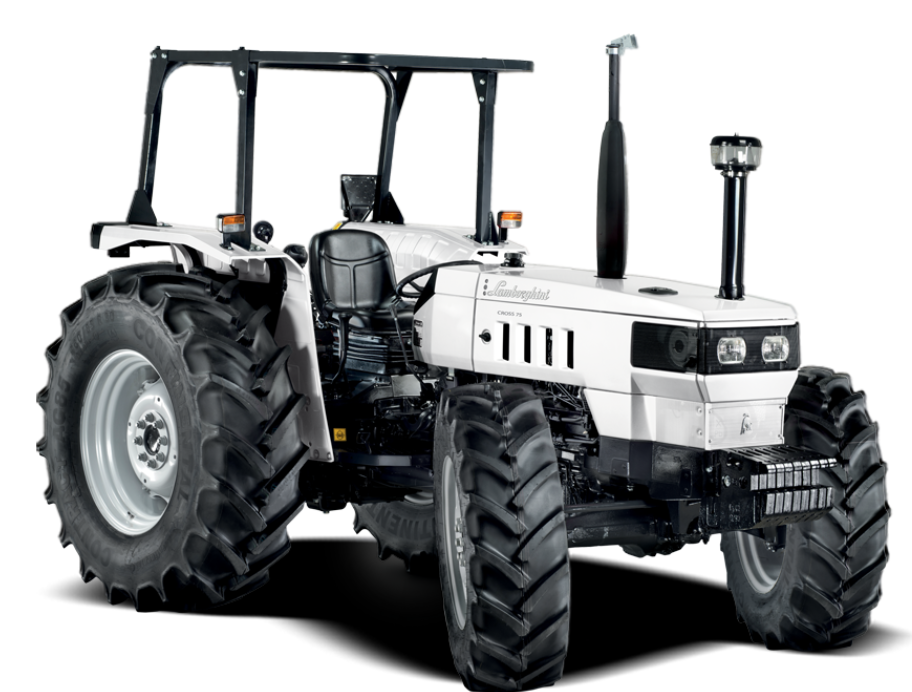

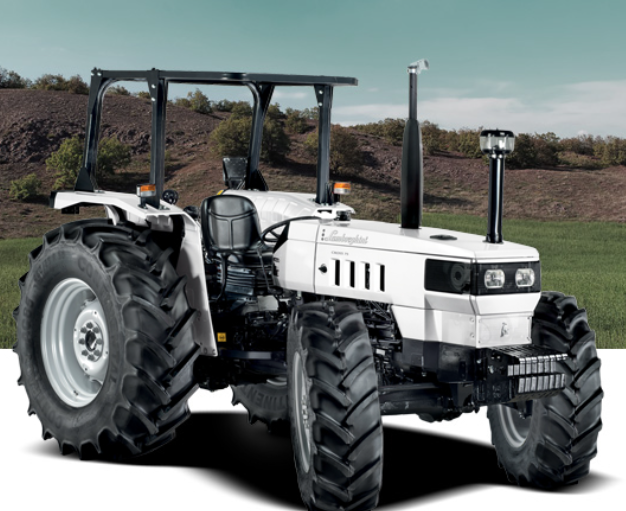

Lamborghini Cross 75 – 2WD/4WD Tractor with SDF Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Lamborghini Cross 75 (2WD/4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agriculture, Landscaping, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SDF 1000.4 W, 4 cylinders, 4000 cc, Naturally aspirated, Tier 1, Liquid-cooled, High pressure injection system |
|
Gross Horsepower |
74 HP (54.5 kW) |
|
Max Torque |
256 Nm |
|
Engine Speed |
2350 rpm (rated) |
|
Transmission Type |
Synchronised mechanical, 12+12, Optional 16+16 or 20+20 with supercreeper gear |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Driver seat with mechanical suspension |
|
Braking System |
Integrated 4-wheel braking system with wet brake discs, Mechanical parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Rear: 420/85R30" |
|
Track Width |
Front: 1524-1640 mm, Rear: 1500-1600 mm |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/1000 rpm, Independent, Mechanical clutch (dry, single), Mechanical engagement, Optional ground speed PTO |
|
Hydraulic System |
Open-centre, Pump output: 34.2 L/min (std), 55 L/min (opt), 2/4 rear auxiliary distributors, Mechanical distributor engagement |
|
Hitch |
Category II, Rear mechanical hitch, Lift capacity: 3450 kg |
|
Fuel Tank Capacity |
50 L |
|
Weight |
2WD: 2450 kg, 4WD: 2775 kg |
|
Maximum Permissible Load |
2WD: 4400 kg, 4WD: 4900 kg |
|
Dimensions |
Length: 3630 mm, Width: 2430 mm, Height with ROPS: 2200 mm, Wheelbase: 2247 mm (4WD), 2270 mm (2WD) |
|
Features |
Side-mounted gear levers, Platform with ROPS, Analogue instrumentation, Under-hood silencer with side exhaust, Mechanical clutch (dry, single), Planetary reduction final gearbox, Hydrostatic steering with independent pump |
|
Turning Circle |
2WD: 3350 mm (70°), 4WD: 4150 mm (50°) |
