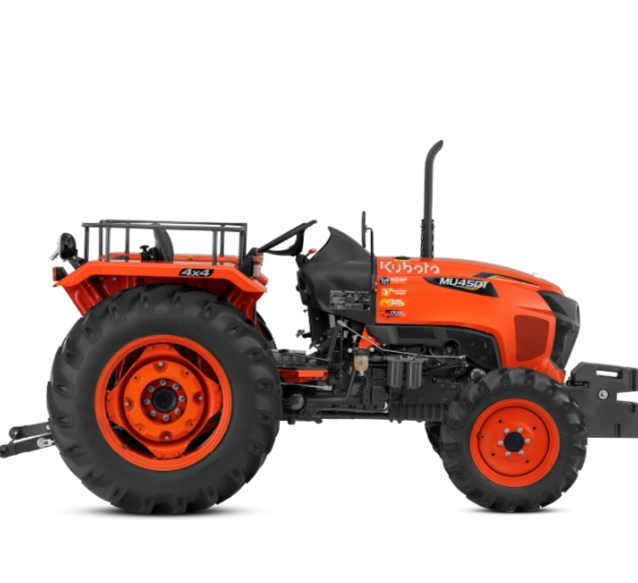

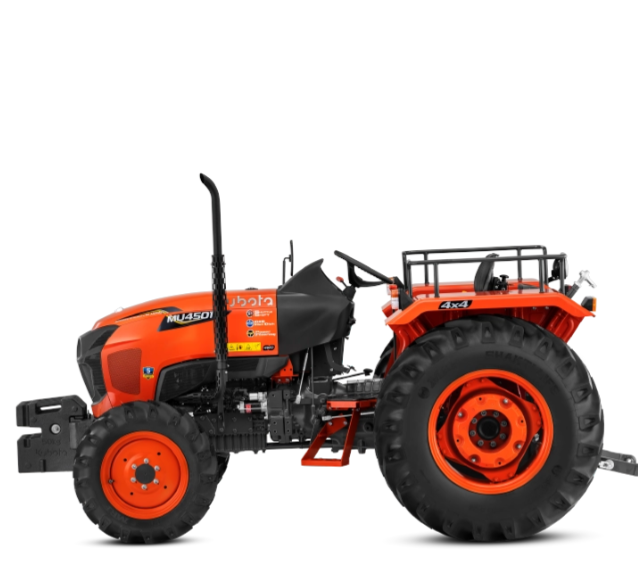

Kubota MU4501-4WD – 4WD Agricultural Tractor by Kubota
Specifications
|
Specification |
Details |
|
Tractor Model |
Kubota MU4501-4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Engine Power |
33.6 kW Cat. (45 HP Cat.) |
|
Engine Displacement |
2434 cc |
|
Clutch |
Double |
|
Transmission Type |
Gear Shift |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 4 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil immersed disc |
|
Steering Type |
Hydraulic Double acting power steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
(20.32 cm x 45.72 cm) 8 inch x 18 inch |
|
Rear Tyres |
(34.54 cm x 71.12 cm) 13.6 inch x 28 inch |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1640 kg |
|
PTO Speed |
540 RPM |
|
Fuel Tank Capacity |
60 litres |
|
Front Axle Type |
4WD |
|
Overall Width |
1870 mm |
|
Overall Length |
3110 mm |
|
Ground Clearance |
365 mm |
|
Wheel Base |
1990 mm |
|
Total Weight |
1970 kg |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
