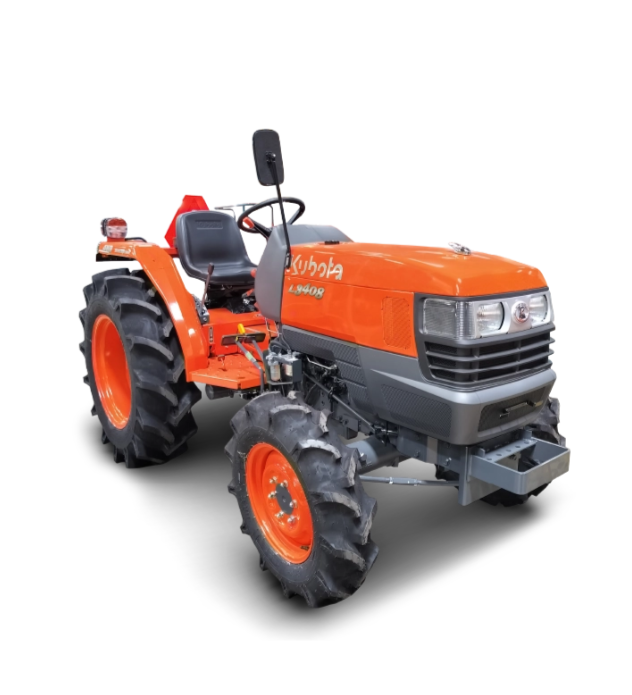

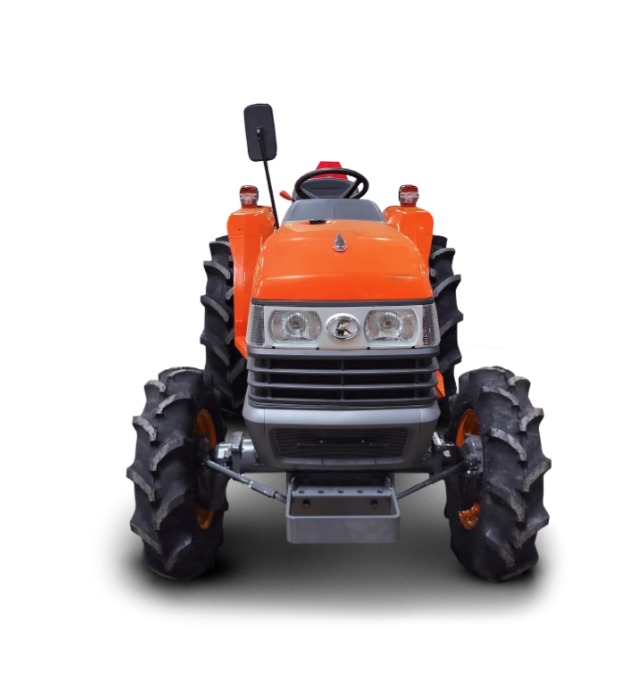

Kubota L3408 – 4WD Agricultural Tractor by Kubota
Specifications
|
Specification |
Details |
|
Tractor Model |
Kubota L3408 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Engine Power |
25.9 kW (34 HP Cat.) |
|
Clutch |
Single |
|
Transmission Type |
Gear Shift |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 4 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Wet Disk Type |
|
Steering Type |
Integral Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
20.32 cm x 40.64 cm (8 inch x 16 inch) |
|
Rear Tyres |
31.49 cm x 60.96 cm (12.4 inch x 24 inch) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
750 kg |
|
PTO Speed |
540 RPM |
|
Fuel Tank Capacity |
34 litres |
|
Front Axle Type |
4 Wheel Drive Axle |
|
Overall Width |
1430 mm |
|
Overall Length |
2925 mm |
|
Overall Height |
1715 mm |
|
Ground Clearance |
350 mm |
|
Wheel Base |
1610 mm |
|
Total Weight |
1115 kg |
