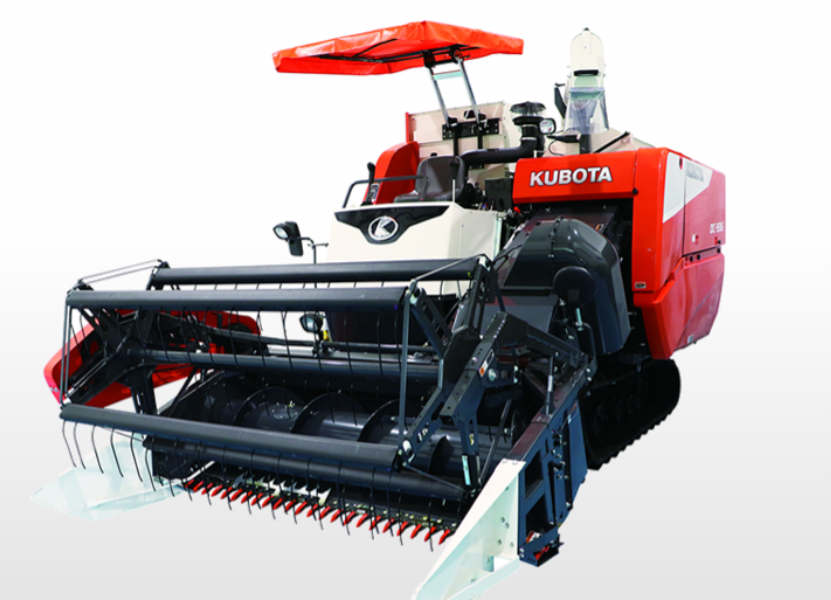

Kubota DC93G Combine Harvester – 93.3 HP Rice Harvester
Specifications
|
Specification |
Details |
|
Model |
DC93G |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
V3800DI-TE2-CT3, water-cooled, 4-cylinder diesel engine with turbocharger |
|
Gross Horsepower |
69.6 kW (94.6 PS / 93.3 HP) @ 2600 RPM |
|
Transmission Type |
Hydrostatic transmission (HST, 45cc/rev) |
|
Gear Speeds (m/s) |
Low: 0–0.86, Medium: 0–1.36, High: 0–2.10 |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Crawlers: 550 mm width x 1890 mm ground contact length, tread: 1280 mm, average ground pressure: 18.3 kPa |
Components & Features
|
Specification |
Details |
|

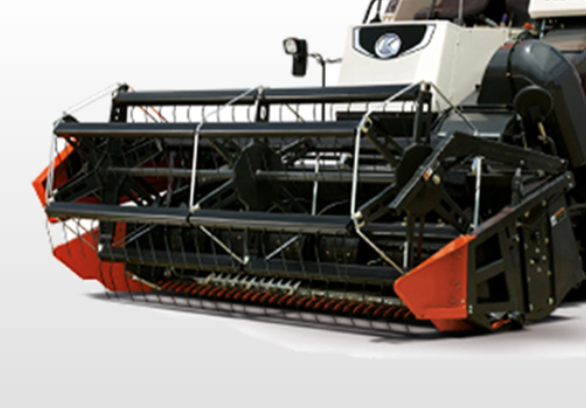

Cutter Bar Assembly |
Cutting width: 2182 mm (distance between top of divider), auto-tension feeder |
|
Threshing System |
Spiked tooth axial flow, thresher cylinder: 620 mm diameter x 1960 mm length, 6 concaves |
|
Cleaning System |
Oscillating/2-way air stream cleaning system, chaffer sieve: 840 mm width x 1500 mm length |
|
Grain Tank |
1800 L (approx. 1.08 m³, based on rice density) |
|
Reel Assembly |
900 mm diameter, 5 tine bars |
|
Fuel Tank |
120 L |
|
Features |
Auto-tension feeder adjustment |
|
Width |
2422 mm |
|
Length |
5430 mm |
|
Max Height |
2830 mm |
|
Weight |
3875 kg |
|
Ground Clearance |
330 mm |
