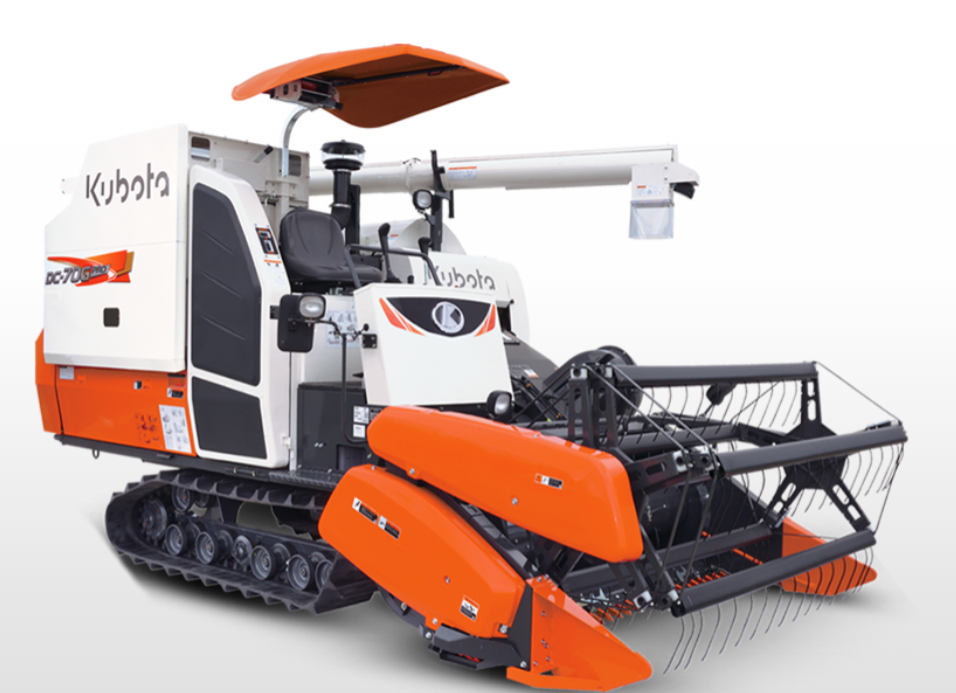

Kubota DC70G-Pro Combine Harvester – 69 HP Rice Harvester
Specifications
|
Specification |
Details |
|
Model |
DC70G-Pro |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
V2403-M-DI-TE-CS1T, water-cooled, 4-cycle, 4-cylinder vertical diesel engine with turbocharger |
|
Gross Horsepower |
50.7 kW (69.0 HP) @ 2700 RPM |
|
Transmission Type |
Hydrostatic transmission (HST), 3 forward, 3 reverse |
|
Gear Speeds (m/s) |
Forward: Low 0–0.97, Medium 0–1.37, High 0–1.85; Backward: Not specified |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Steering clutch and brake |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Crawlers: 500 mm width x 1700 mm ground contact length, tread: 1250 mm, average ground contact pressure: 19.0 kPa (0.19 kg/cm²) |
Components & Features
|
Specification |
Details |
|
Cutter Bar Assembly |
Cutter bar length: 1980 mm, gathering length: 2075 mm |
|
Threshing System |
Spiked tooth axial flow, thresher cylinder: 620 mm diameter x 1650 mm length, 560 RPM; Concave area: 1.456 m² |
|
Cleaning System |
Oscillating/3-way air stream cleaning system |
|
Grain Tank |
1000 kg (approx. 1.8 m³), 235° turning angle of grain unloader, discharge height range: 1.8–4.5 m |
|

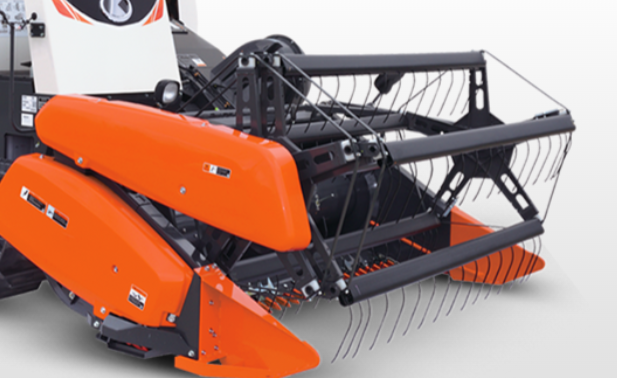

Reel Assembly |
Pickup reel: 900 mm diameter x 1903 mm width, hydraulic height adjustment |
|
Steering |
Clutch and brake system |
|
Fuel Tank |
85 L |
|
Features |
12V battery starting, lighting equipment, alarms (coolant temperature, battery charge, engine oil, grain tank full, tailings clogging), harvesting capacity: 0.3–0.62 ha/hr (rice) |
|
Width |
2295 mm |
|
Length |
4800 mm |
|
Max Height |
2830 mm (with canopy stored), 2540 mm (without canopy) |
|
Weight |
3290 kg |
|
Ground Clearance |
325 mm |
