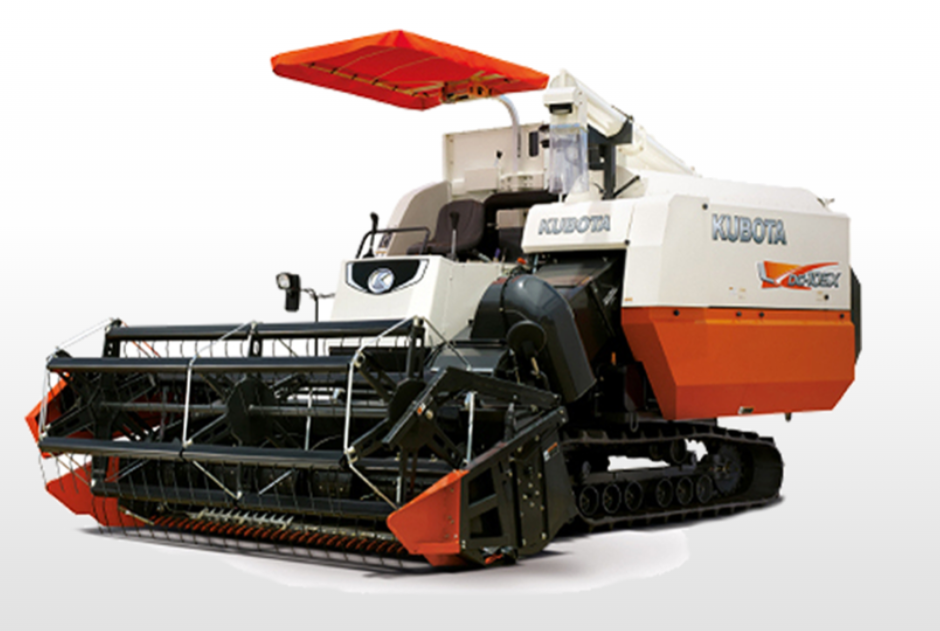

Kubota DC105X Combine Harvester – 105 HP Rice Harvester
Specifications
|
Specification |
Details |
|
Model |
DC105X |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
V3800DI, water-cooled, 4-cycle, 4-cylinder vertical diesel engine with turbocharger |
|
Gross Horsepower |
77.2 kW (105 HP) @ 2600 RPM |
|
Gear Speeds (m/s) |
Forward: Low 0–0.85, Middle 0–1.35, High 0–1.90; Harvesting speed: 1.90 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Clutch and brake system |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Crawlers: 575 mm width x 1900 mm ground contact length, average ground contact pressure: 20.7 kPa |
Components & Features
|
Specification |
Details |
|
Cutter Bar Assembly |
Cutter bar length: 2667 mm, gathering length: 2760 mm, cutting height range: -819 mm (below ground level) |
|
Threshing System |
Axial flow system, threshing cylinder: 620 mm diameter x 2210 mm length, 550 RPM, concave area: 1.6 m² |
|
Cleaning System |
Oscillating/3-way air stream cleaning system, sieve case: 1375 mm length x 840 mm width |
|
Grain Tank |
2350 L (approx. 1.41 m³, based on rice density), 235° turning angle of grain unloader, discharge height range: 1.93–4.81 m, grain discharge time: ~90 seconds, grain unloader length: 3875 mm |
|

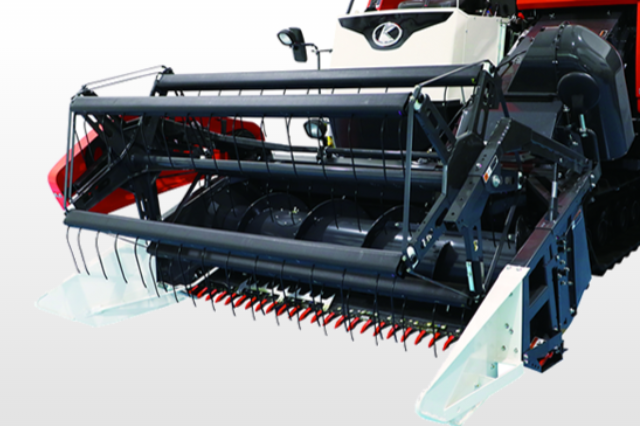

Reel Assembly |
Pickup reel: 900 mm diameter x 2590 mm width, hydraulic height adjustment |
|
Steering |
Clutch and brake system |
|
Fuel Tank |
105 L |
|
Features |
12V battery starting, lighting equipment, alarms (coolant temperature, battery charge, engine oil, grain tank full, tailings clogging), harvesting capacity: 5.75–10 acres/day |
|
Width |
3045 mm |
|
Length |
5640 mm |
|
Max Height |
2800 mm (with canopy stored) |
|
Weight |
4630 kg |
|
Ground Clearance |
325–425 mm |
