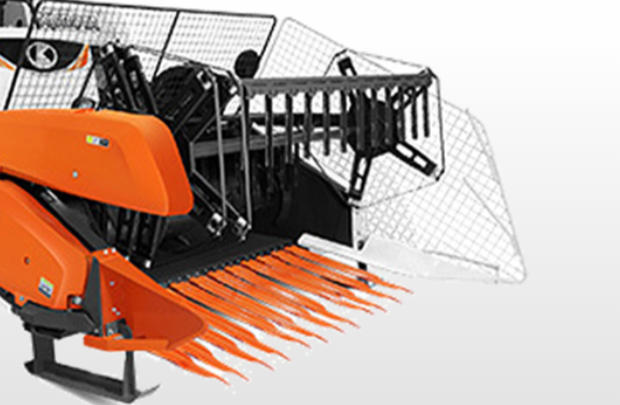

Kubota Corn-Kit Combine Harvester – 70–105 HP Corn Harvester
Specifications
|
Specification |
Details |
|
Model |
Corn-Kit |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Corn |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
V2403-M-DI-TE-CS1T, water-cooled, 4-cycle, 4-cylinder vertical diesel engine with turbocharger |
|
Gross Horsepower |
49.2 kW (70–105 HP) @ 2700 RPM |
|
Gear Speeds (m/s) |
Forward: Medium 0–1.23, High 0–1.75; Harvesting speed: 1.23 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Clutch and brake system |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Crawlers: 500 mm width x 1800 mm ground contact length, 450 mm width x 1680 mm ground contact length, average ground contact pressure: not specified |
Components & Features
|
Specification |
Details |
|
Cutter Bar Assembly |
Cutter bar length: 1980 mm, gathering length: 2075 mm, cutting height range: -819 mm (below ground level) |
|
Threshing System |
Spiked tooth axial flow, threshing cylinder: 620 mm diameter x 1650 mm length, 560 RPM; concave area: 0.9 m² |
|
Cleaning System |
Oscillating/3-way air stream cleaning system, sieve case: 1375 mm length x 840 mm width |
|
Grain Tank |
1250 L (approx. 0.75 m³, based on corn density), 235° turning angle of grain unloader, discharge height range: 1.1–4.5 m, grain discharge time: ~90 seconds, grain unloader length: 3660 mm |
|
Reel Assembly |
Pickup reel: 900 mm diameter x 1903 mm width, hydraulic height adjustment |
|
Steering |
Clutch and brake system |
|
Fuel Tank |
60 L |
|
Features |
12V battery starting, lighting equipment, alarms (coolant temperature, battery charge, engine oil, grain tank full, tailings clogging), harvesting capacity: 5.75–10 acres/day |
|
Width |
2245 mm |
|
Length |
4800 mm |
|
Max Height |
2800 mm (with canopy stored) |
|
Weight |
3200 kg |
|
Ground Clearance |
325 mm |
