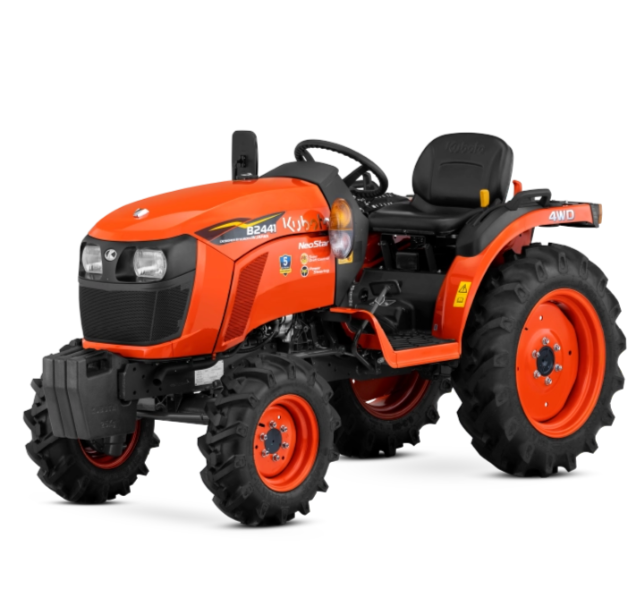

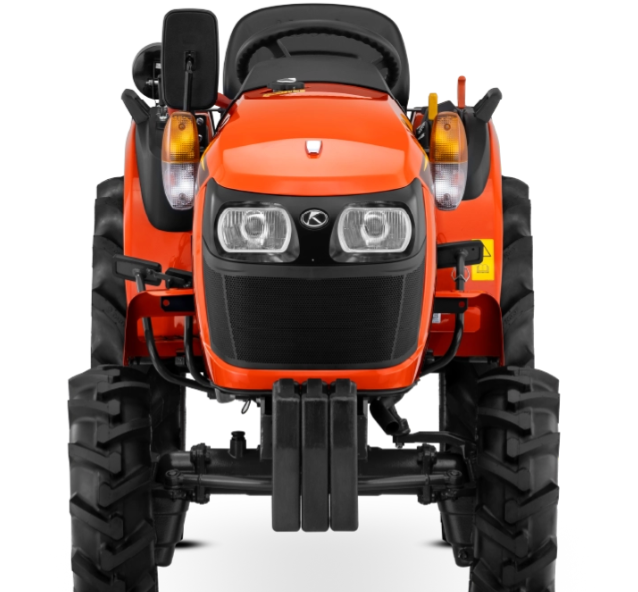

KUBOTA B2441 4WD – 4WD Compact Tractor by KUBOTA
Specifications
|
Specification |
Details |
|
Tractor Model |
KUBOTA B2441 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Compact Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Clutch Type |
Single |
|
Transmission Type |
Gear Shift |
|
Drive Type |
4WD |
|
Number of Gears |
9F + 3R |
|
Power Range |
16.3 kW (24 HP) |
|
Maximum Torque |
70 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7 x 12 inch |
|
Rear Tyres |
8.3 x 18 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
750 kg |
|
PTO RPM |
Standard 540 |
|
Fuel Tank Capacity |
23 L |
|
Front Axle Type |
4 Wheel Drive Axle |
|
Power Steering |
Power Steering |
|
Overall Length |
2410 mm |
|
Overall Width |
1105 mm |
|
Overall Height |
1280 mm |
|
Ground Clearance |
325 mm |
|
Wheel Base |
1560 mm |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
