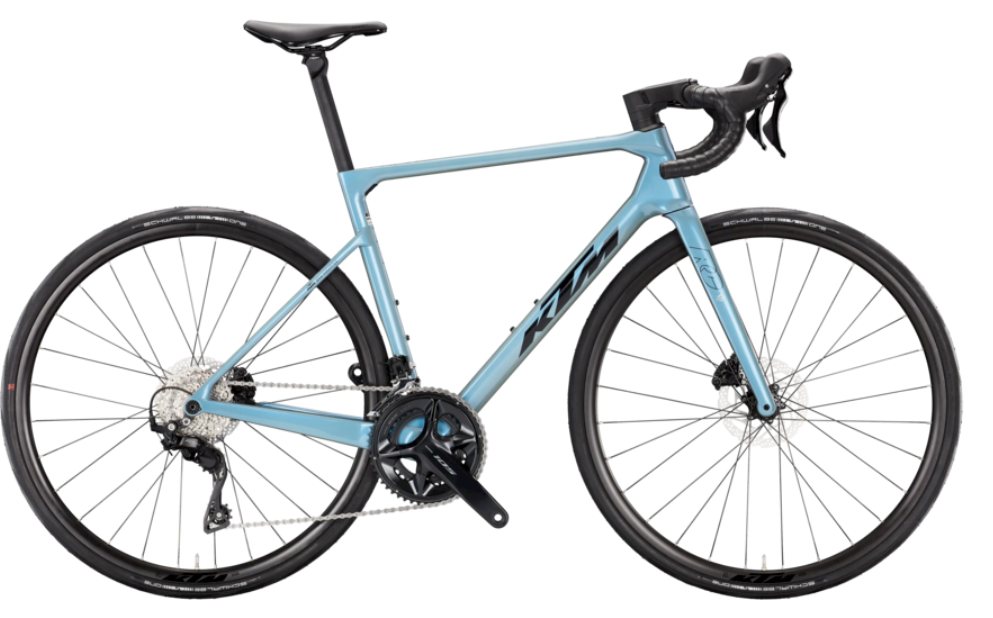

2026 KTM Revelator Alto Pro 105 – Entry-Level Carbon Aero Road Bike (Candy Bluegrey)
Specifications
|
Specification |
Details |
|
Model |
Revelator Alto Pro |
|
Application |
Road Race, Granfondo, Climbing |
|
Vehicle Category |
Entry-Level Aero Carbon Road Bike |
|
Starting Price (2025) |
€1,699 |
|
Color Options |
Candy Bluegrey |
|
Sizes |
XS | S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Revelator Alto Performance Carbon |
|
Fork |
Revelator Alto Performance Carbon F15 |
|
Groupset |
Shimano 105 R7100 2×12 mechanical |
|

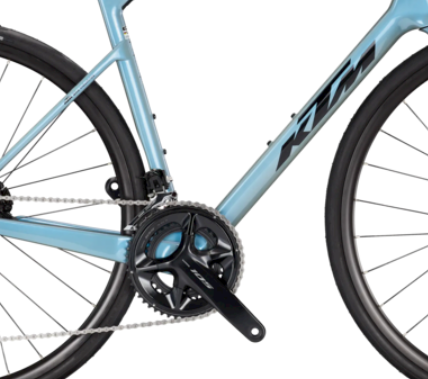

Crank |
Shimano 105 R7100 50-34T |
|

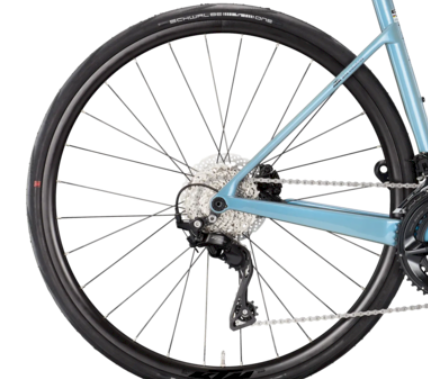

Cassette |
Shimano 105 R7101 11-34T |
|
Chain |
Shimano M6100-12 |
Components & Features
|
Specification |
Details |
|
Brakes |
Shimano 105 hydraulic | CL300 160 mm rotors |
|

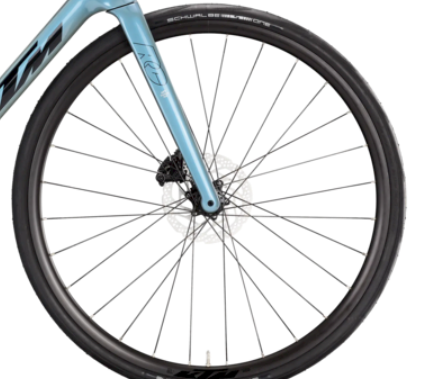

Wheels |
Alexrims GD24P alloy |
|
Tires |
Schwalbe One Performance RaceGuard 30-622 (front & rear) |
|

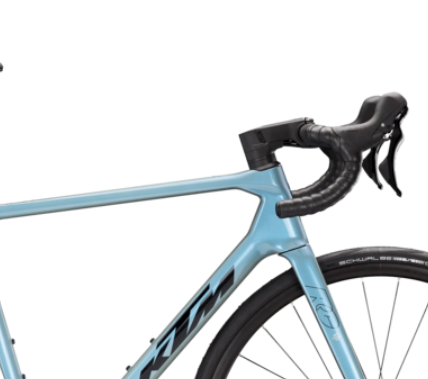

Handlebar |
KTM COMP Road |
|
Stem |
KTM TEAM Road -7° ICR |
|
Seatpost |
KTM COMPLink zero Alloy aero |
|
Saddle |
KTM Line Sport |
|
Weight |
8.9 kg |
|
Permissible Total Weight |
117 kg |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
