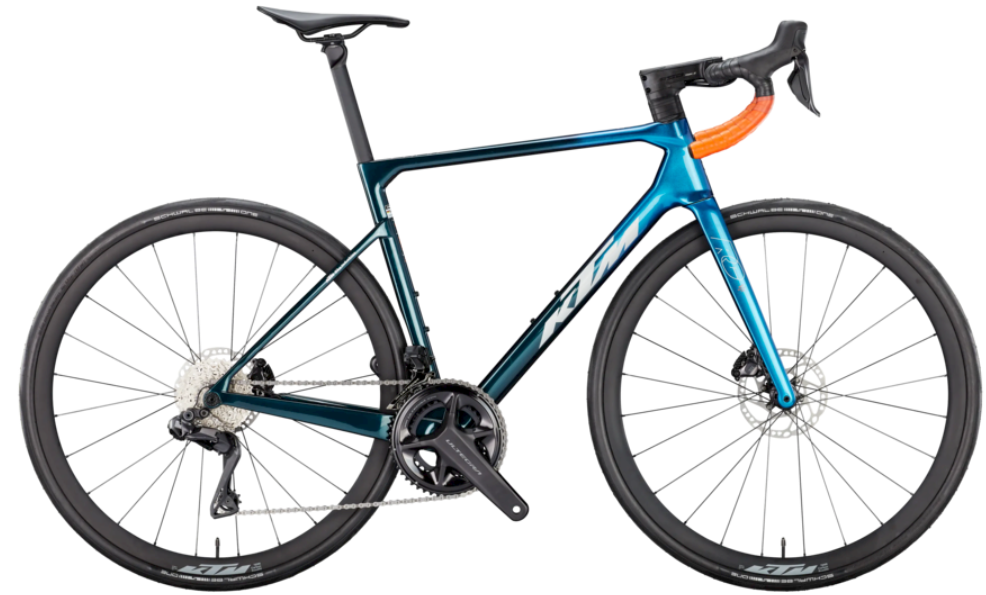

2026 KTM Revelator Alto Master – Carbon Aero Road Bike with Ultegra Di2
Specifications
|
Specification |
Details |
|
Model |
Revelator Alto Master |
|
Application |
Road Race, Granfondo, Climbing |
|
Vehicle Category |
Aero Carbon Road Race Bike |
|
Starting Price (2025) |
€3,299 |
|
Color Options |
Dark Sea + Blue |
|
Sizes |
XS | S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Revelator Alto Performance Carbon |
|

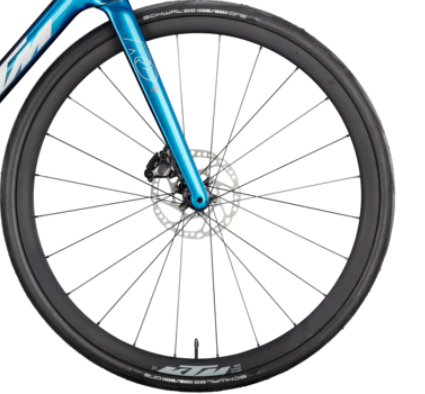

Fork |
Revelator Alto Performance Carbon F15 |
|
Groupset |
Shimano Ultegra Di2 R8150 2×12 |
|

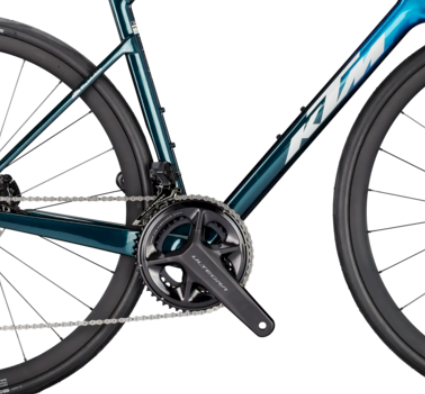

Crank |
Shimano Ultegra R8100 50-34T |
|

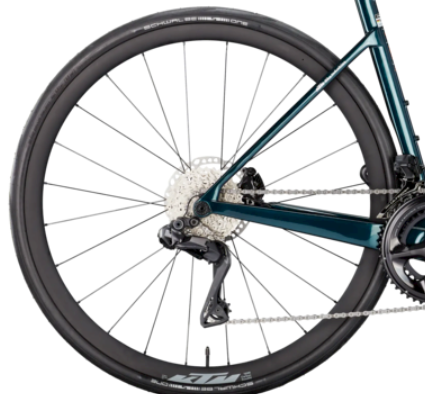

Cassette |
Shimano Ultegra R8101 11-30T |
|
Chain |
Shimano M8100-12 |
Components & Features
|
Specification |
Details |
|
Brakes |
Shimano Ultegra Di2 hydraulic | CL700 Freeza 160 mm rotors |
|
Wheels |
KTM TEAM Carbon Road 24H TLR |
|
Tires |
Schwalbe One Performance RaceGuard 30-622 (front & rear) |
|

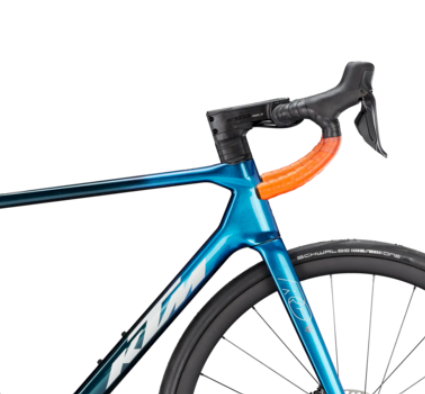

Handlebar |
VISION TriMax Aero |
|
Stem |
FSA NS SMR-II -10° |
|
Seatpost |
KTM COMPLink zero Alloy aero |
|
Saddle |
Fizik Antares Vento S-Alloy |
|
Weight |
8.2 kg |
|
Permissible Total Weight |
108 kg |
