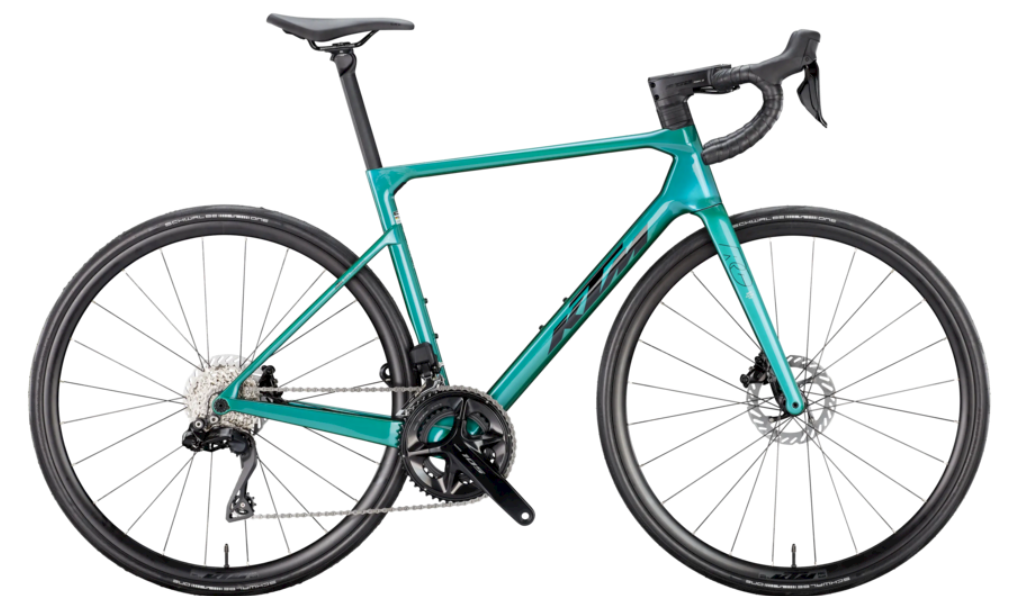

2026 KTM Revelator Alto Elite – Ultimate Carbon Race Bike
Specifications
|
Specification |
Details |
|
Model |
Revelator Alto Elite 2×12 Shimano 105 Di2 |
|
Vehicle Category |
Premium Carbon Race Road Bike |
|
Application |
Road Racing, Granfondo, Fast Group Rides – Tour de France proven |
|
Price (2025) |
€2,599 SRP |
|
Color |
Jungle |
|
Sizes |
XS | S | M | L | XL |
Frame & Fork
|
Specification |
Details |
|
Frame |
Revelator Alto Performance Carbon – Tour de France proven |
|
Fork |
Revelator Alto Performance Carbon F15 thru-axle |
Components & Features
|
Specification |
Details |
|
Drivetrain |
Shimano 105 Di2 R7150 12-speed electronic |
|

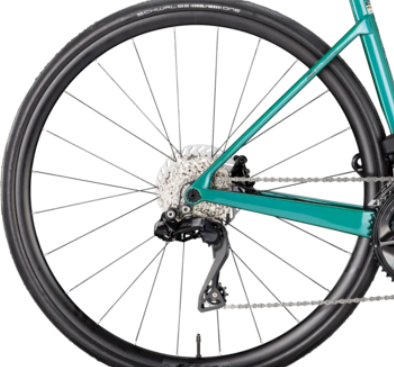

Cassette |
Shimano 105 R7101 11-34T |
|

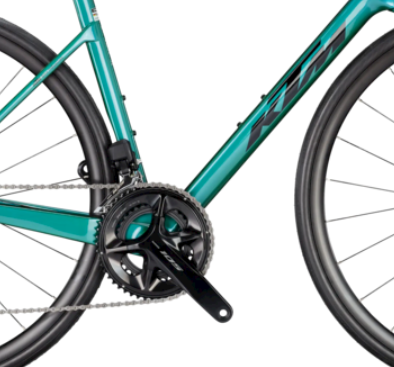

Crankset |
Shimano 105 R7100 50-34T |
|
Brakes |
Shimano 105 Di2 R7170 hydraulic flat-mount |
|
Rotors |
Shimano CL700 Centerlock 160 mm Freeza |
|

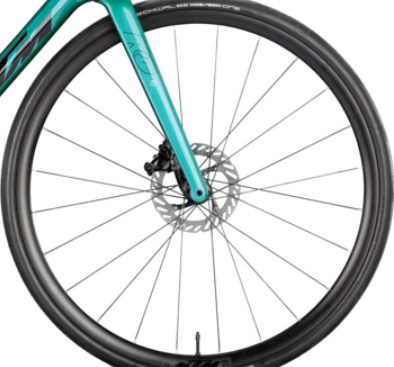

Wheels |
KTM Pro Road 700c |
|
Tires |
Schwalbe One Performance RaceGuard 30-622 |
|

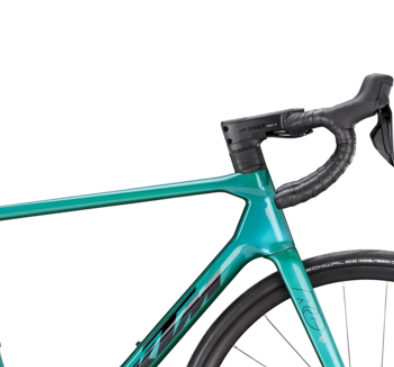

Handlebar |
FSA Gossamer Compact Road |
|
Saddle |
Selle Royal SRX |
|
Weight |
8.6 kg (size M) |
|
Permissible Total Weight |
117 kg |
