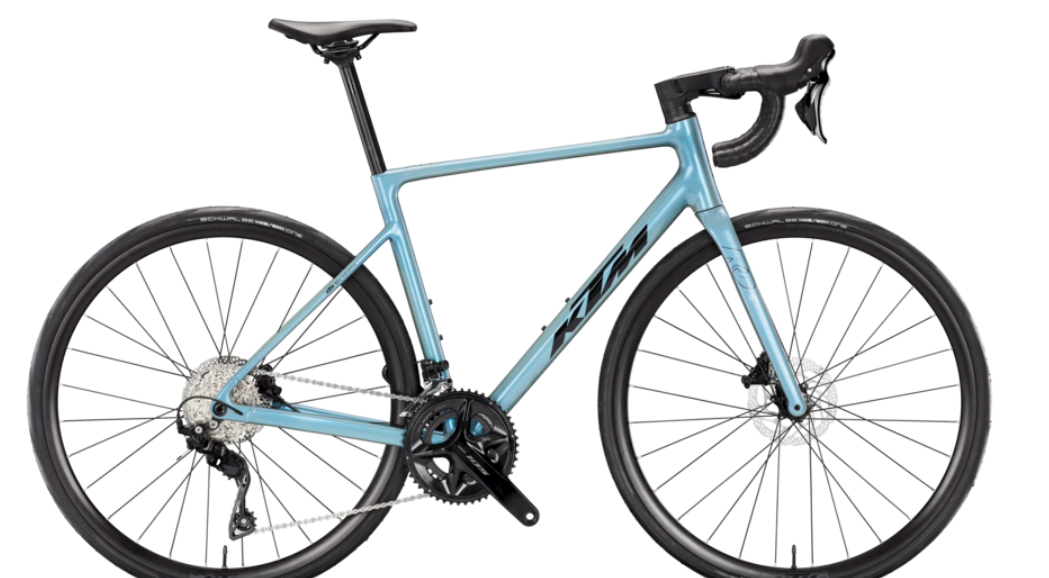

2026 KTM Revelator 10 – The Aluminium Race Rocket
Specifications
|
Specification |
Details |
|
Model |
Revelator 10 2×12 Shimano 105 |
|
Vehicle Category |
Entry-Level Aluminium Race Road Bike |
|
Application |
Road Racing, Training, Fast Group Rides – insane value |
|
Price (2025) |
€1,399 SRP |
|
Color |
Candy Bluegrey |
|
Sizes |
XS | S | M | L | XL |
Frame & Fork
|
Specification |
Details |
|
Frame |
Revelator Alloy 6061 Triple-Butted – seamless welding |
|
Fork |
Revelator Carbon F19 thru-axle |
Components & Features
|
Specification |
Details |
|
Drivetrain |
Shimano 105 R7100 12-speed mechanical |
|

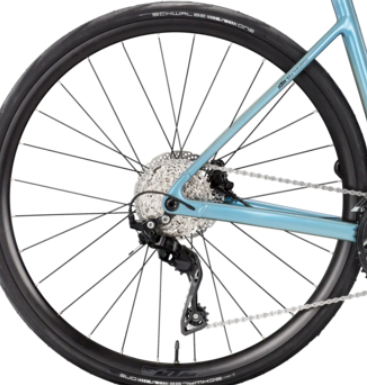

Cassette |
Shimano 105 R7101 11-34T |
|

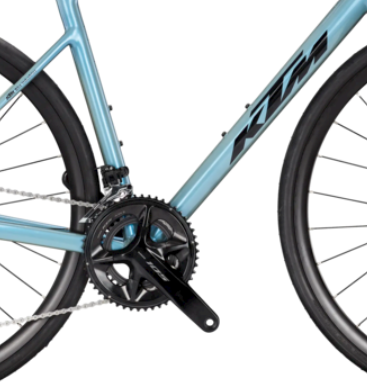

Crankset |
Shimano 105 R7100 50-34T |
|
Brakes |
Shimano 105 R7120 hydraulic flat-mount |
|
Rotors |
Shimano CL300 Centerlock 160 mm |
|

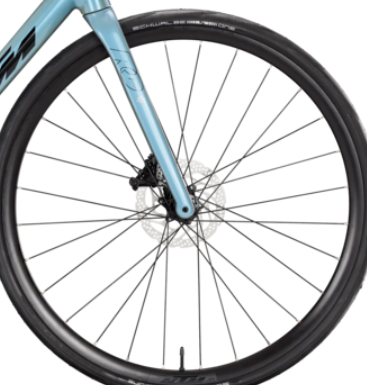

Wheels |
Remerx R-Disc 700c |
|
Tires |
Schwalbe One Performance RaceGuard 30-622 |
|

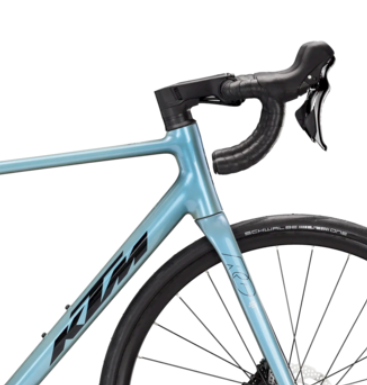

Handlebar |
KTM COMP Road |
|
Saddle |
Selle Royal SRX |
|
Weight |
9.9 kg (size M) |
|
Permissible Total Weight |
117 kg |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
