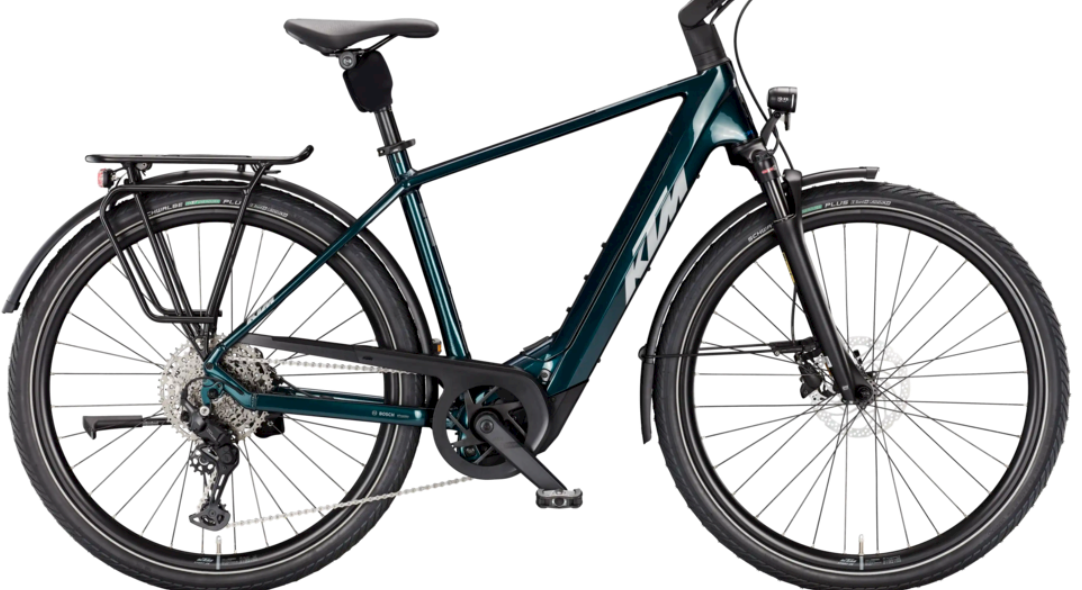

2026 KTM Macina Tour PX 810 – 800 Wh Bosch Performance Line PX Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Tour PX 810 |
|
Application |
Travel, Commute, Long-Distance Trekking |
|
Vehicle Category |
Premium Trekking E-Bike (Bosch PX) |
|
Starting Price (2025) |
€3,999 |
|
Color Options |
Dark Sea (Grey + Blue) |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Wheels |
28″ / 700c |
|
Travel |
63 mm front |
|
Frame |
Macina Trekking Onroad Alloy6061 | PT800 Bosch BDU34 |
|
Fork |
SR Suntour NCX32-D Air LO 63 mm |
|
Rear Derailleur |
Shimano CUES U6000-11/10 LG shadow+ |
|
Shifter |
Shimano CUES U6000-11 |
|
Crank |
KTM E-COMP2 ISIS 170 mm |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
Shimano LG500 |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE PX BDU3470 – 90 Nm / 700 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Shimano MT200 2-piston | RT30 180/160 mm rotors |
|
Wheels |
Ambrosio Sport 25 28" |
|
Tires |
Schwalbe Energizer Plus Performance GreenGuard Reflex 50-622 |
|
Lights |
F: B&M IQ-XS 80 Lux | R: B&M Toplight 2C |
|
Carrier |
KTM tour (Snap-it 2.0 + MonkeyLoad + child seat compatible) |
|
Fenders |
SKS A55K PET Trek 28" full coverage |
|
Seatpost |
SR Suntour SP25-NCX parallelogram suspension 30.9 mm |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight |
27.9 kg |
|
Permissible Total Weight |
146 kg |
