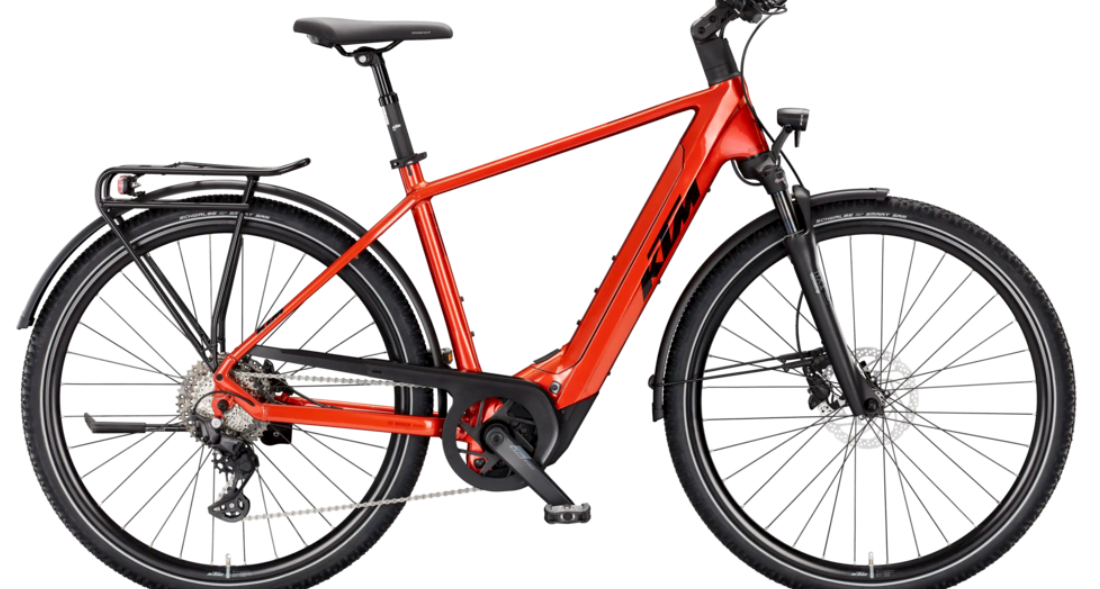

2026 KTM Macina Tour CX 830 – Ultimate Entry-Level Cross/Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Tour CX 830 1×10 Shimano Deore LinkGlide |
|
Vehicle Category |
Entry-Level Cross / Light-Trekking E-Bike (full equipment) |
|
Application |
Daily commuting, mixed terrain, leisure – unbeatable entry price |
|
Price (2025) |
€3,699 SRP |
|
Color |
Burnt Orange (Black) |
|
Sizes |
S | M | L | XL (Men / Women / Unisex frames) |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy 6061 – low-step comfort |
|
Fork |
Suntour NX1 coil LO 63 mm |
|
Seatpost |
KTM Line Elegance suspension 30.9 mm |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch PURION 200 + Remote |
|
Drivetrain |
Shimano Deore M5130-10 LinkGlide Shadow+ |
|
Cassette |
Shimano LG600-10 11-43T |
|
Brakes |
Shimano MT200 2-piston hydraulic |
|
Rotors |
Shimano RT30 CL 180 mm / EM300 CL 160 mm |
|
Wheels |
Ryde Rival Sport 700c |
|
Tires |
Schwalbe Smart Sam SBC K-Guard Reflex 47-622 |
|
Lighting |
B&M Myc 50 Lux front + B&M Toplight 2C rear |
|
Extras |
Full fenders, carrier, adjustable stem, suspension seatpost, chainguard |
|
Weight |
26.4 kg (fully equipped) |
|
Permissible Total Weight |
144 kg |
