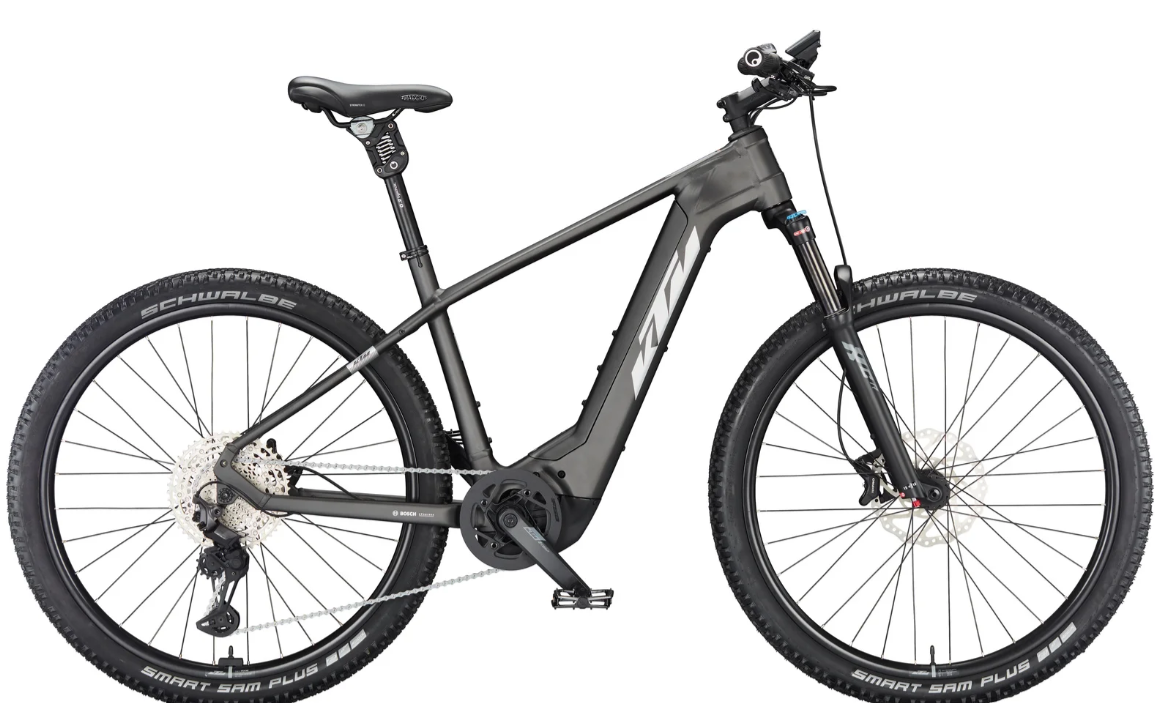

2026 KTM Macina Team XL – High-Payload 29″ Hardtail E-MTB (178 kg)
Specifications
|
Specification |
Details |
|
Model |
Macina Team XL |
|
Vehicle Category |
High-Payload Hardtail E-MTB |
|
Starting Price (2025) |
€4,799 |
|
Color Options |
Machine Grey Matt |
|
Sizes |
M | L | XL | XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina MTB 29" Alloy6061 reinforced | PT750 Bosch Gen.4 |
|
Fork |
SR Suntour XCR 34 Air LOR 29" 120 mm 15x110 taper |
|
Rear Derailleur |
Shimano Deore XT M8130-11 LG shadow+ |
|
Shifter |
Shimano Deore XT M8130-11 LG |
|
Crank |
KTM E-COMP ISIS 170 mm | FSA Megatooth 38T + chainguard |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
KMC e11 Sport EPT e-bike |
|
Wheels |
29″ |
|
Travel |
120 mm front |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 300 TFT Display |
|
Brakes |
Tektro HD-M535 4-piston | TR-17 203/180 mm rotors |
|
Wheels |
Ryde Andra29 reinforced rims on DT Swiss 370 hubs |
|
Tires |
Schwalbe Smart Sam Plus Performance DD GreenGuard 57-622 (front & rear) |
|
Seatpost |
bySchulz G.2 ST parallelogram suspension seatpost 30.9 mm |
|
Weight |
26.70 kg |
|
Permissible Total Weight |
178 kg |
