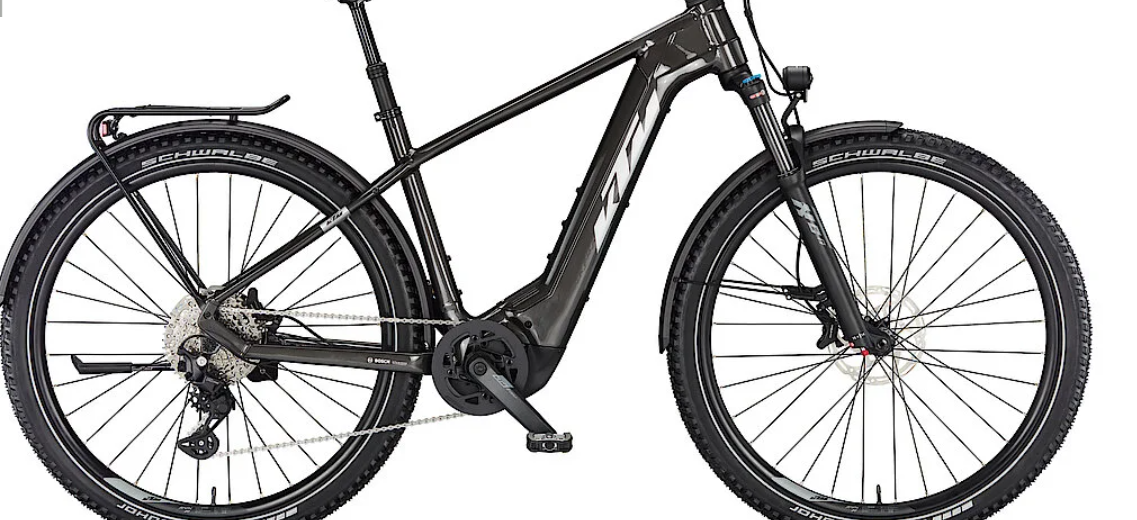

2026 KTM Macina Team LFC – Fully Equipped 29″ Hardtail SUV E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Team LFC |
|
Vehicle Category |
Hardtail SUV E-Bike (LFC = Light-Fender-Carrier) |
|
Wheels |
29″ |
|
Starting Price (2025) |
€4,599 |
|
Color Options |
Machine Grey (Silver + Blue) |
|
Sizes |
M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina MTB 29" Alloy6061 | PT750 Bosch Gen.4 |
|
Fork |
SR Suntour XCR 34 Air LOR 29" 120 mm 15x110 taper |
|
Rear Derailleur |
Shimano Deore M5130-10 LG shadow+ |
|
Shifter |
Shimano Deore M5130-10 LG |
|
Crank |
KTM E-COMP ISIS 170 mm | FSA Megatooth 38T + chainguard |
|
Cassette |
Shimano LG400-10 11-43T |
|
Chain |
Shimano LG500 |
|
Travel |
120 mm front |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 300 TFT Display |
|
Brakes |
Tektro HD-M535 4-piston | TR-45 180 mm rotors |
|
Wheels |
Ryde Rival30 29" on Shimano hubs |
|
Tires |
Schwalbe Johnny Watts Performance DD RaceGuard 60-622 (front & rear) |
|
Lights |
F: Litemove SE-150 150 Lux | R: B&M Xeltec integrated |
|
Carrier |
Racktime light (Snap-it 2.0) |
|
Fenders |
Racktime Alu 72 mm full coverage |
|
Kickstand |
KTM 28" adjustable |
|
Weight (fully equipped) |
27.80 kg |
|
Permissible Total Weight |
147 kg |
