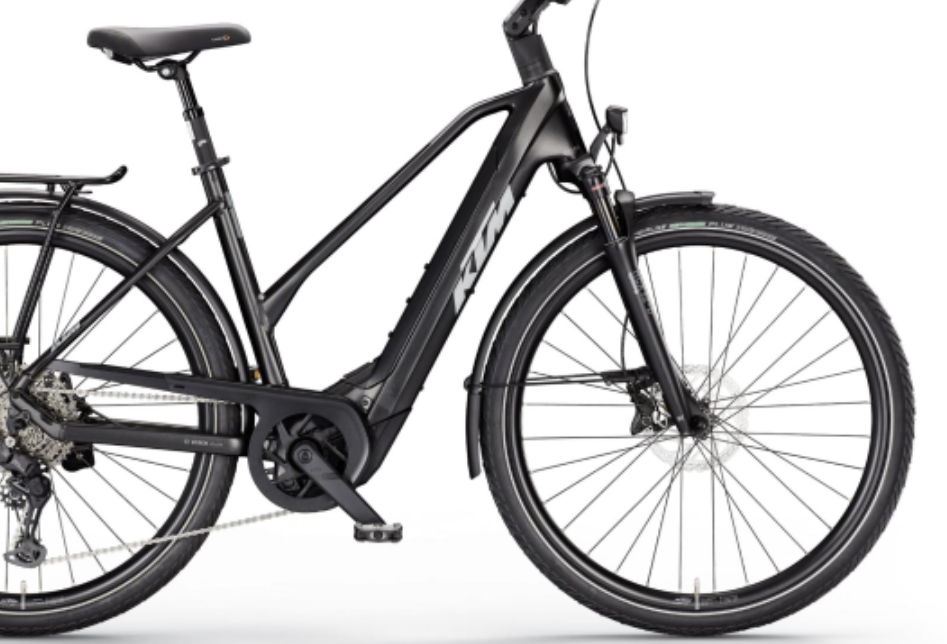

2026 KTM Macina Style 840 – Entry-Level 800 Wh Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Style 840 |
|
Application |
Travel, Commute, Everyday Trekking |
|
Vehicle Category |
Entry-Level Trekking E-Bike |
|
Starting Price (2025) |
€3,799 |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Wheels |
28″ / 700c |
|
Travel |
63 mm front |
|

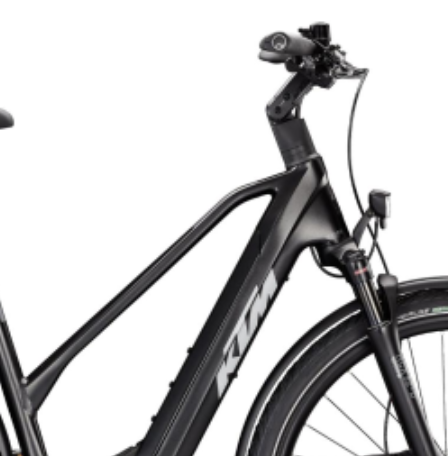

Frame |
Macina Trekking Onroad Alloy6061 | PT800 Bosch BDU38 |
|

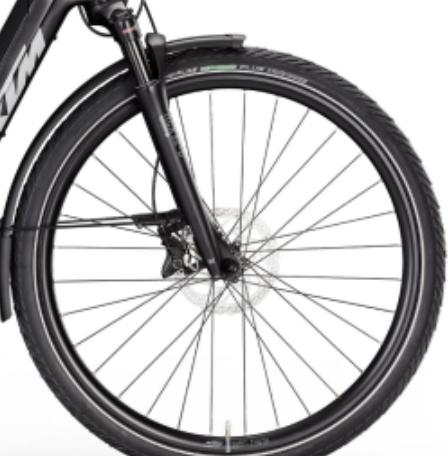

Fork |
SR Suntour NCX32-D coil LO 63 mm |
|

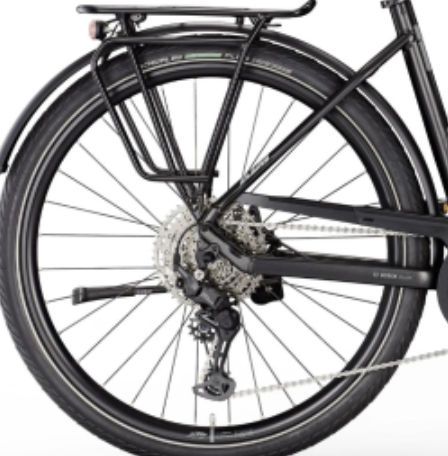

Rear Derailleur |
Shimano CUES U6000-11/10 LG shadow+ |
|
Shifter |
Shimano CUES U6000-10 |
|
Crank |
KTM E-COMP2 ISIS 170 mm |
|
Cassette |
Shimano LG400-10 11-48T |
|
Chain |
Shimano LG500 |
Components & Features
|
Specification |
Details |
|

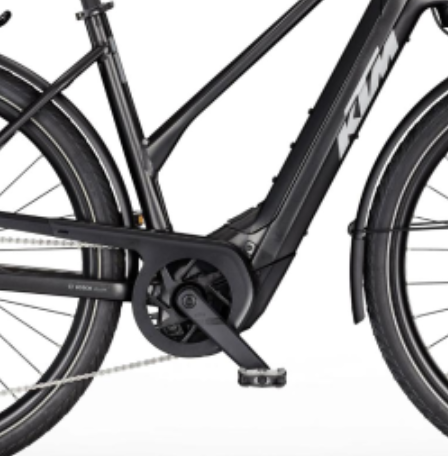

Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch PURION 200 Display & Remote |
|
Brakes |
Shimano MT200 2-piston | RT30 180 mm / EM300 160 mm rotors |
|
Wheels |
Ambrosio Sport 25 28" |
|
Tires |
Schwalbe Energizer Active Plus Reflex 50-622 (front & rear) |
|
Lights |
F: Litemove RLX-100 100 Lux | R: B&M Toplight 2C |
|
Carrier |
KTM tour (Snap-it 1.0) |
|
Fenders |
SKS A55K PET Trek 28" full coverage |
|
Seatpost |
KTM Line Elegance suspension 30.9 mm |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight |
28.1 kg |
|
Permissible Total Weight |
146 kg |
