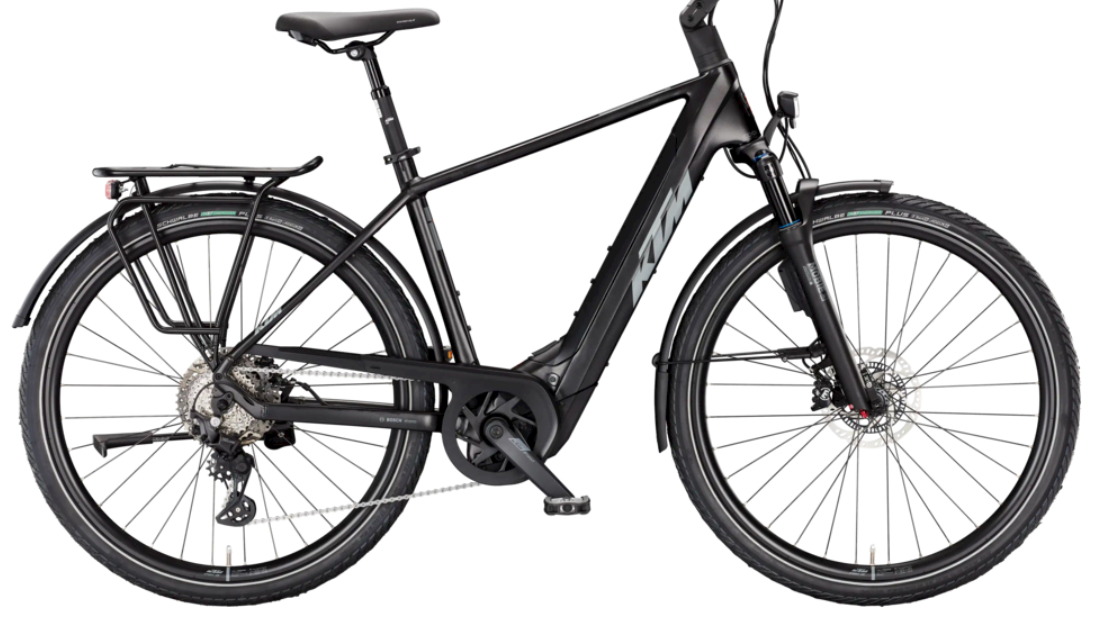

2026 KTM Macina Style 830 ABS – Bosch eBike ABS Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Style 830 ABS |
|
Application |
Travel, Commute, Long-Distance Trekking |
|
Vehicle Category |
Trekking E-Bike with Bosch eBike ABS |
|
Starting Price (2025) |
€4,499 |
|
Color Options |
Diamond Black Matt (Grey + Orange) |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Wheels |
28″ / 700c |
|
Travel |
80 mm front |
|
Frame |
Macina Trekking Onroad Alloy6061 | PT800 Bosch BDU38 |
|
Fork |
SR Suntour Mobie34 Air 29" 2CR 80 mm 15QLC |
|
Rear Derailleur |
Shimano Deore M5130-10 LG shadow+ |
|
Shifter |
Shimano Deore M5130-10 LG |
|
Crank |
KTM E-COMP ISIS 170 mm |
|
Cassette |
Shimano LG600-10 11-43T |
|
Chain |
KMC e500 LG e-bike |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch PURION 200 Display & Remote |
|
Brakes |
Magura MTC ABS 4-piston | MDR-C CL 180 mm rotors |
|
Wheels |
Ambrosio Sport 25 28" |
|
Tires |
Schwalbe Energizer Plus Performance GreenGuard Reflex 50-622 |
|
Lights |
F: B&M Briq-S 60 Lux | R: B&M Toplight 2C |
|
Carrier |
KTM tour (Snap-it 2.0 + MonkeyLoad + child seat compatible) |
|
Fenders |
SKS A55K PET Trek 28" full coverage |
|
Seatpost |
KTM Line Elegance suspension 30.9 mm |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight |
28.6 kg |
|
Permissible Total Weight |
147 kg |
