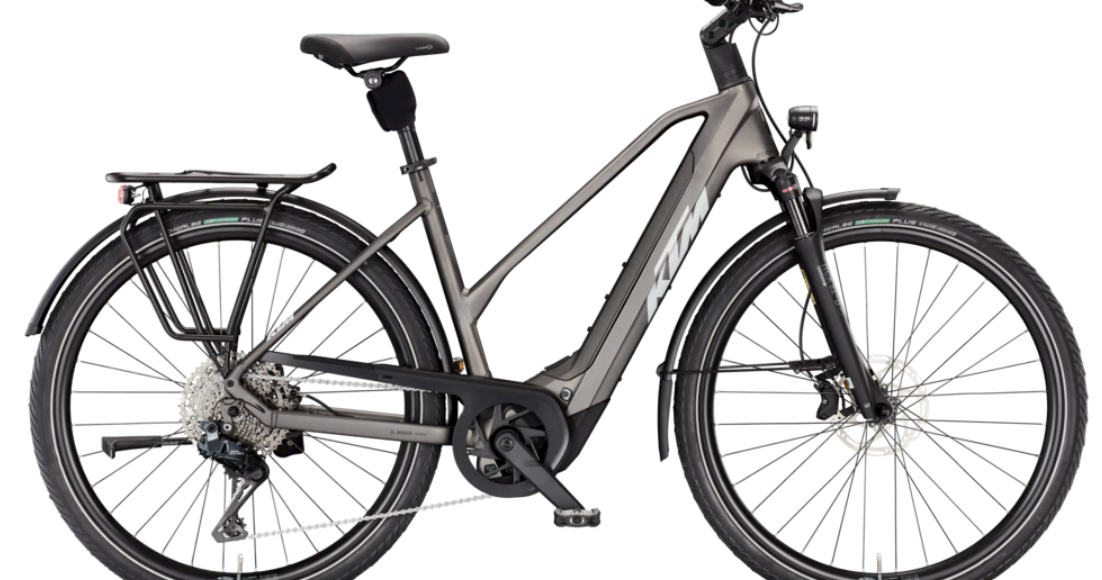

2026 KTM Macina Style 820 XL DI2 – High-Payload Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Style 820 XL DI2 |
|
Application |
Travel, Commute, Long-Distance Trekking |
|
Vehicle Category |
High-Payload Trekking E-Bike (174 kg total) |
|
Starting Price (2025) |
€4,899 |
|
Color Options |
Diamond Black Matt (Grey) |
|
Sizes |
S | M | L | XL | XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Wheels |
28″ / 29″ |
|
Travel |
63 mm front |
|
Frame |
Macina Trekking Onroad Alloy6061 reinforced | PT800 Bosch BDU38 |
|
Fork |
SR Suntour NCX32-D coil LO 63 mm (Heavy Duty) |
|

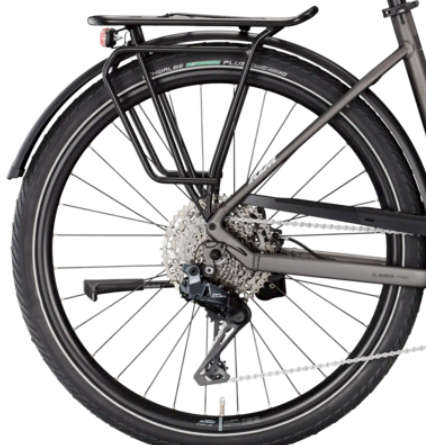

Rear Derailleur |
Shimano CUES Di2 U8050-11 SGS shadow |
|
Shifter |
Shimano CUES Di2 EN605 Switch |
|
Crank |
KTM E-COMP2 ISIS 170 mm |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
KMC e11 Sport EPT e-bike |
Components & Features
|
Specification |
Details |
|
Motor |

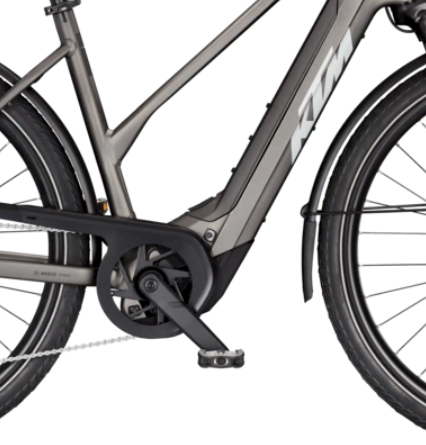

Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Tektro TKD-139 / HD-E730 4-piston | TR-45 180 mm rotors |
|
Wheels |
Ryde Andra29 reinforced 36H |
|
Tires |
Schwalbe Marathon E-Plus Performance DualGuard Reflex 50-622 |
|
Lights |
F: B&M IQ-XS 100–150 Lux HighBeam | R: B&M Toplight 2C |
|
Carrier |
KTM tour (Snap-it 2.0 + MonkeyLoad + child seat compatible) |
|
Fenders |
SKS A55K PET Trek 28" full coverage |
|
Seatpost |
bySchulz G.2 ST parallelogram suspension 30.9 mm |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight |
28.7 kg |
|
Permissible Total Weight |
174 kg |
