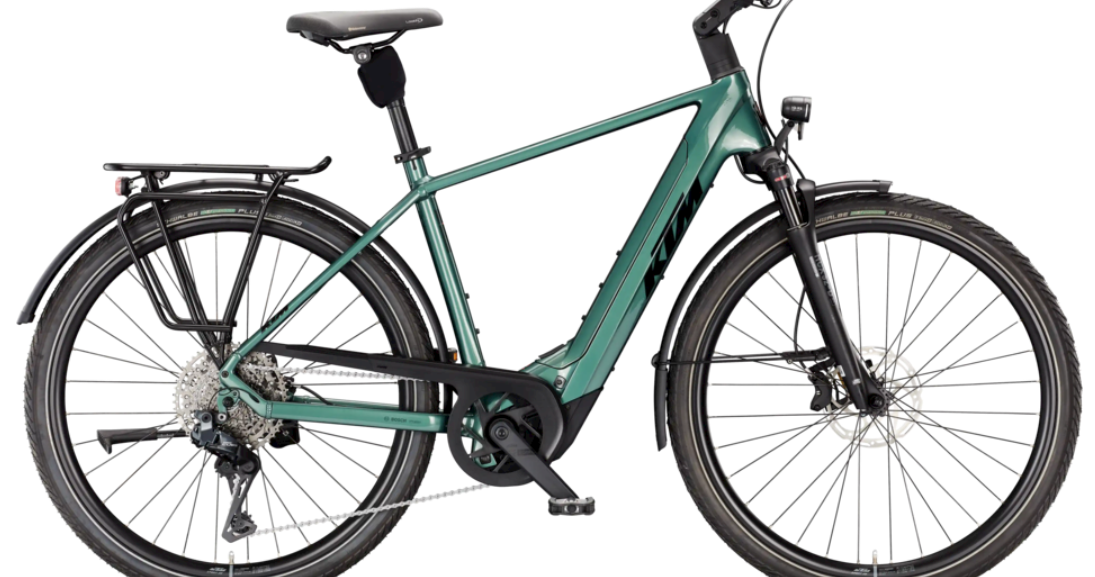

2026 KTM Macina Style 820 DI2 – Electronic Mid-Range Comfort Trekking
Specifications
|
Specification |
Details |
|
Model |
Macina Style 820 DI2 1×11 Shimano CUES DI2 |
|
Vehicle Category |
Premium Electronic Comfort Trekking E-Bike (full equipment) |
|
Application |
Long-distance touring, commuting, leisure – fully electronic shifting |
|
Price (2025) |
€4,599 SRP |
|
Color |
Oxygen Green (Black + Orange) |
|
Sizes |
S | M | L | XL (Men / Women / Unisex frames) |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy 6061 – low-step comfort |
|
Fork |
Suntour NCX32-D Air LO 63 mm |
|
Seatpost |
Suntour SP25-NCX suspension 30.9 mm |
Components & Features
|
Specification |
Details |
|

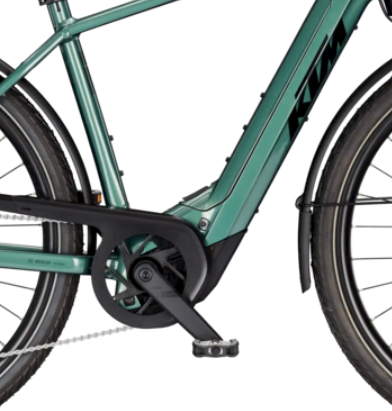

Motor |
Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch KIOX 500 TFT + LED Remote |
|
Drivetrain |
Shimano CUES Di2 U8050-11 electronic Shadow |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Tektro TKD-139 / HD-E730 4-piston hydraulic |
|
Rotors |
Tektro TR-45 180 mm / 160 mm |
|

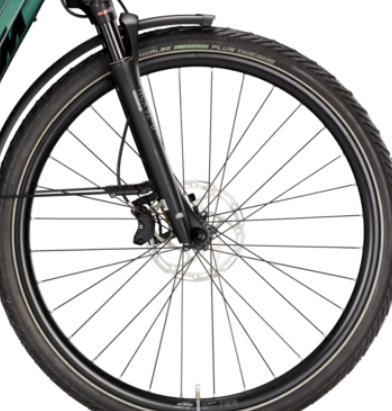

Wheels |
Ambrosio Sport 25 700c |
|
Tires |
Schwalbe Energizer Plus Performance GreenGuard Reflex 50-622 |
|
Lighting |
B&M IQ-XS 80 Lux front + B&M Toplight 2C rear |
|
Extras |
Full fenders, carrier (monkeyload/childseat ready), adjustable stem, suspension seatpost, chainguard |
|
Weight |
28.2 kg (fully equipped) |
|
Permissible Total Weight |
146 kg |
