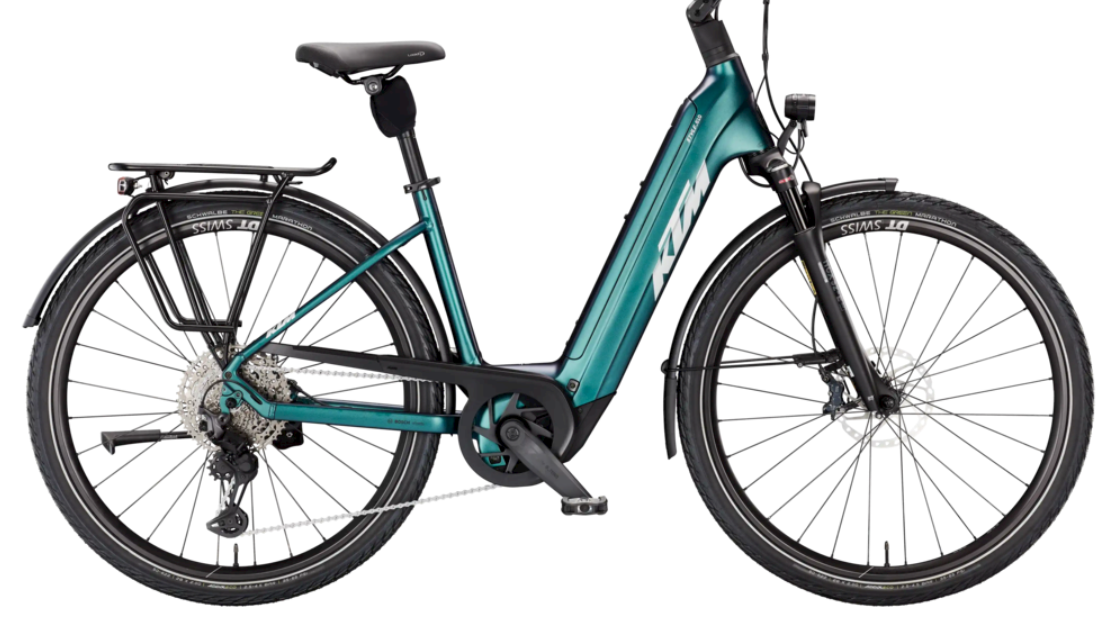

2026 KTM Macina Style 810 – Premium Comfort Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Style 810 1×11 Shimano Deore XT LinkGlide |
|
Vehicle Category |
Premium Comfort Trekking E-Bike (full equipment) |
|
Application |
Long-distance touring, commuting, leisure – maximum range & durability |
|
Price (2025) |
€4,699 SRP |
|
Color |
Green Purple Flip Matt |
|
Sizes |
S | M | L | XL (Men / Women / Unisex frames) |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy 6061 – low-step comfort |
|
Fork |
Suntour NCX32-E Air LO 63 mm |
|
Seatpost |
Suntour SP25-NCX suspension 30.9 mm |
Components & Features
|
Specification |
Details |
|

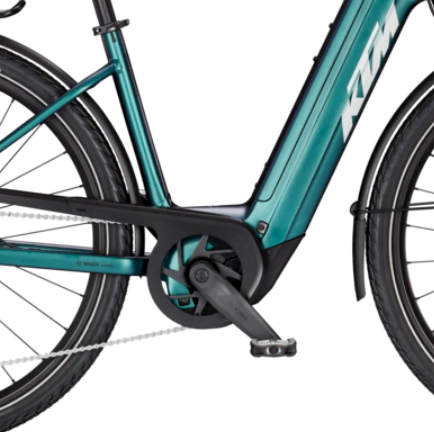

Motor |
Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch KIOX 500 TFT + LED Remote |
|

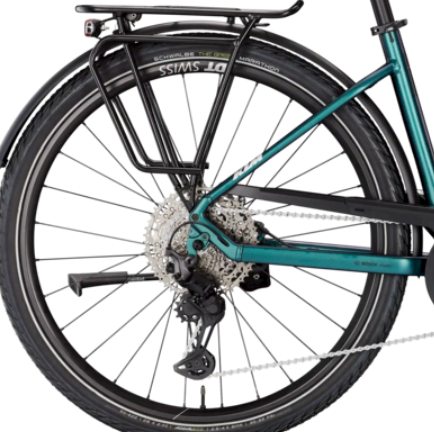

Drivetrain |
Shimano Deore XT M8130-11 LinkGlide Shadow+ |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Shimano CUES U8000 / U8020 4-piston |
|
Rotors |
Shimano RT64 CL 180 mm / EM600 CL 160 mm |
|

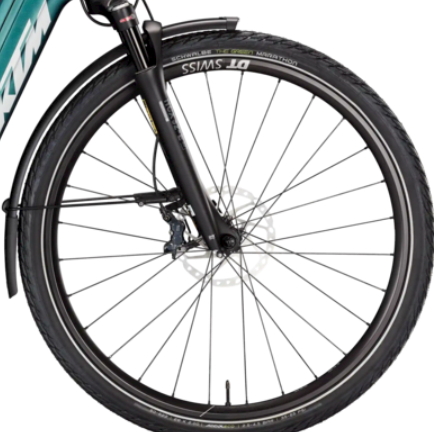

Wheels |
DT Swiss HU 1900 spline 700c tubeless-ready |
|
Tires |
Schwalbe Green Marathon Performance GreenGuard 50-622 |
|

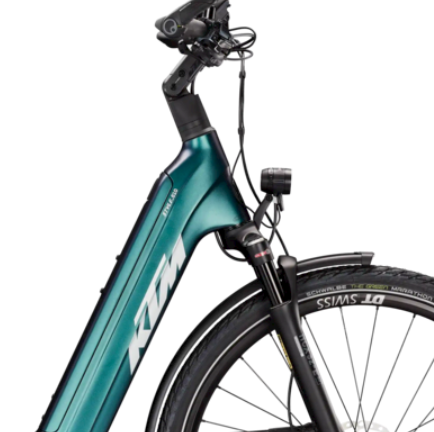

Lighting |
B&M IQ-XM HighBeam 120-170 Lux front + B&M Dart brex rear |
|
Extras |
Full fenders, carrier (monkeyload/childseat ready), adjustable stem, suspension seatpost, chainguard |
|
Weight |
27.3 kg (fully equipped) |
|
Permissible Total Weight |
145 kg |
