2023 KTM Macina Lycan 772 – High-Value All-Mountain E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Lycan 772 |
|
Vehicle Category |
All-Mountain / Trail E-MTB |
|
Travel |
140 mm front & rear |
|
Starting Price (2025) |
€5,299 |
|
Color Options |
Starlight Silver + Matt Black |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina Lycan 27.5" Alloy6061 SLL-E 140 mm | PT750 Bosch Gen.4 |
|
Fork |
SR Suntour XCR 34 Air LOR 27.5" 140 mm 15x110 taper |
|

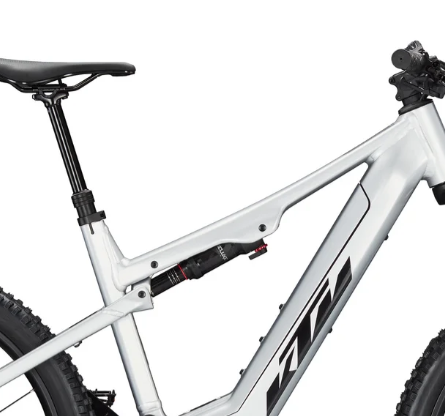

Rear Shock |
RockShox Deluxe Select+ 230×62.5 mm |
|

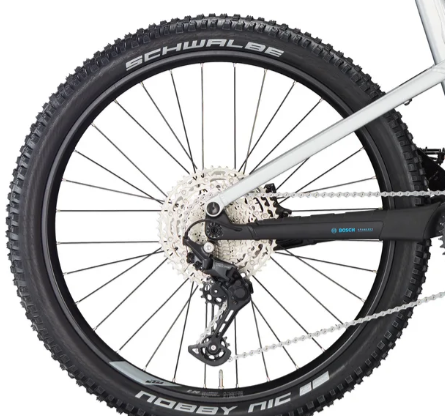

Rear Derailleur |
Shimano Deore M5100-11 SGS shadow+ |
|
Shifter |
Shimano Deore M5100-11 |
|

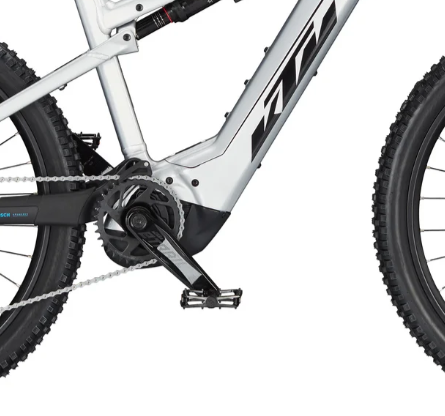

Crank |
KTM E-TRAIL ISIS 170 mm | FSA steel 36T Direct Mount |
|
Cassette |
Shimano Deore M5100-11 11-51T |
|
Chain |
KMC e11 Sport EPT e-bike |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote SMART SYSTEM |
|
Brakes |
Tektro HD-M750 / E730 4-piston | TR-45 203/180 mm rotors |
|
Wheels |
27.5" Ambrosio E30 Trail rims on Shimano MT410B / MT400B hubs |
|

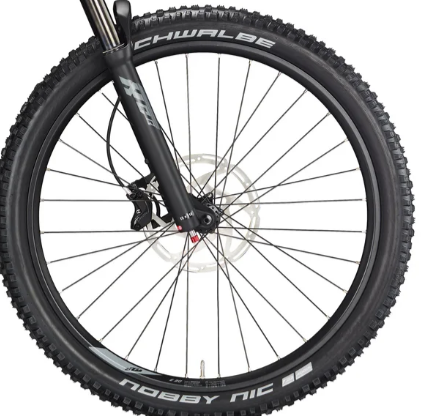

Tires |
Schwalbe Nobby Nic Performance Folding 65-584 (front & rear) |
|
Handlebar |
KTM COMP II Trail35 riser15 760 mm |
|
Stem |
KTM TEAM II Trail35 |
|
Seatpost |
KTM COMP II dropper internal |
|
Saddle |
KTM Line Sport |
|
Grips |
KTM Comp Lock |
|
Weight |
26.60 kg |
|
Permissible Total Weight |
146 kg |
