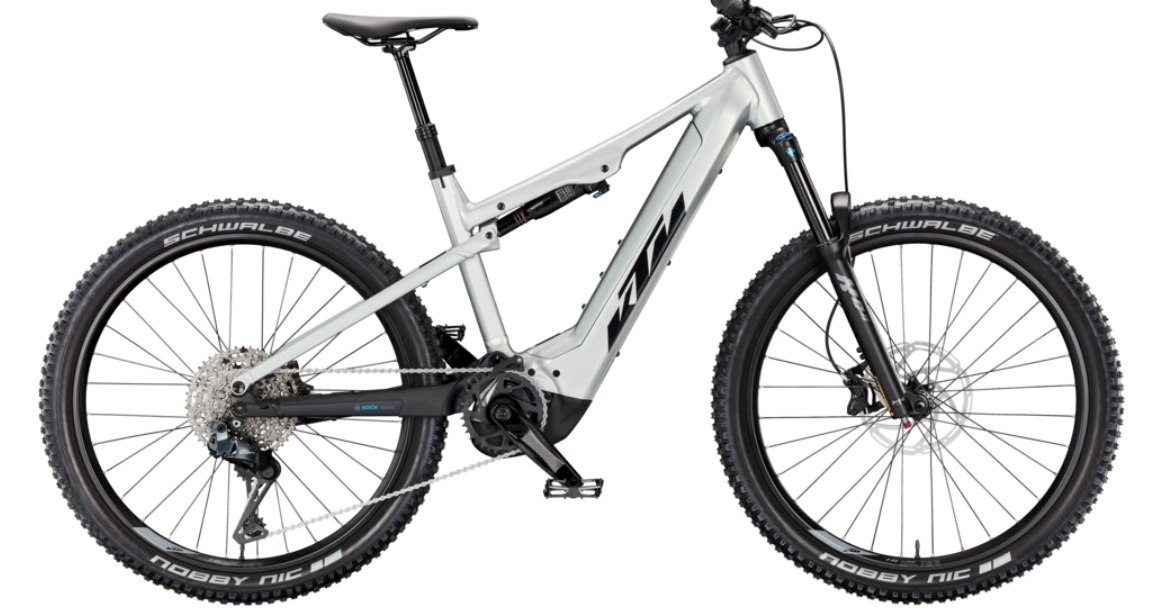

2026 KTM Macina Lycan 772 DI2 – Wireless CUES DI2 All-Mountain E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Lycan 772 DI2 |
|
Vehicle Category |
All-Mountain / Trail E-MTB |
|
Travel |
140 mm front & rear |
|
Starting Price (2025) |
€4,499 |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|

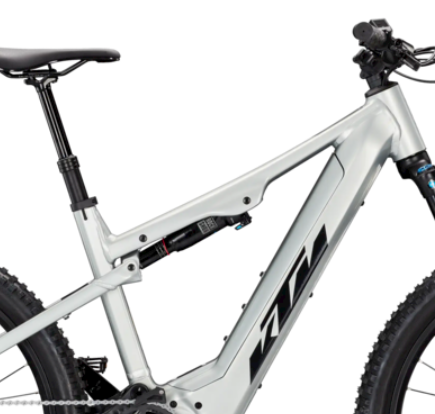

Frame |
Macina Lycan 27.5" Alloy6061 SLL-E 140 mm | PT750 Bosch BDU37 |
|

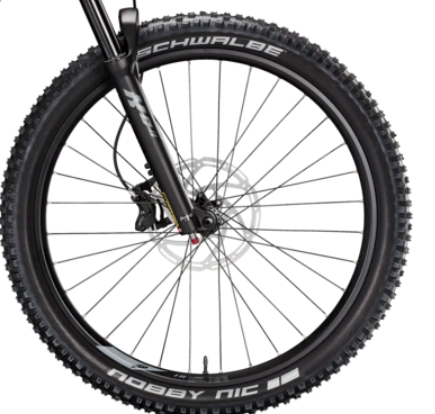

Fork |
SR Suntour XCR34 Air 2CR 27.5" 140 mm 15AH2 |
|
Rear Shock |
RockShox Deluxe Select+ 230×62.5 mm |
|

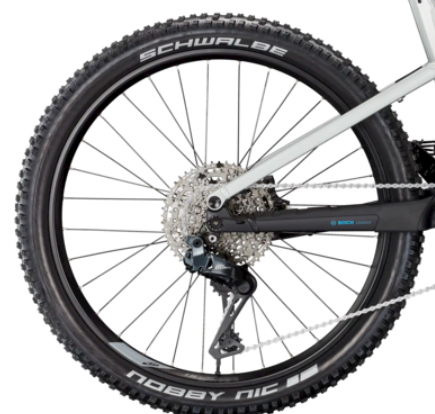

Rear Derailleur |
Shimano CUES Di2 U8050-11 SGS shadow |
|
Shifter |
Shimano CUES Di2 EN605 Switch (wireless) |
|
Crank |
KTM E-TRAIL ISIS 170 mm |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
KMC e11 Sport EPT e-bike |
Components & Features
|
Specification |
Details |
|

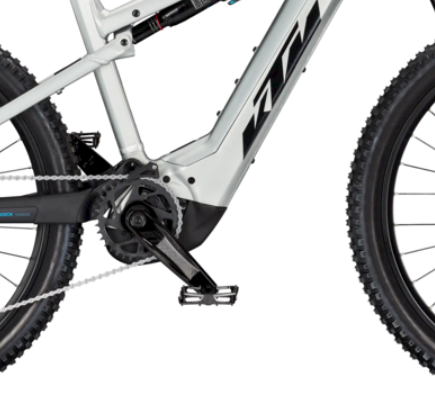

Motor |
Bosch PERFORMANCE CX BDU3740 – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh horizontal (PTTL) |
|
Display |
Bosch PURION 200 Display & Remote |
|
Brakes |
Tektro HD-M750 / E730 4-piston | TR-45 203/180 mm rotors |
|
Wheels |
Ambrosio E30 Trail front / E35 Trail rear 27.5" |
|
Tires |
Schwalbe Nobby Nic Performance Folding 65-584 (front & rear) |
|
Handlebar |
KTM COMP Trail35 riser15 760 mm |
|
Stem |
KTM TEAM Trail35 |
|
Seatpost |
KTM COMP dropper internal 120 mm |
|
Saddle |
KTM Line Sport |
|
Grips |
KTM Comp Lock |
|
Weight |
26.9 kg |
|
Permissible Total Weight |
145 kg |
