2023 KTM Macina Lycan 771 – All-Mountain E-MTB with Deore XT 12-Speed

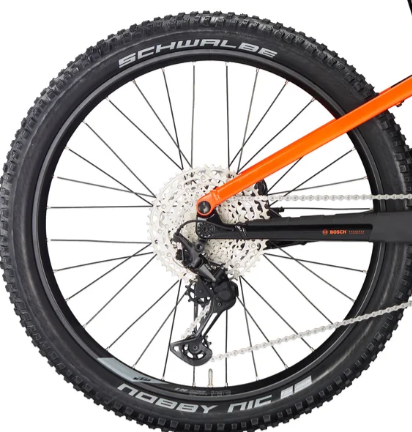

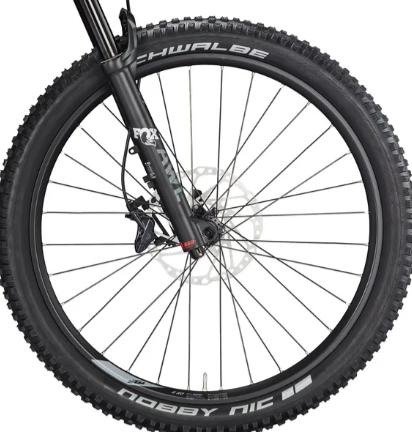

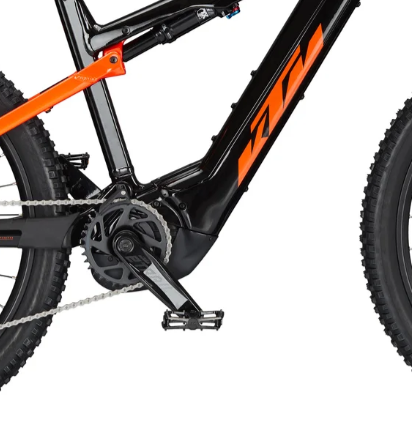

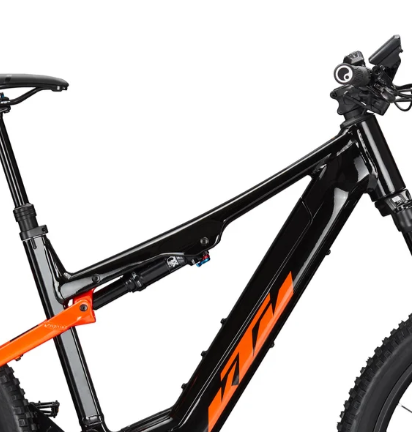

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	Macina Lycan 771
Vehicle Category	All-Mountain / Trail E-MTB
Travel	140 mm front & rear
Starting Price (2025)	€5,799
Color Options	Flaming Black (Space Orange)
Sizes	S \| M \| L \| XL

Frame & Drivetrain

Specification	Details
Frame	Macina Lycan 27.5" Alloy6061 SLL-E 140 mm \| PT750 Bosch Gen.4
Fork	FOX 34 Float AWL 27.5" e-bike 140 mm 15x110
Rear Shock	FOX Float DPS Performance 230×62.5 mm
Rear Derailleur	Shimano Deore XT M8100-12 SGS shadow+
Shifter	Shimano Deore M6100-12
Crank	KTM E-TRAIL ISIS 170 mm \| FSA Megatooth 36T Direct Mount
Cassette	Shimano Deore M6100-12 10-51T
Chain	Shimano M6100-12

Components & Features

Specification	Details
Motor	Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm
Battery	Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal (PTTL)
Display	Bosch LED Remote + KIOX 300 TFT Display
Brakes	Shimano Deore M6100 / M6120 4-piston \| RT64 CL 203/180 mm
Wheels	27.5" Ambrosio E30 Trail rims on Shimano MT410B hubs
Tires	Schwalbe Nobby Nic Performance Folding 65-584 (front & rear)
Handlebar	KTM COMP II Trail35 riser15 760 mm
Stem	KTM TEAM II Trail35
Seatpost	KTM COMP II dropper internal
Saddle	Selle San Marco Ground Short Open Fit Narrow
Grips	Ergon GA20
Weight	26.60 kg
Permissible Total Weight	146 kg

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
