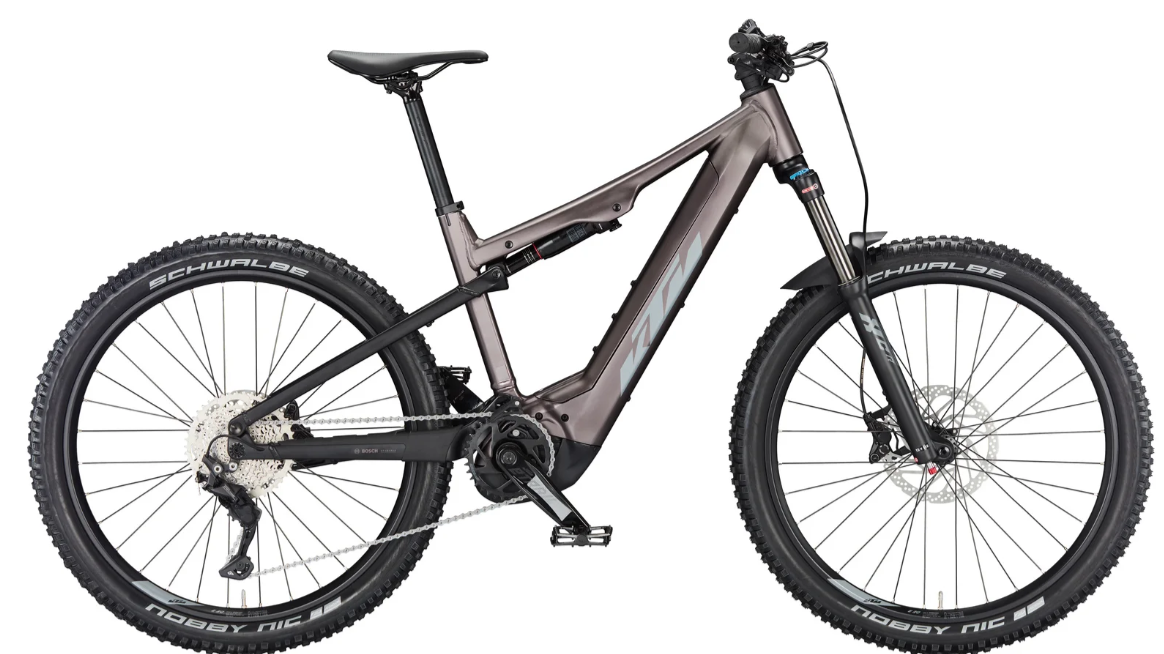

2023 KTM Macina Lycan 571 Glorious –Entry-Level All-Mountain E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Lycan 571 Glorious |
|
Series |
Glorious – KTM Women’s Line |
|
Vehicle Category |
All-Mountain / Trail E-MTB |
|
Travel |
140 mm front & rear |
|
Starting Price (2025) |
€3,499 |
|
Color Options |
Elderberry + Black Matt (Grey) |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|

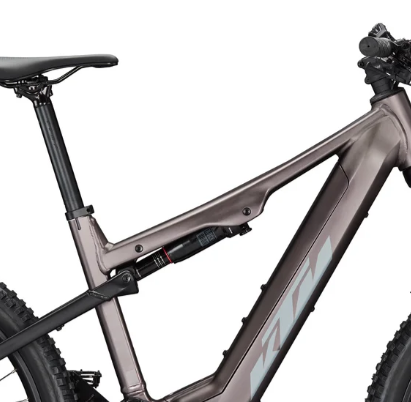

Frame |
Macina Lycan 27.5" Alloy6061 SLL-E 140 mm | PT750 Bosch Gen.4 |
|

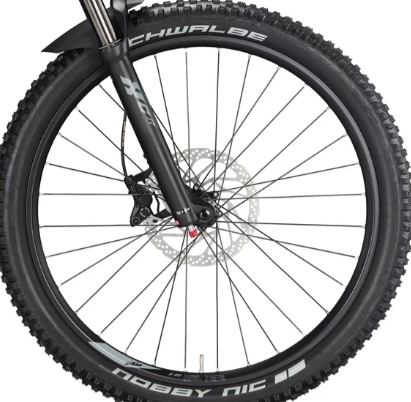

Fork |
SR Suntour XCR 34 Air LOR 27.5" 140 mm 15x110 taper |
|
Rear Shock |
RockShox Deluxe Select 230×62.5 mm |
|

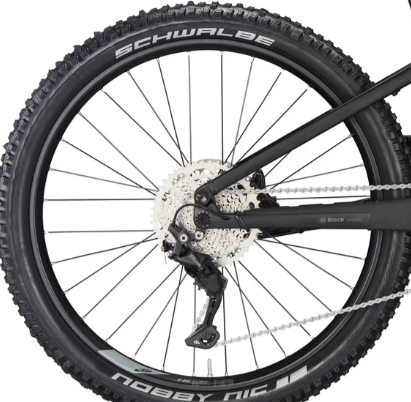

Rear Derailleur |
Shimano Deore M5120-11/10 SGS shadow+ |
|
Shifter |
Shimano Deore M4100-10 |
|
Crank |
KTM E-TRAIL ISIS 170 mm | FSA steel 36T Direct Mount |
|
Cassette |
Shimano Deore M4100-10 11-46T |
|
Chain |
KMC e10 EPT e-bike |
Components & Features
|
Specification |
Details |
|

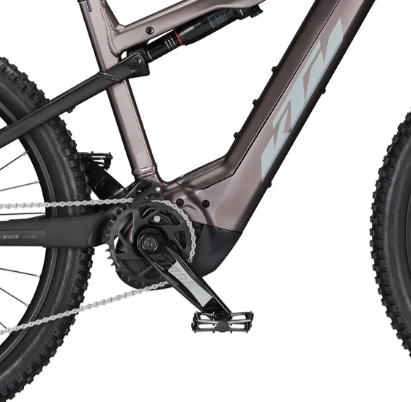

Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|
Battery |
Bosch PowerTUBE 500 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote SMART SYSTEM |
|
Brakes |
Shimano MT401 / MT420 4-piston | RT30 CL 203/180 mm |
|
Wheels |
27.5" Ambrosio E30 Trail on Shimano hubs |
|
Tires |
Schwalbe Nobby Nic Performance Folding 65-584 (front & rear) |
|
Seatpost |
KTM COMP II rigid 30.9 mm (no dropper) |
|
Weight |
24.70 kg |
|
Permissible Total Weight |
144 kg |
