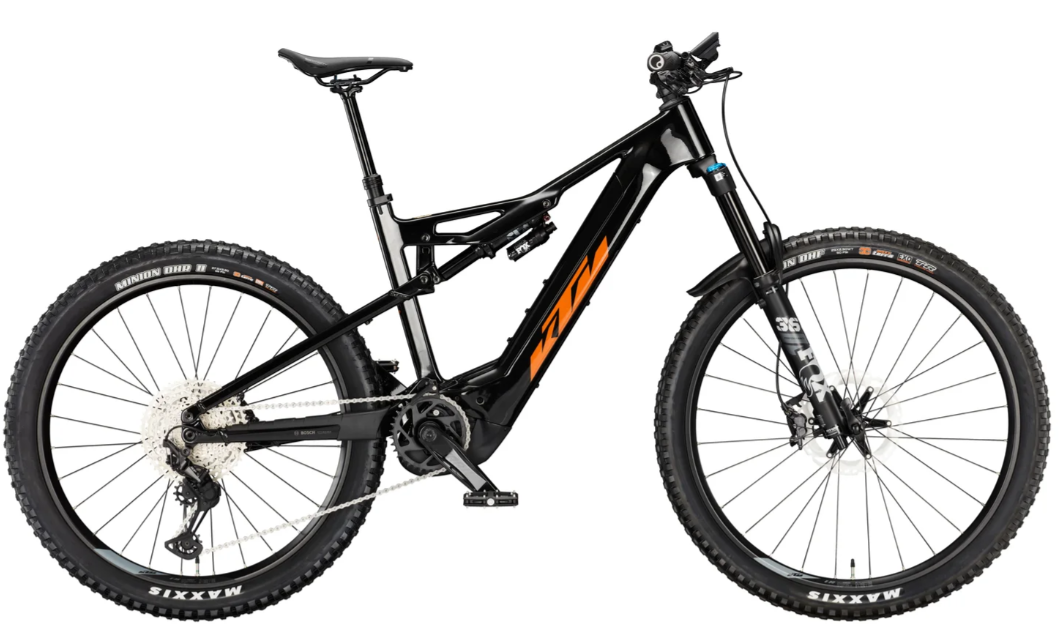

2024 KTM Macina Kapoho LTD64 – Full Suspension E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Kapoho LTD64 Shimano Deore XT 12 + Bosch PT-CX7K4 |
|
Vehicle Category |
Full Suspension Electric Enduro/All-Mountain MTB |
|
Application |
Enduro, aggressive all-mountain, big mountain adventures |
|
Color |
Flaming Black (Orange) |
|
Sizes |
M | L | XL |
Frame & Suspension
|
Specification |
Details |
|

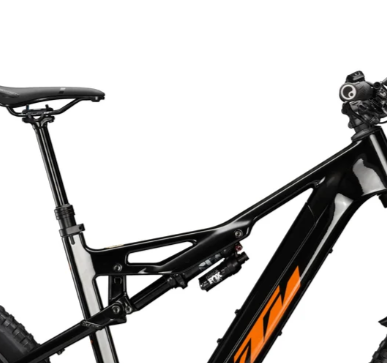

Frame |
Macina Kapoho Dimmix Performance Carbon SLL-LTE 160 mm, UDH |
|

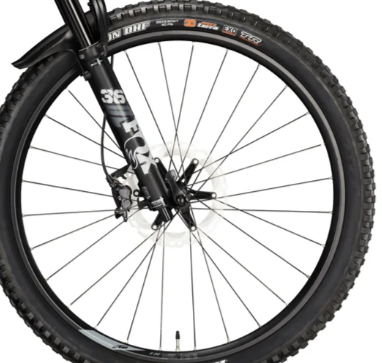

Fork |
FOX 36 Float Performance e-bike 160 mm |
|
Shock |
FOX Float X Performance 2-Pos 250×70 mm |
|
Travel |
160 mm front / 160 mm rear |
|
Wheel Setup |
DiMMiX – 29" front / 27.5" PLUS rear |
Components & Features
|
Specification |
Details |
|

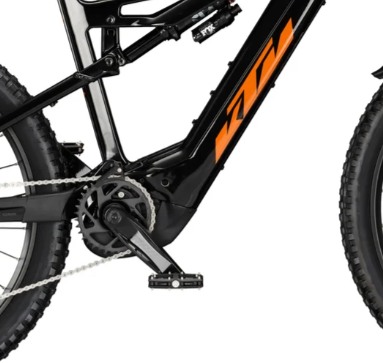

Motor |
Bosch Performance Line CX Gen.4 Smart System – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch KIOX 300 TFT + LED Remote Smart System |
|

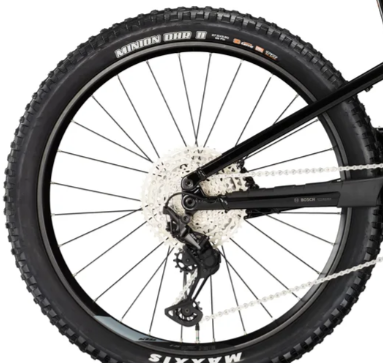

Drivetrain |
Shimano Deore XT M8100 12-speed |
|
Cassette |
Shimano Deore M6100-12 10-51T |
|
Brakes |
Shimano Deore XT M8100 / M8120 4-piston |
|
Rotors |
Shimano MT800 Freeza 203 mm / 180 mm |
|
Wheels |
KTM Line – Ambrosio E30/E35 Trail by DT Swiss (29" front / 27.5" PLUS rear) |
|
Tires |
F: Maxxis Minion DHF 3C-MaxxTerra 63-622 | R: Maxxis Minion DHR II 3C-MaxxTerra 70-584 |
|
Handlebar |
KTM Team II Trail35 riser25 800 mm |
|
Seatpost |
KTM Comp II internal dropper |
|
Saddle |
Selle San Marco Ground Short Open Fit Narrow |
|
Weight |
25.3 kg |
|
Permissible Total Weight |
144 kg |
