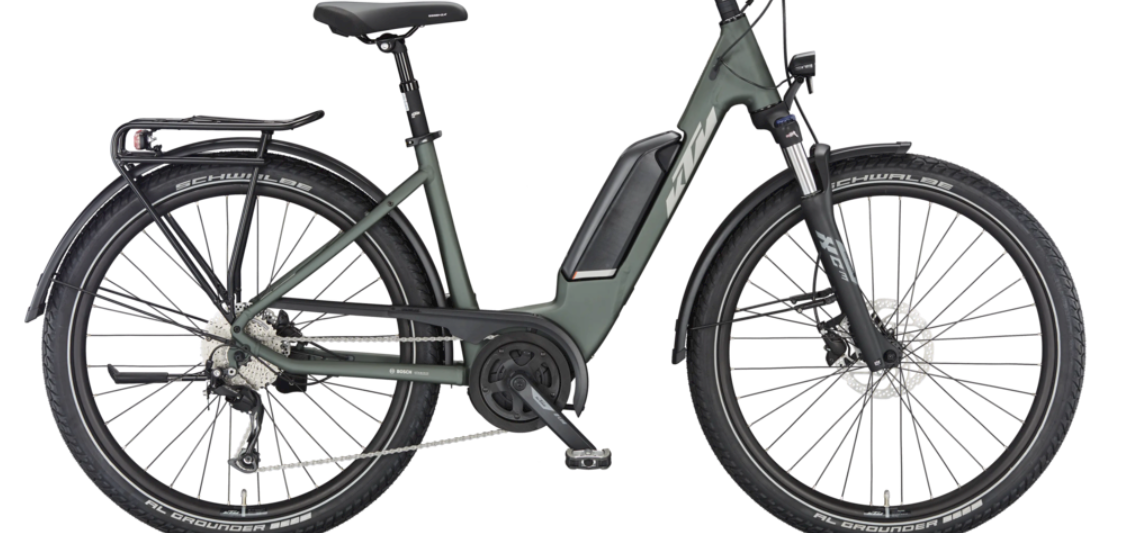

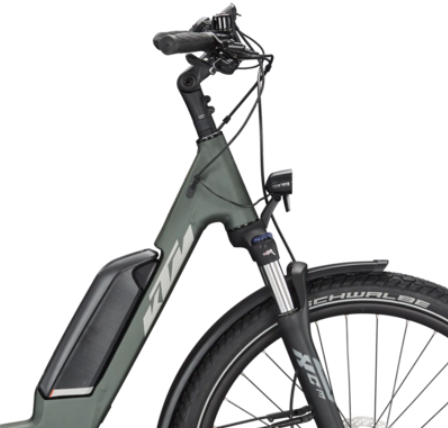

2026 KTM Macina Gran P510 – Ultimate Entry-Level Urban/Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Gran P510 Shimano Alivio 9 + Bosch SI-P5I2 |
|
Vehicle Category |
Entry-Level Urban / Light Trekking E-Bike (full equipment) |
|
Application |
City commuting, leisure rides, light touring – maximum value |
|
Price (2025) |
€3,399 SRP |
|
Color |
Moss Grey Matt |
|
Sizes |
XS | S | M | L |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Onroad 27.5" Alloy 6061 – true low-step |
|
Fork |
Suntour XCM 32 ATB coil NLO 80 mm |
|
Seatpost |
KTM Line Elegance suspension 30.9 mm |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch Performance Gen.3 – 65 Nm |
|
Battery |
Bosch PowerPACK 500 Wh (frame-mounted) |
|
Display |
Bosch INTUVIA LCD with Remote |
|
Drivetrain |
Shimano Alivio M3100 9-speed |
|
Cassette |
Shimano HG201-9 11-36T |
|
Brakes |
Shimano MT200 2-piston hydraulic |
|
Rotors |
Shimano RT30 CL 180 mm / 160 mm |
|
Wheels |
KTM Line – Ryde Rival30 27.5" |
|
Tires |
Schwalbe Al Grounder Performance Addix 60-584 |
|
Lighting |
B&M Lumotec DOPP 35 Lux front + B&M Toplight 2C rear |
|
Extras |
Full fenders, carrier, adjustable stem, suspension seatpost, chainguard |
|
Weight |
26.60 kg (fully equipped) |
|
Permissible Total Weight |
146 kg |
