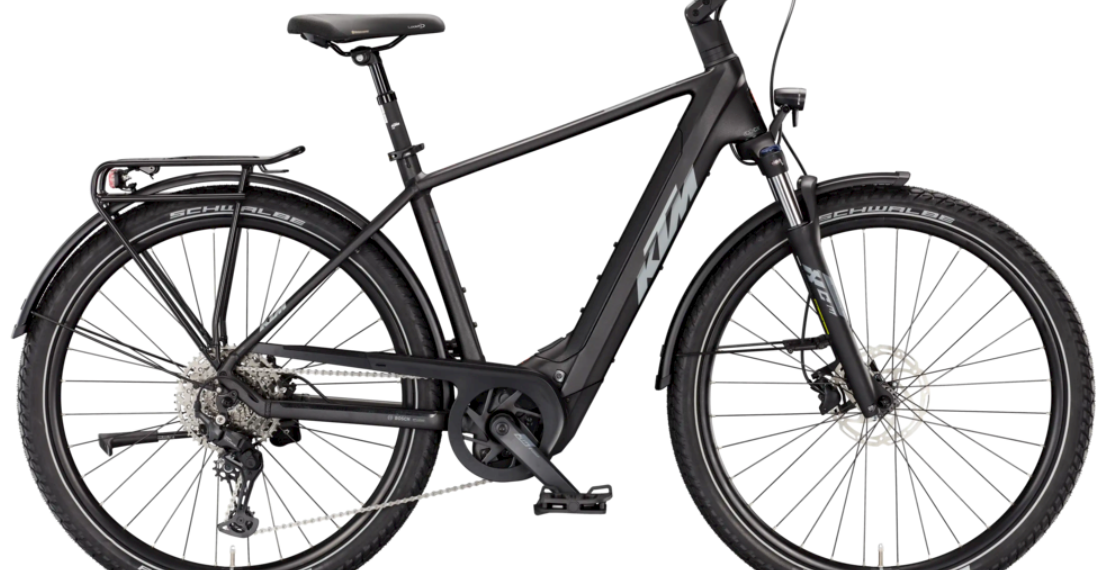

2026 KTM Macina Gran 820 – Best-Value Full-Featured Trekking E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Gran 820 1×10 Shimano CUES |
|
Vehicle Category |
Premium Comfort Trekking E-Bike (full equipment) |
|
Application |
Long-distance touring, commuting, leisure – unbeatable price/comfort ratio |
|
Price (2025) |
€3,999 SRP |
|
Color |
Diamond Black Matt (Grey + Orange) |
|
Sizes |
S | M | L | XL (Men / Women / Unisex frames) |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy 6061 – low-step comfort |
|
Fork |
Suntour XCM 32 ATB coil LO 80 mm |
|
Seatpost |
KTM COMP internal dropper 100 mm |
Components & Features
|
Specification |
Details |
|

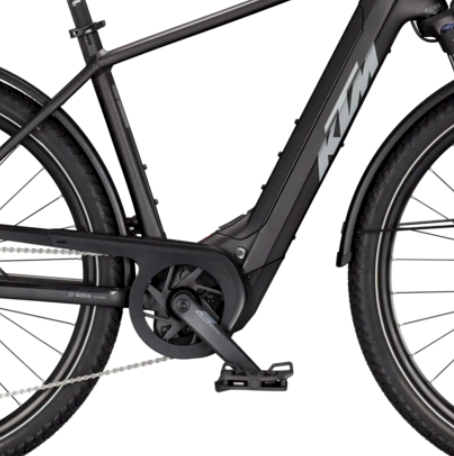

Motor |
Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch INTUVIA 100 LCD + LED Remote |
|
Drivetrain |
Shimano CUES U6000 10-speed LinkGlide Shadow+ |
|
Cassette |
Shimano LG400-10 11-48T |
|
Brakes |
Tektro HD-T390 / E390 2-piston hydraulic |
|
Rotors |
Tektro TR-45 180 mm / 160 mm |
|
Wheels |
Ryde Rival30 700c |
|
Tires |
Schwalbe Al Grounder Performance RaceGuard Reflex 60-622 |
|
Dropper Post |
KTM COMP internal dropper 100 mm |
|
Lighting |
B&M Myc 50 Lux front + B&M Toplight 2C rear |
|
Extras |
Full fenders, carrier (monkeyload/childseat ready), adjustable stem, chainguard |
|
Weight |
28.8 kg (fully equipped) |
|
Permissible Total Weight |
147 kg |
