2026 KTM Macina Gran 810 – Pure Performance Comfort Trekking
Specifications
|
Specification |
Details |
|
Model |
Macina Gran 810 1×11 Shimano CUES |
|
Vehicle Category |
Premium Comfort Trekking E-Bike (full equipment) |
|
Application |
Long-distance touring, commuting, leisure – pure performance focus |
|
Price (2025) |
€4,499 SRP |
|
Color |
Machine Grey Matt (Silver + Black) |
|
Sizes |
S | M | L | XL (Men / Women / Unisex frames) |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy 6061 – low-step comfort |
|
Fork |
Suntour XCR32-D Air LOR 80 mm |
|
Seatpost |
KTM Line dropper + suspension 30.9 mm (100 mm travel) |
Components & Features
|
Specification |
Details |
|
Motor |

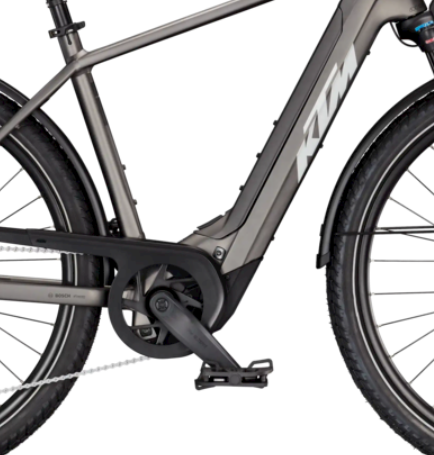

Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch KIOX 500 TFT + LED Remote |
|
Drivetrain |
Shimano CUES U6000 11/10-speed LinkGlide Shadow+ |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Tektro TKD-139 / HD-E730 4-piston hydraulic |
|
Rotors |
Tektro TR-45 180 mm / 160 mm |
|
Wheels |

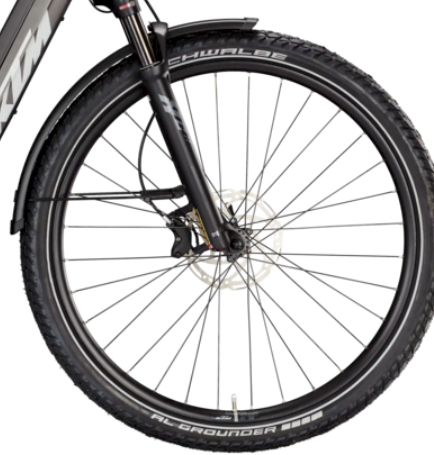

Ryde Rival30 700c |
|
Tires |
Schwalbe Al Grounder Performance RaceGuard Reflex 60-622 |
|
Dropper + Suspension Seatpost |
KTM Line dropper + suspension 100 mm travel |
|
Lighting |
B&M IQ-XS HighBeam 100-150 Lux front + B&M Toplight 2C rear |
|
Extras |
Full fenders, carrier (monkeyload/childseat ready), adjustable stem, chainguard |
|
Weight |
28.5 kg (fully equipped) |
|
Permissible Total Weight |
147 kg |
