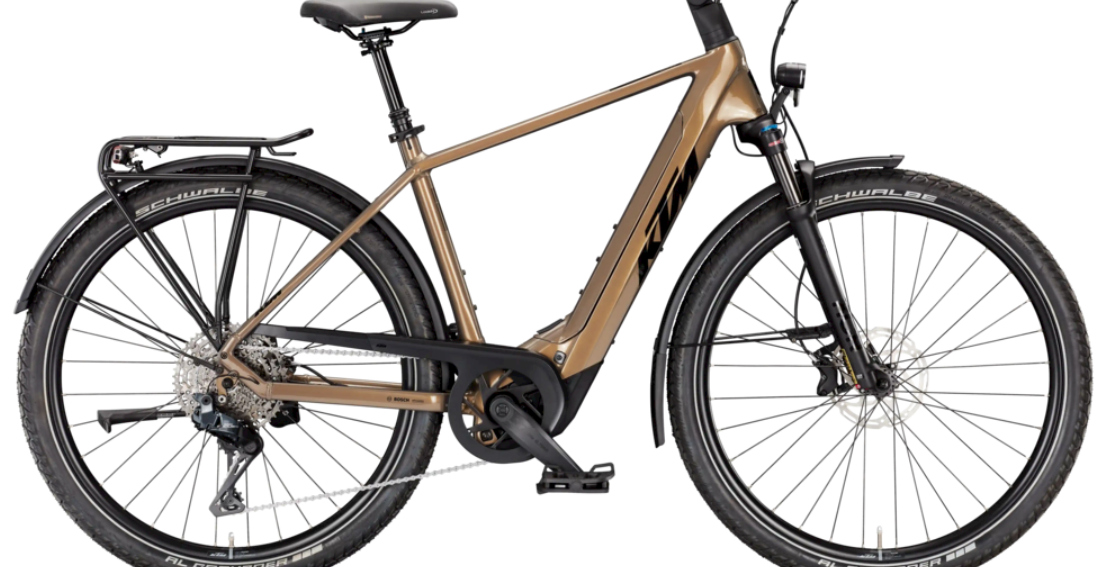

2026 KTM Macina Gran 810 DI2 – Premium Urban Trekking E-Bike with Electronic Shifting
Specifications
|
Specification |
Details |
|
Model |
Macina Gran 810 DI2 |
|
Application |
Travel, Commute, Urban Mobility |
|
Vehicle Category |
Premium Urban Trekking E-Bike |
|
Starting Price (2025) |
€4,999 |
|
Color Options |
Olive Pearl (Black) |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Wheels |
28″ / 700c |
|
Travel |
80 mm front |
|
Frame |
Macina Trekking Onroad Alloy6061 | PT800 Bosch BDU38 |
|
Fork |
SR Suntour XCR32 ATB Air LOR 29" 80 mm |
|
Rear Derailleur |
Shimano CUES Di2 U8050-11 SGS shadow |
|
Shifter |
Shimano CUES Di2 EN605 Switch |
|
Crank |
KTM E-TEAM2 ISIS 170 mm |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
KMC e11 Sport EPT e-bike |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Tektro TKD-139 / HD-E730 4-piston | TR-45 180/160 mm rotors |
|
Wheels |
Ryde Rival30 28" |
|
Tires |
Schwalbe Al Grounder Performance RaceGuard Reflex 60-622 |
|
Lights |
F: B&M IQ-XS 100–150 Lux HighBeam | R: B&M Dart brex |
|
Carrier |
KTM light60 (Snap-it 2.0 + MonkeyLoad + child seat compatible) |
|
Fenders |
SKS A69R PET Trek 28" full coverage |
|
Seatpost |
KTM Line dropper + suspension 100 mm travel |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight |
28.4 kg |
|
Permissible Total Weight |
146 kg |
