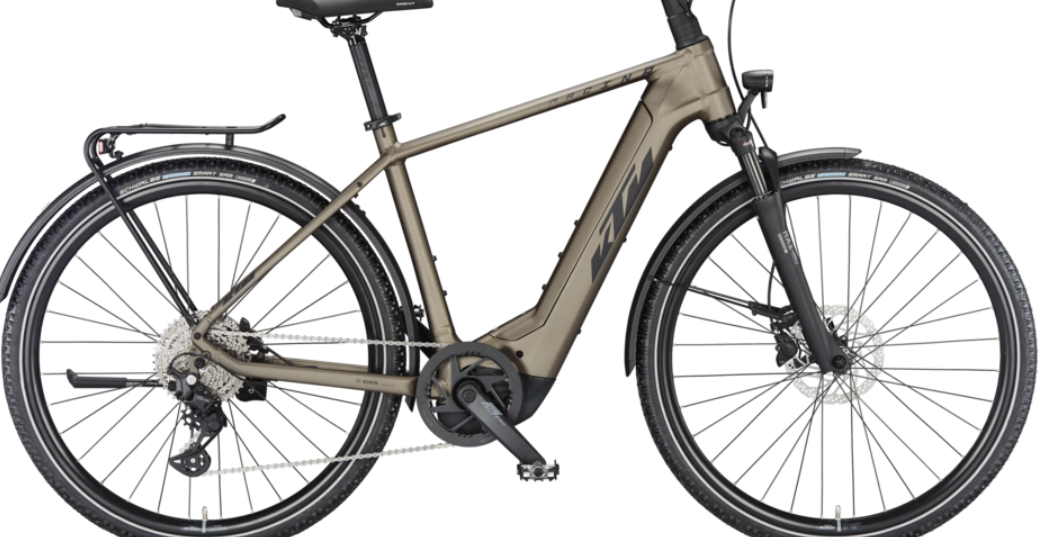

2026 KTM Macina Cross LFC – Fully Equipped All-Terrain Cross E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Cross LFC |
|
Application |
Travel, Commute, Light Off-Road |
|
Vehicle Category |
All-Terrain Cross E-Bike (LFC = Light-Fender-Carrier) |
|
Starting Price (2025) |
€4,199 |
|
Color Options |
Oak Matt (Black + Grey) |
|
Sizes |
S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Wheels |
28″ / 700c |
|
Travel |
63 mm front |
|
Frame |
Macina Trekking Onroad Alloy6061 | PT750 Bosch Gen.4 |
|
Fork |
SR Suntour NX1 coil LO 63 mm |
|
Rear Derailleur |
Shimano Deore M5130-10 LG shadow+ |
|
Shifter |
Shimano Deore M5130-10 LG |
|
Crank |
KTM E-COMP ISIS 170 mm | FSA steel 42T + chainguard |
|
Cassette |
Shimano LG400-10 11-43T |
|
Chain |
Shimano LG500 |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 300 TFT Display |
|
Brakes |
Shimano MT200 2-piston | RT30 CL 180/160 mm rotors |
|
Wheels |
Ryde Rival Sport 28" |
|
Tires |
Schwalbe Smart Sam Performance RT Addix 44-622 |
|
Lights |
F: B&M Lumotec MYC 50 Lux |
|
Carrier |
Integrated light carrier |
|
Fenders |
Racktime Alu 52 mm full coverage |
|
Kickstand |
KTM 28" adjustable |
|
Weight |
26.60 kg |
|
Permissible Total Weight |
146 kg |
