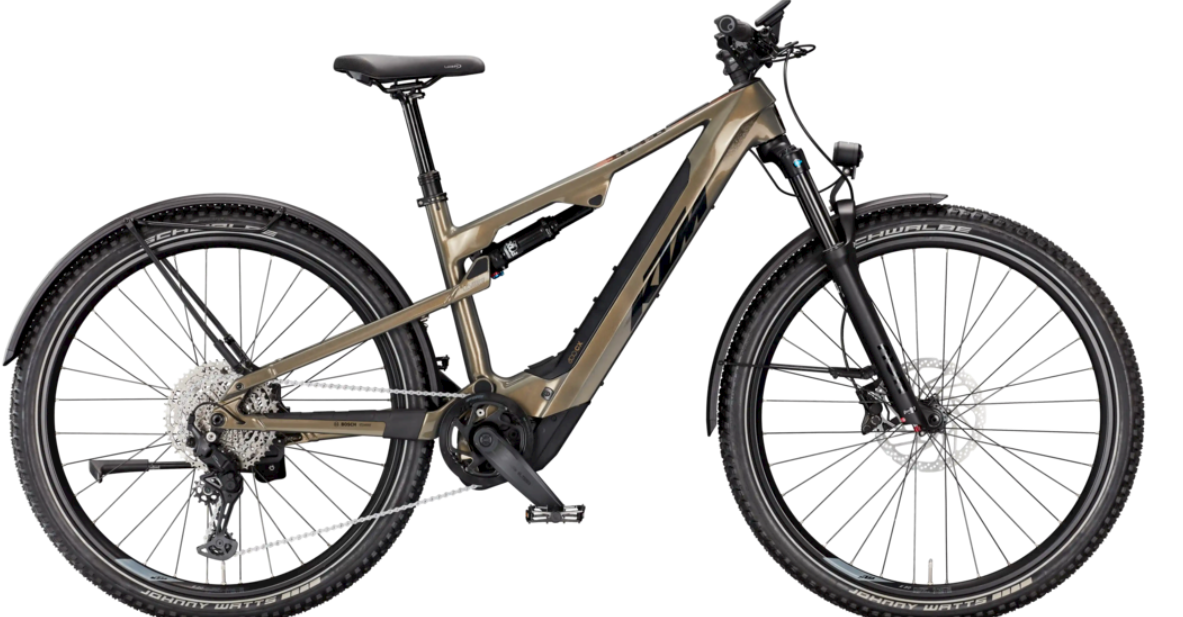

2026 KTM Macina Chacana 892 LFC – Fully Equipped Entry-Level SUV E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 892 LFC 1×11 Shimano CUES |
|
Vehicle Category |
Full Suspension Entry-Level SUV E-MTB (LFC = Light-Fender-Carrier) |
|
Application |
Touring, commuting, light trail – the most affordable full-suspension SUV |
|
Price (2025) |
€4,899 SRP |
|
Color |
Olive Pearl (Black + Orange) |
|
Sizes |
S | M | L | XL | XXL |
Frame & Suspension
|
Specification |
Details |
|

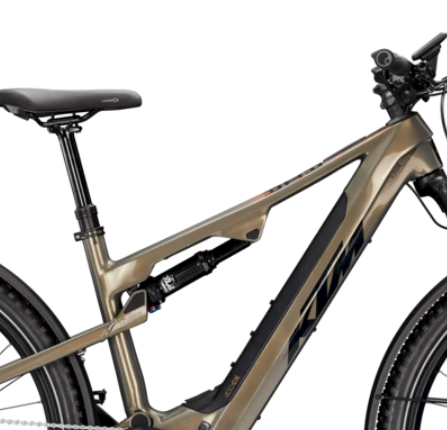

Frame |
Macina Chacana Alloy 6061 SLL 125 mm, UDH |
|

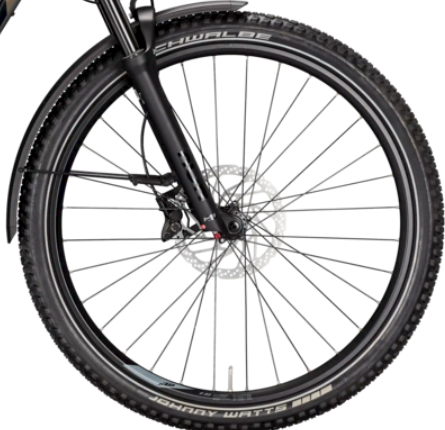

Fork |
Suntour XCR34X Air 27.5" 2CR 130 mm |
|
Shock |
FOX Float Rhythm 2-Pos 230×57.5 mm |
|
Travel |
130 mm front / 125 mm rear |
|
Wheel Size |
27.5" |
Components & Features
|
Specification |
Details |
|

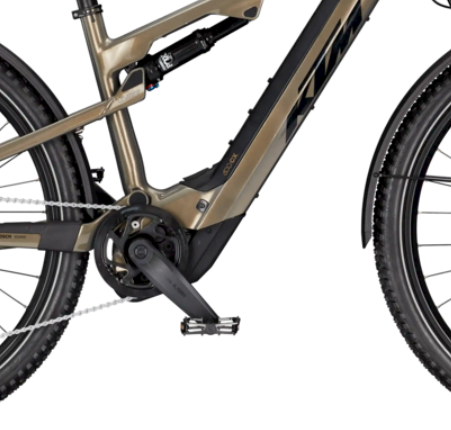

Motor |
Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch INTUVIA 100 LCD + LED Remote |
|

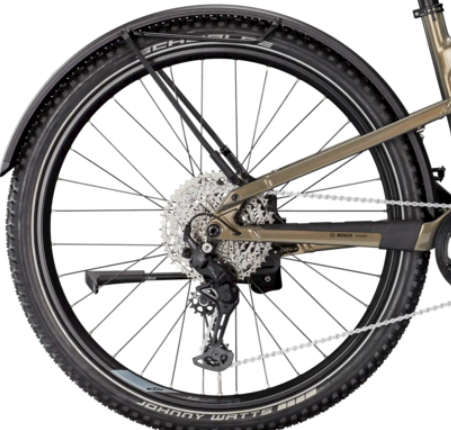

Drivetrain |
Shimano CUES U6000 11/10-speed LinkGlide Shadow+ |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Shimano MT402 (3-piston) front / MT420 4-piston rear |
|
Rotors |
Shimano RT30 CL 203 mm / EM300 CL 180 mm |
|
Wheels |
Ambrosio E30 Trail 27.5" |
|
Tires |
Schwalbe Johnny Watts Performance DD Reflex 65-584 (both wheels) |
|
Lighting |
Litemove SEC-150 150 Lux front |
|
Carrier |
Racktime Alumee (platform option) |
|
Fenders |
Racktime Alu 72 mm |
|
Kickstand |
KTM 28" adjustable |
|
Weight |
28.6 kg (fully equipped) |
|
Permissible Total Weight |
147 kg |
