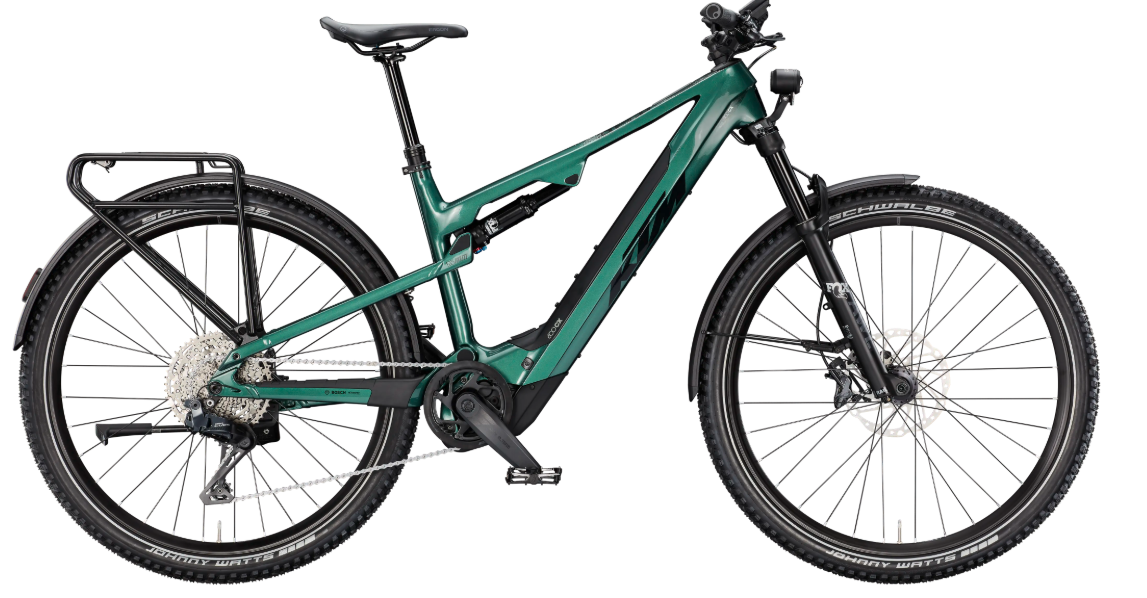

2025 KTM Macina Chacana 891 LFC – Premium Fully Equipped SUV E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 891 LFC Shimano CUES Di2 11 + Bosch PT-CX8K4 |
|
Vehicle Category |
Full Suspension Premium SUV / Light-Trekking E-MTB (LFC) |
|
Application |
Long-distance touring, commuting, light trail – fully equipped with electronic shifting |
|
Price (2025) |
€5,999 SRP |
|
Color |
Oxygen Green (Black) |
|
Sizes |
S | M | L | XL | XXL |
Frame & Suspension
|
Specification |
Details |
|

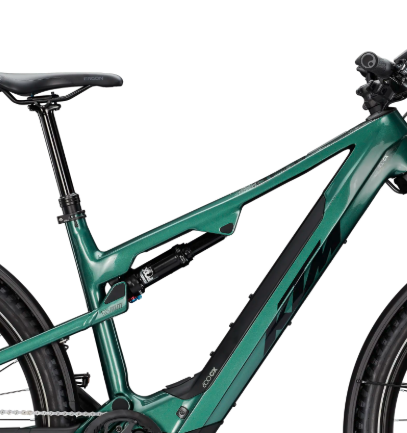

Frame |
Macina Chacana Alloy 6061 SLL 125 mm, UDH |
|
Fork |
FOX 34 Float AWL 27.5" e-bike 130 mm |
|
Shock |
FOX Float Rhythm 2-Pos 230×57.5 mm |
|
Travel |
130 mm front / 125 mm rear |
|
Wheel Size |
27.5" |
Components & Features
|
Specification |
Details |
|

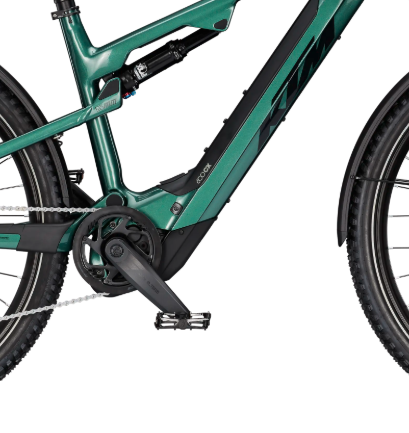

Motor |
Bosch Performance Line CX Gen.5 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch KIOX 500 TFT + LED Remote |
|
Drivetrain |
Shimano CUES Di2 U8050 11-speed electronic LinkGlide |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Shimano Deore M6100 / M6120 4-piston |
|
Rotors |
Shimano RT64 CL 203 mm / 180 mm |
|

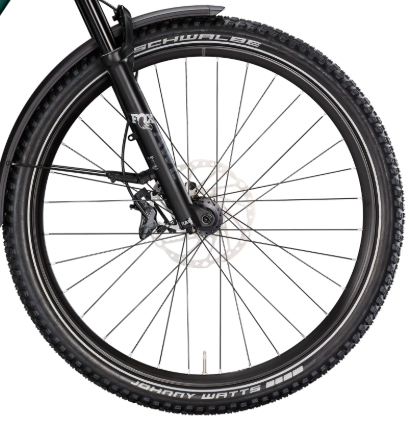

Wheels |
Mavic E-Crossride 27.5" |
|
Tires |
Schwalbe Johnny Watts Performance DD Reflex 65-584 (both wheels) |
|
Lighting |
Litemove AE-200 HighBeam 170-200 Lux front + Supernova TL3Z rear |
|

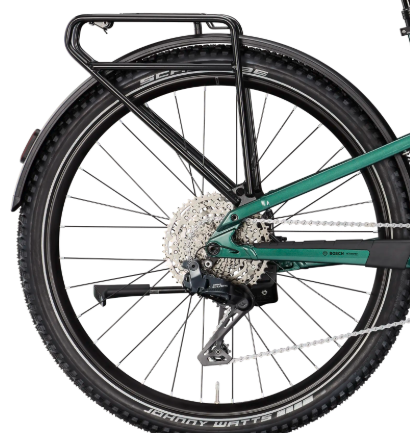

Carrier |
KTM Racktime Alumee |
|
Fenders |
Racktime Alu 72 mm B&M Supernova |
|
Kickstand |
KTM 28" adjustable |
|
Weight |
29.2 kg (fully equipped) |
|
Permissible Total Weight |
147 kg |
