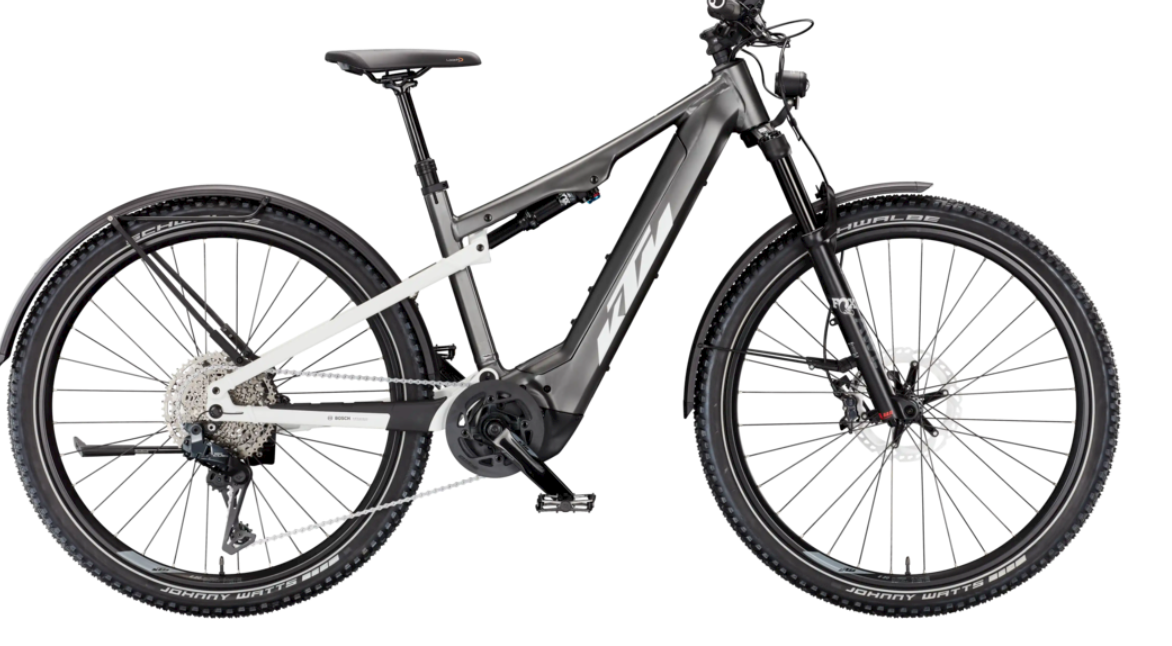

2026 KTM Macina Chacana 891 LFC DI2 – Premium SUV E-MTB with Wireless Shifting
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 891 LFC DI2 |
|
Vehicle Category |
Fully Equipped SUV E-MTB (LFC = Light-Fender-Carrier) |
|
Application |
Tour, Marathon, Daily Use, Light Trail |
|
Starting Price (2025) |
€5,899 |
|
Color Options |
Oxygen Green (Black) |
|
Sizes |
M | L | XL | XXL |
Frame & Drivetrain
|
Specification |
Details |
|

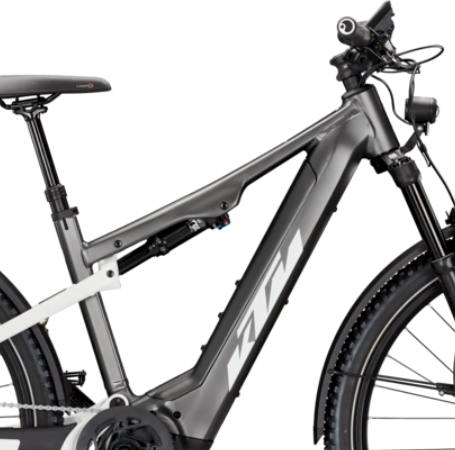

Frame |
Macina Chacana Alloy6061 SLL-E 125 mm UDH | PT800 Bosch BDU38 |
|

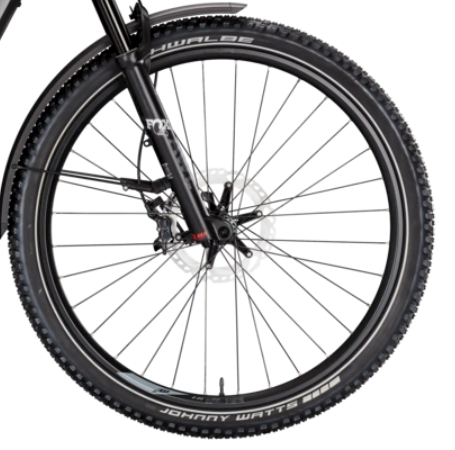

Fork |
FOX 34 Float AWL 29" e-bike 130 mm 15x110 |
|
Rear Shock |
FOX Float Rhythm 2-Pos 230×57.5 mm |
|

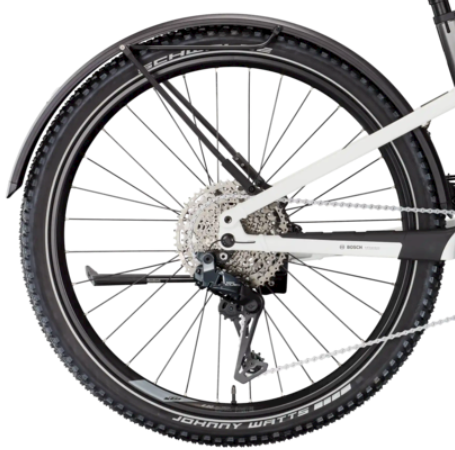

Rear Derailleur |
Shimano CUES Di2 U8050-11 SGS shadow |
|
Shifter |
Shimano CUES Di2 EN605 Switch (wireless) |
|
Crank |
KTM E-TEAM2 ISIS 170 mm |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
KMC e500 LG e-bike |
Components & Features
|
Specification |
Details |
|

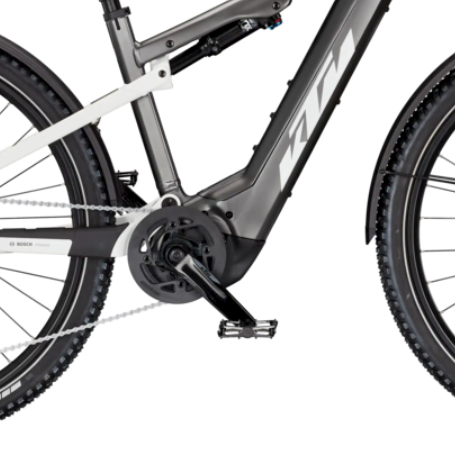

Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Shimano Deore M6100 / M6120 4-piston | RT64 CL 203 mm / EM600 CL 180 mm |
|
Wheels |
Mavic E-Crossride 29" Tubeless Ready |
|
Tires |
Schwalbe Johnny Watts Performance DD RaceGuard Reflex 60-622 (front & rear) |
|
Lights |
F: Litemove AE-200 170–200 Lux HighBeam | R: Supernova TL3Z |
|
Carrier |
KTM Racktime Alumee platform carrier |
|
Fenders |
Racktime Alu 72 mm full coverage |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Saddle |
Ergon SM10 E-Mountain |
|
Weight (fully equipped) |
29.2 kg |
|
Permissible Total Weight |
147 kg |
