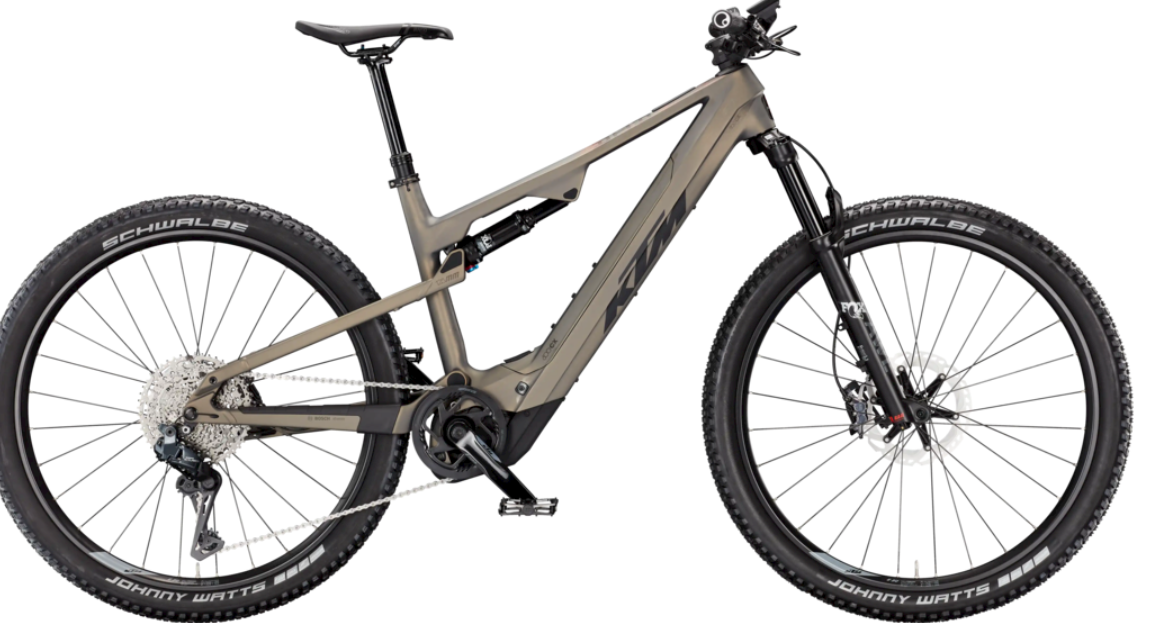

2026 KTM Macina Chacana 891 DI2 – High-Spec All-Terrain E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 891 DI2 |
|
Vehicle Category |
All-Terrain E-MTB |
|
Application |
Tour, Marathon, Light Trail, All-Day Adventure |
|
Starting Price (2025) |
€5,599 |
|
Color Options |
Olive Pearl Matt (Black + Orange) |
|
Sizes |
M | L | XL | XXL |
Frame & Drivetrain
|
Specification |
Details |
|

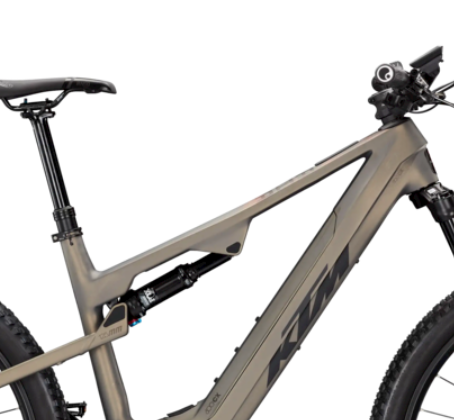

Frame |
Macina Chacana Alloy6061 SLL-E 125 mm UDH | PT800 Bosch BDU38 |
|
Fork |
FOX 34 Float AWL 29" e-bike 130 mm 15x110 |
|
Rear Shock |

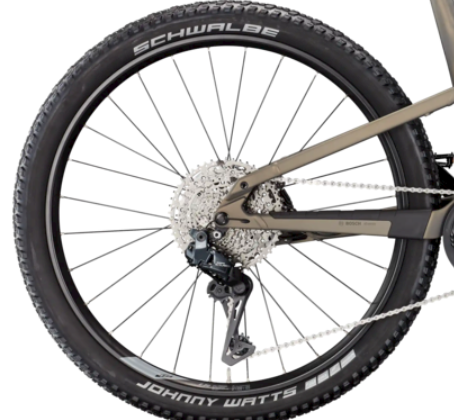

FOX Float DPS Performance 230×57.5 mm |
|
Rear Derailleur |
Shimano CUES Di2 U8050-11 SGS shadow |
|
Shifter |
Shimano CUES Di2 EN605 Switch (wireless) |
|
Crank |
KTM E-TEAM ISIS 170 mm |
|
Cassette |
Shimano LG400-11 11-50T |
|
Chain |
KMC e500 LG e-bike |
Components & Features
|
Specification |
Details |
|

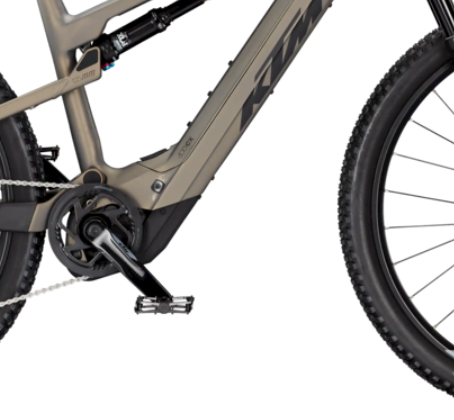

Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch LED Remote + KIOX 300 TFT Display |
|
Brakes |
Shimano Deore XT M8100 / M8120 4-piston | RT64 CL 203 mm / EM600 CL 180 mm |
|
Wheels |
Ambrosio E30 Trail 29" double wall |
|

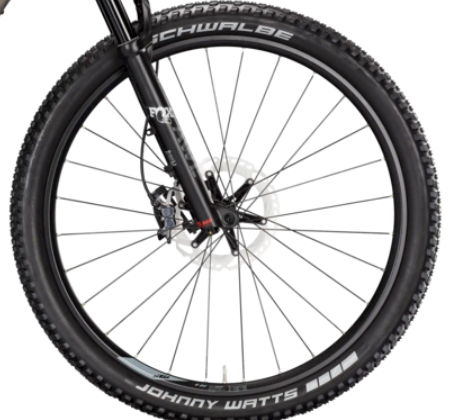

Tires |
Schwalbe Johnny Watts Performance DD RaceGuard Folding 65-622 (front & rear) |
|
Handlebar |
KTM COMP Trail35 riser15 760 mm |
|
Stem |
KTM TEAM Trail35 |
|
Seatpost |
KTM COMP II dropper internal 125 mm |
|
Saddle |
Selle San Marco RND Manganese Rails |
|
Grips |
Ergon GA20 |
|
Weight |
26.6 kg |
|
Permissible Total Weight |
127 kg |
