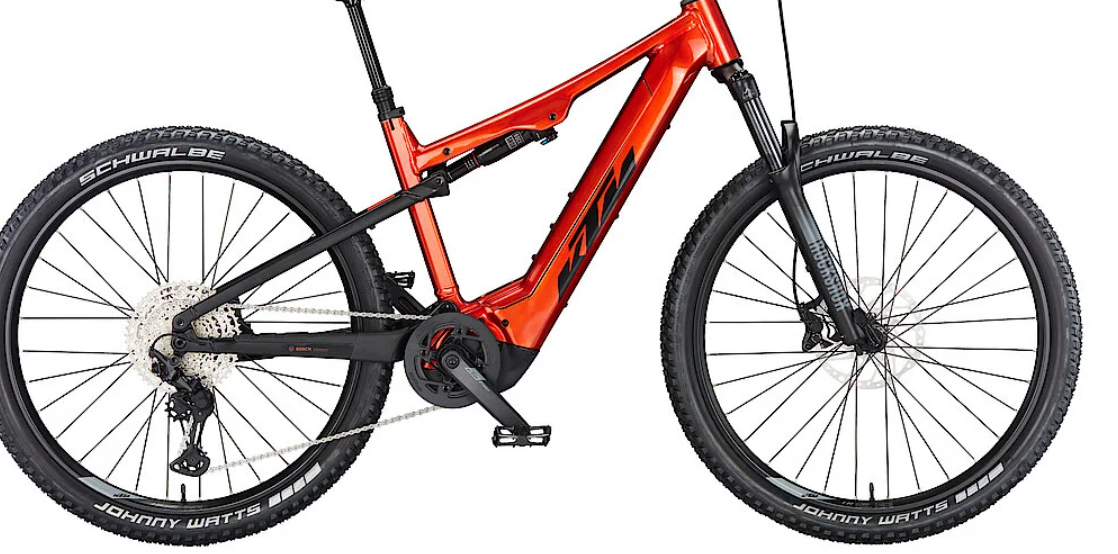

2023 KTM Macina Chacana 792 – Versatile All-Terrain E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 792 |
|
Vehicle Category |
All-Terrain E-MTB |
|
Application |
Tour, Marathon, Light Trail, All-Day Adventure |
|
Starting Price (2025) |
€5,599 |
|
Color Options |
Burnt Orange |
|
Sizes |
M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina Chacana 29" Alloy6061 SLL-E 125 mm UDH | PT750 Bosch Gen.4 |
|
Fork |
RockShox 35 Silver TK 29" 130 mm 15x110 taper |
|
Rear Shock |
RockShox Deluxe Select+ 230×57.5 mm |
|
Rear Derailleur |
Shimano Deore XT M8100-12 SGS shadow+ |
|
Shifter |
Shimano Deore M6100-12 |
|
Crank |
KTM E-COMP ISIS 170 mm | FSA Megatooth 36T + chainguard |
|
Cassette |
Shimano Deore M6100-12 10-51T |
|
Chain |
Shimano M6100-12 |
Components & Features
|
Specification |
Details |
|
Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 300 TFT Display |
|
Brakes |
Shimano M4100 / MT420 4-piston | RT64 CL 203/180 mm |
|
Wheels |
29" double wall (Ambrosio E30 Trail rims) |
|
Tires |
Schwalbe Johnny Watts Performance DD RaceGuard Folding 65-622 (front & rear) |
|
Handlebar |
KTM COMP II Trail35 riser15 760 mm |
|
Stem |
KTM TEAM II Trail35 |
|
Seatpost |
KTM COMP II dropper internal |
|
Saddle |
Selle San Marco RND Manganese Rails |
|
Grips |
Ergon GA20 |
|
Weight |
27.60 kg |
|
Permissible Total Weight |
147 kg |
