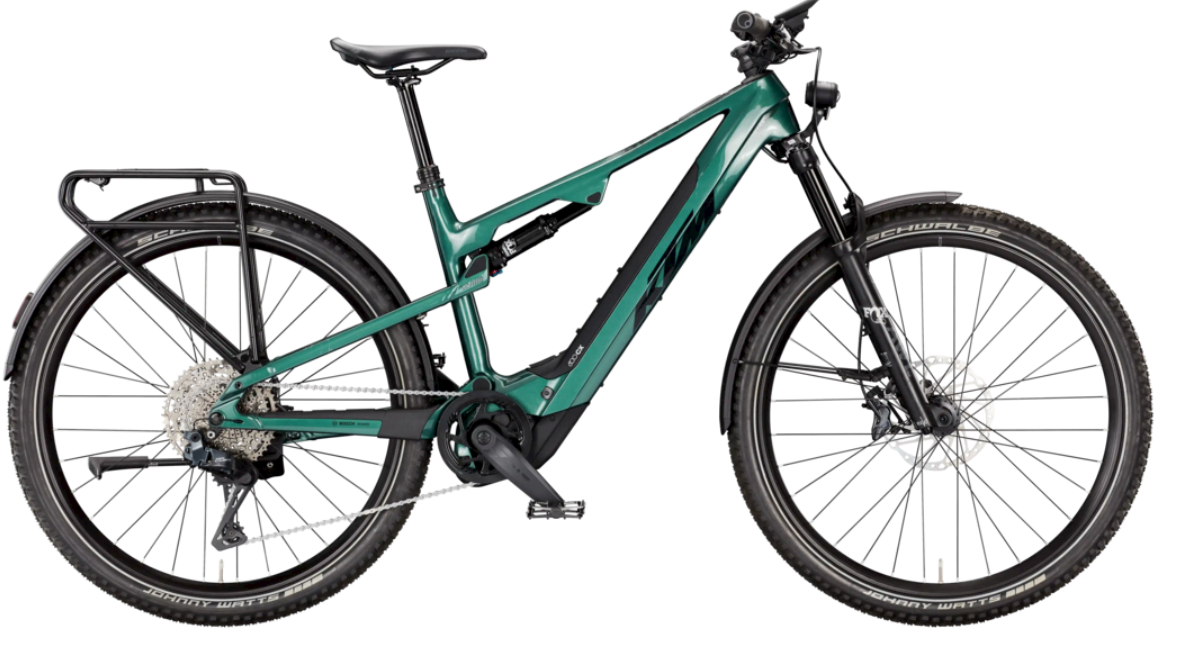

2026 KTM Macina Chacana 791 LFC DI2 – Premium Fully Equipped SUV E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 791 LFC DI2 1×11 Shimano CUES Di2 |
|
Vehicle Category |
Full Suspension Premium SUV E-MTB (LFC = Light-Fender-Carrier) |
|
Application |
Long-distance touring, commuting, moderate trail – fully equipped with electronic shifting |
|
Price (2025) |
€5,199 SRP |
|
Sizes |
M | L | XL |
Frame & Suspension
|
Specification |
Details |
|

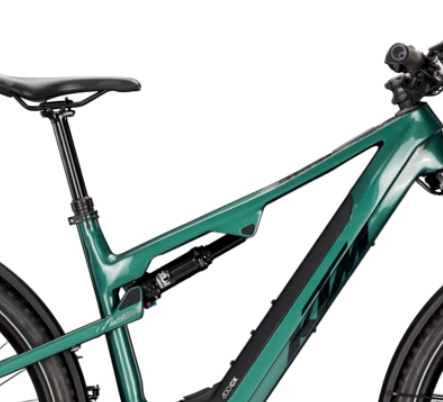

Frame |
Macina Chacana 29" Alloy 6061 SLL 125 mm, UDH |
|
Fork |
FOX 34 Float AWL 29" e-bike 130 mm |
|
Shock |
FOX Float DPS Performance 230×57.5 mm |
|
Travel |
130 mm front / 125 mm rear |
|
Wheel Size |
29" |
Components & Features
|
Specification |
Details |
|

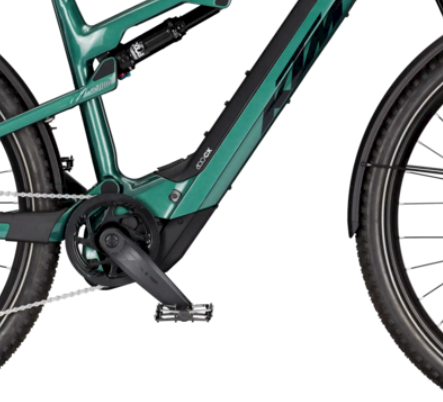

Motor |
Bosch Performance Line CX Gen.4 – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch KIOX 300 TFT + LED Remote |
|

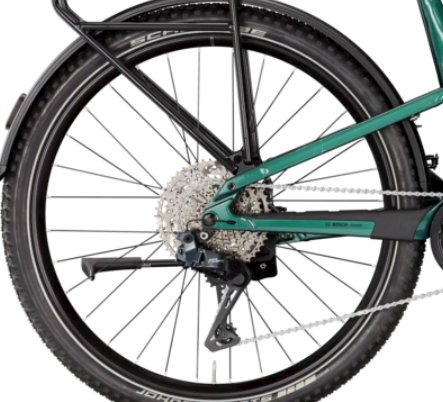

Drivetrain |
Shimano CUES Di2 U8050 11-speed electronic LinkGlide Shadow+ |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Shimano Deore XT T8100 / M8120 4-piston |
|
Rotors |
Shimano MT800 Freeza 203 mm / EM810 180 mm |
|

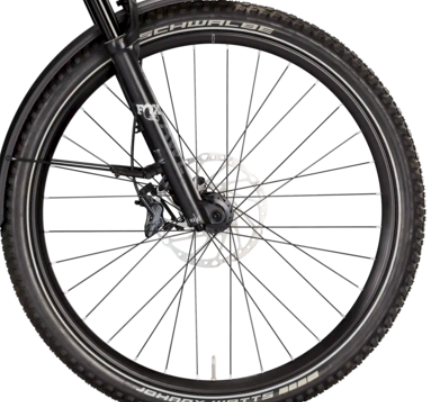

Wheels |
Ambrosio E30 Trail 29" |
|
Tires |
Schwalbe Johnny Watts Performance DD RaceGuard Reflex 60-622 (both wheels) |
|
Lighting |
Litemove AE-130 HighBeam 90-130 Lux front |
|
Carrier |
Racktime Alumee (platform option) |
|
Fenders |
Racktime Alu 72 mm |
|
Kickstand |
KTM 28" adjustable |
|
Weight |
28.9 kg (fully equipped) |
|
Permissible Total Weight |
147 kg |
