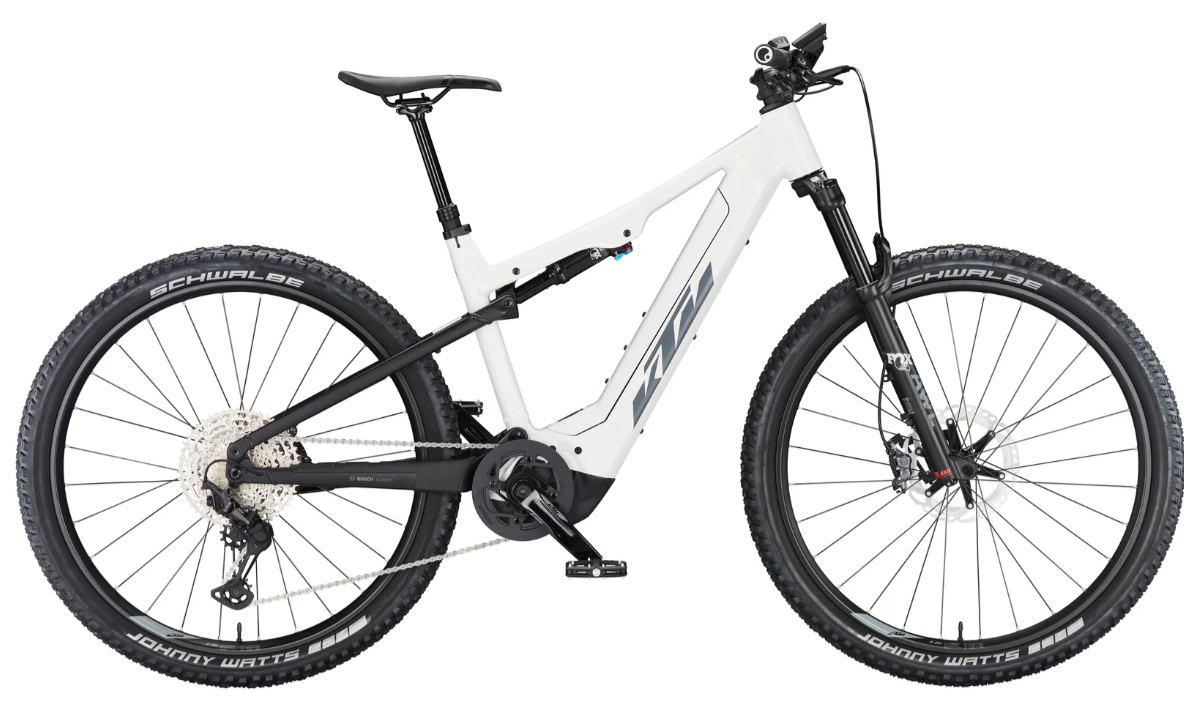

2023 KTM Macina Chacana 791 – Full Suspension E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 791 Shimano Deore XT 12 + Bosch PT-CX7K4 |
|
Vehicle Category |
Full Suspension Electric All-Mountain / Trail MTB |
|
Application |
All-mountain, long-distance touring, light trail |
|
Price (2025) |
€6,199 SRP |
|
Color |
Metallic White |
|
Sizes |
M | L | XL |
Frame & Suspension
|
Specification |
Details |
|

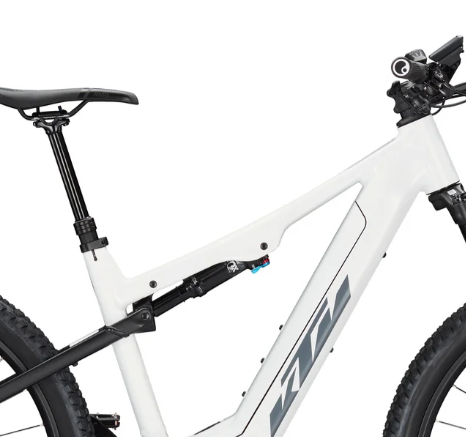

Frame |
Macina Chacana 29" Alloy 6061 SLL-E 125 mm, UDH |
|

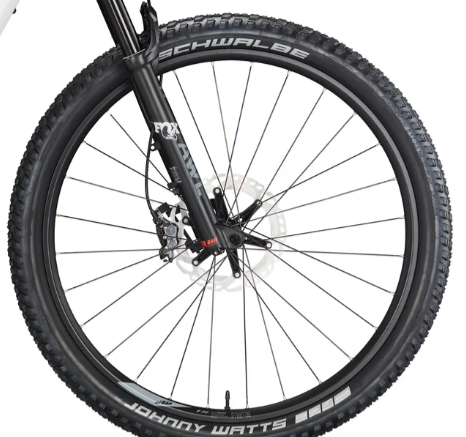

Fork |
FOX 34 Float AWL 29" e-bike 130 mm |
|
Shock |
FOX Float DPS Performance 230×57.5 mm |
|
Travel |
130 mm front / 125 mm rear |
|
Wheel Size |
29" full (both wheels) |
Components & Features
|
Specification |
Details |
|

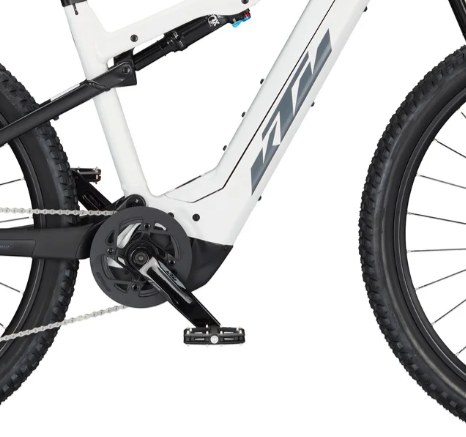

Motor |
Bosch Performance Line CX Gen.4 Smart System – 85 Nm |
|
Battery |
Bosch PowerTUBE 750 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch KIOX 300 TFT + LED Remote Smart System |
|

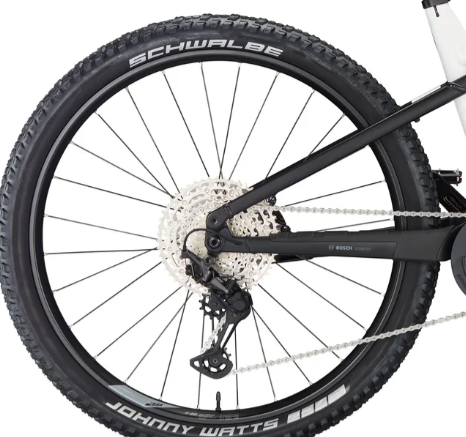

Drivetrain |
Shimano Deore XT M8100 12-speed |
|
Cassette |
Shimano Deore M6100-12 10-51T |
|
Brakes |
Shimano Deore XT M8100 / M8120 4-piston |
|
Rotors |
Shimano MT800 Freeza 203 mm / 180 mm |
|
Wheels |
KTM Line – Ambrosio E30 Trail by DT Swiss (29" both wheels) |
|
Tires |
Schwalbe Johnny Watts Performance DD RaceGuard 65-622 (both wheels) |
|
Handlebar |
KTM COMP II Trail35 riser15 760 mm |
|
Seatpost |
KTM COMP II internal dropper |
|
Saddle |
Selle San Marco RND Manganese Rails |
|
Weight |
26.60 kg |
|
Permissible Total Weight |
146 kg |
