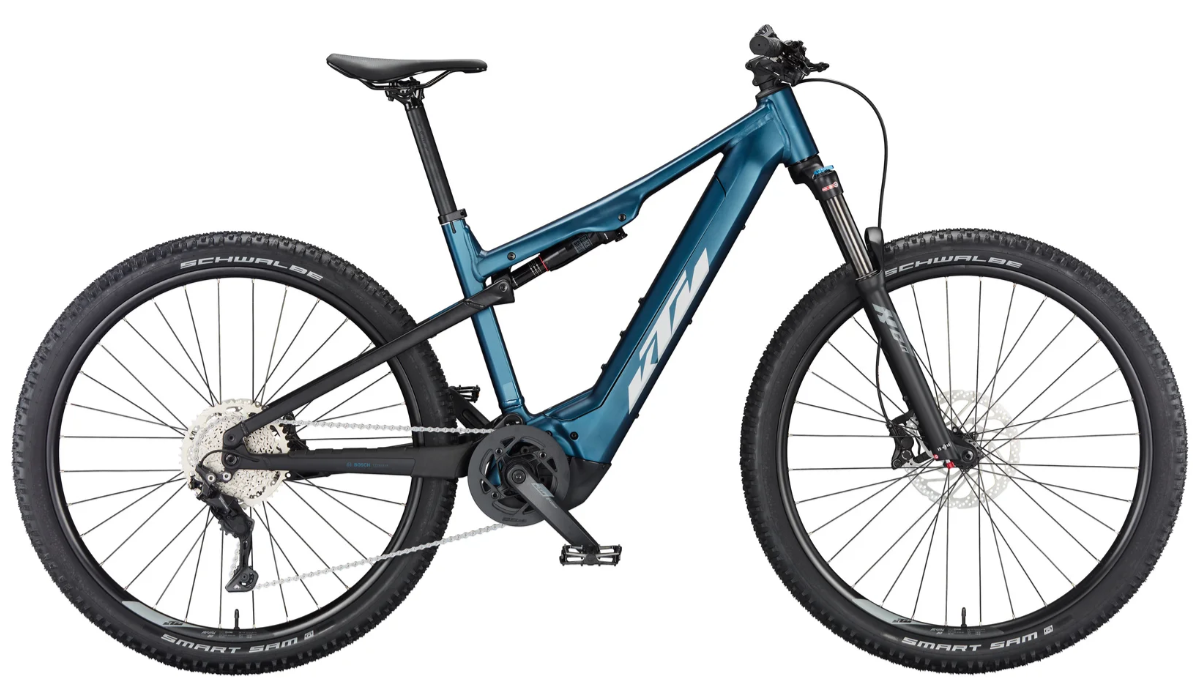

2023 KTM Macina Chacana 591 – Full Suspension E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Chacana 591 Shimano Deore 10 + Bosch PT-CX5R4 |
|
Vehicle Category |
Full Suspension All-Mountain / Comfort Trail E-MTB |
|
Application |
All-day touring, marathon, light trail, LFC-ready |
|
Price (2025) |
€4,599 SRP |
|
Color |
Vital Blue Matt |
|
Sizes |
M | L | XL |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Chacana 29" Alloy 6061 SLL-E 125 mm, UDH |
|

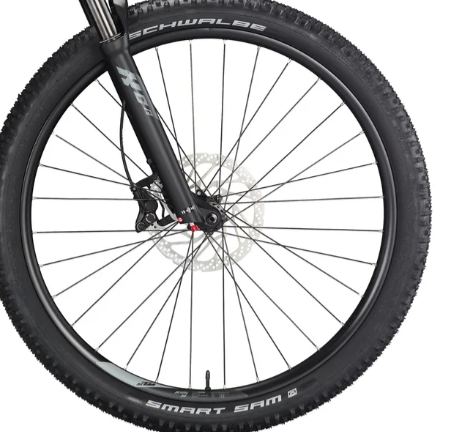

Fork |
Suntour XCR 34 Air LOR 29" 130 mm |
|

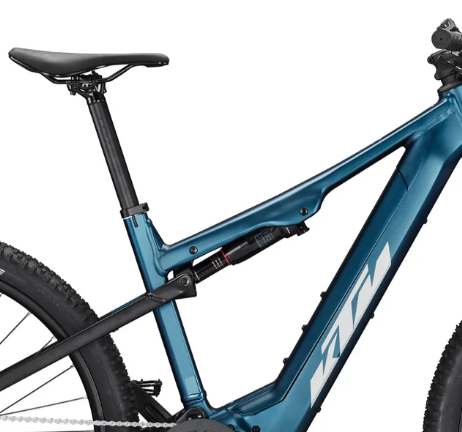

Shock |
RockShox Deluxe Select 230×57.5 mm |
|
Travel |
130 mm front / 125 mm rear |
|
Wheel Size |
29" full |
Components & Features
|
Specification |
Details |
|

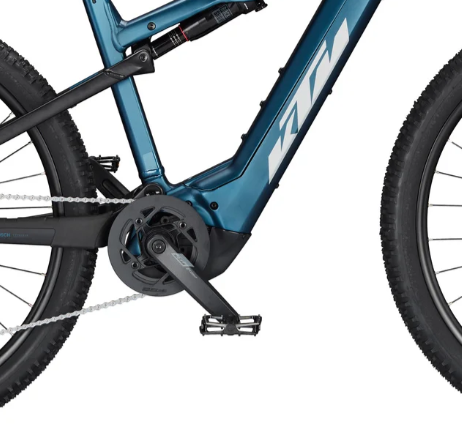

Motor |
Bosch Performance Line CX Gen.4 Smart System – 85 Nm |
|
Battery |
Bosch PowerTUBE 500 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch LED Remote Smart System |
|

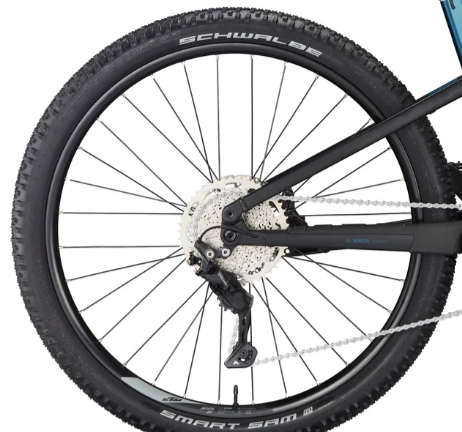

Drivetrain |
Shimano Deore M5120 10-speed Shadow+ |
|
Cassette |
Shimano Deore M4100-10 11-46T |
|
Brakes |
Shimano MT401 front / MT420 4-piston rear |
|
Rotors |
Shimano RT30 CL 203 mm / 180 mm |
|
Wheels |
KTM Line – Ryde Rival30 29" |
|
Tires |
Schwalbe Smart Sam K-Guard 60-622 (both wheels) |
|
Handlebar |
KTM COMP II Trail35 riser15 760 mm |
|
Seatpost |
KTM COMP II rigid 30.9 mm |
|
Saddle |
KTM Line Sport |
|
Weight |
24.90 kg |
|
Permissible Total Weight |
144 kg |
