2026 KTM Macina Aera FS Prime LFC DI2 – Premium Full-Suspension Comfort SUV E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Aera FS Prime LFC DI2 |
|
Vehicle Category |
Full-Suspension Comfort SUV E-Bike (LFC = Light-Fender-Carrier) |
|
Application |
Long tours, daily commuting, ultimate comfort rides |
|
Starting Price (2025) |
€6,799 |
|
Color Options |
Mars Black Matt (Fresh Orange) |
|
Sizes |
XS | S | M | L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina Aera Carbon VPP 100 mm UDH | PT800 Bosch BDU38 |
|
Fork |
FOX 34 Float AWL 27.5" e-bike 100 mm 15x110 |
|
Rear Shock |
SR Suntour EDGE-EVO 2CR 190×45 mm |
|
Rear Derailleur |
Shimano CUES Di2 U8050-11 SGS shadow |
|
Shifter |
Shimano CUES Di2 EN605 Switch (wireless) |
|
Crank |
KTM E-TEAM2 ISIS 170 mm |
|
Cassette |
Shimano LG700-11 11-50T |
|
Chain |
KMC e11 Sport EPT e-bike |
Components & Features
|
Specification |
Details |
|

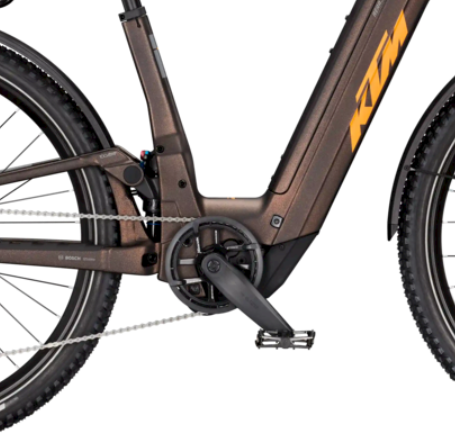

Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Shimano CUES U8000 / U8020 4-piston | MT800 CL 203 mm Freeza / EM810 CL 180 mm |
|

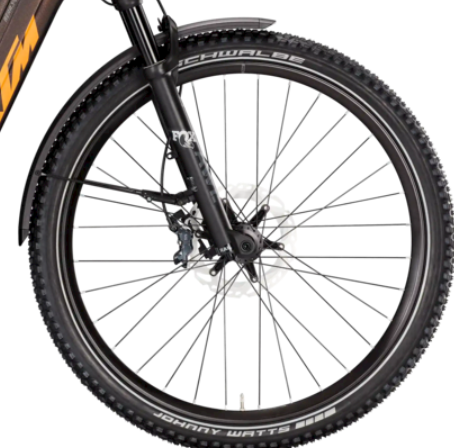

Wheels |
Mavic E-Crossride 27" Tubeless Ready |
|
Tires |
Schwalbe Johnny Watts Performance DD Folding Reflex 65-584 (front & rear) |
|
Lights |
F: Litemove AE-200 170–200 Lux HighBeam | R: integrated rear light |
|

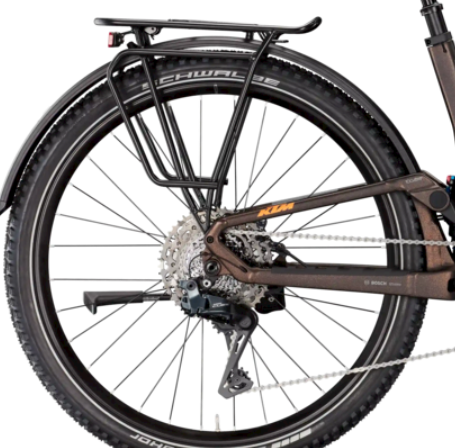

Carrier |
KTM light 42 (Snap-it 2.0 + MonkeyLoad compatible) |
|
Fenders |
Racktime Alu 72 mm full coverage |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight (fully equipped) |
28.8 kg |
|
Permissible Total Weight |
147 kg |
