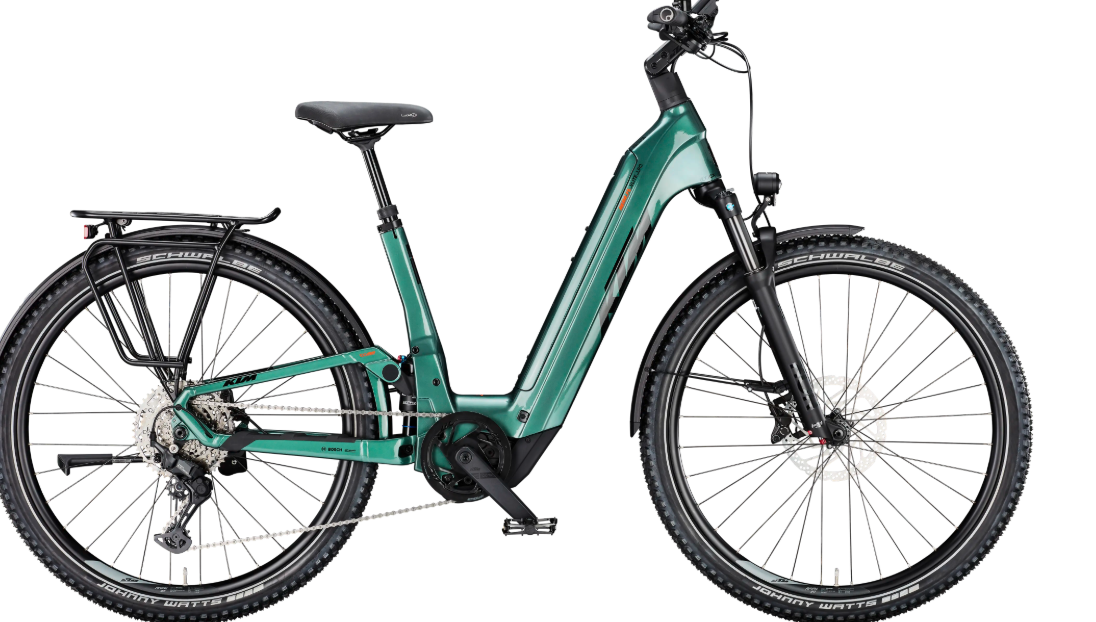

2025 KTM Macina Aera FS Elite LFC – Full-Suspension Comfort SUV E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Aera FS Elite LFC |
|
Vehicle Category |
Full-Suspension Comfort SUV E-Bike (LFC = Light-Fender-Carrier) |
|
Application |
Long-distance touring, commuting, relaxed all-day rides |
|
Starting Price (2025) |
€5,999 |
|
Color Options |
Green + Black (Black + Orange) |
|
Sizes |
XS | S | M | L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina Aera Performance Carbon VPP100 mm UDH | PT800 Bosch BDU38 |
|
Fork |
SR Suntour XCR34 Air 27.5" 2CR 100 mm taper |
|
Rear Shock |
SR Suntour EDGE-EVO 2CR 190×45 mm |
|
Rear Derailleur |
Shimano CUES U6000-11/10 LG shadow+ |
|
Shifter |
Shimano CUES U6000-10 display |
|
Crank |
KTM E-COMP2 ISIS 170 mm |
|
Cassette |
Shimano LG400-10 11-48T |
|
Chain |
Shimano LG500 |
Components & Features
|
Specification |
Details |
|

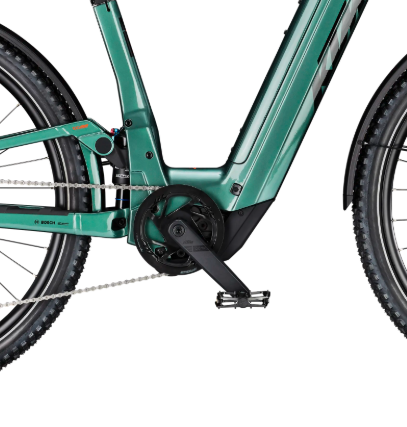

Motor |
Bosch PERFORMANCE CX BDU3840 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Shimano MT402 (3-finger) / MT420 4-piston | RT30 CL 203 mm / EM300 CL 180 mm |
|
Wheels |
KTM Line 27" (Ryde Rival30 rims) |
|
Tires |
Schwalbe Johnny Watts Performance DD Folding Reflex 65-584 (front & rear) |
|
Lights |
F: Litemove SEC-150 150 Lux | R: B&M Xeltec integrated |
|

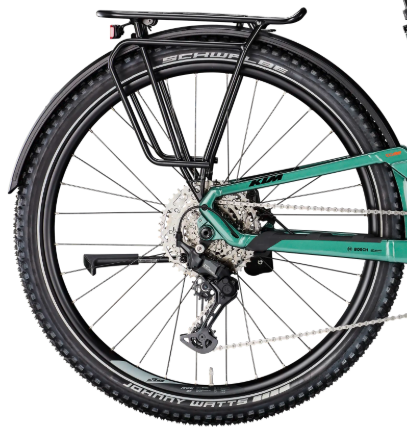

Carrier |
KTM tour 60 (Snap-it 2.0 + MonkeyLoad ready) |
|
Fenders |
Racktime Alu 72 mm full coverage |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight (fully equipped) |
29.1 kg |
|
Permissible Total Weight |
139 kg |
