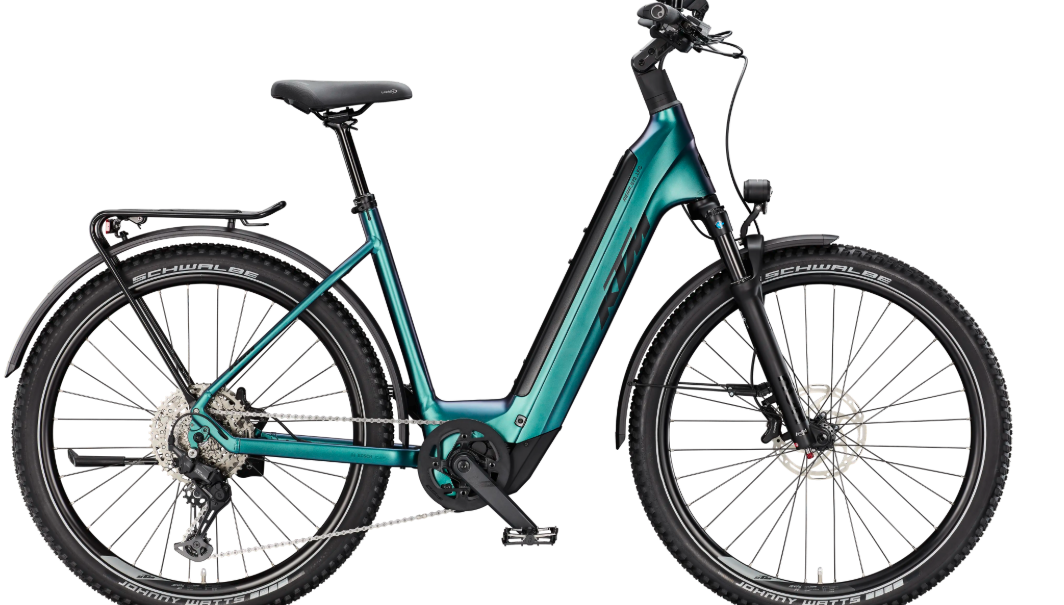

2025 KTM Macina Aera 872 LFC – 800 Wh Hardtail SUV E-Bike with CUES LinkGlide
Specifications
|
Specification |
Details |
|
Model |
Macina Aera 872 LFC |
|
Vehicle Category |
Hardtail SUV E-Bike (LFC = Light-Fender-Carrier) |
|
Application |
Tour, Marathon, Commuting, Light Off-Road |
|
Starting Price (2025) |
€4,599 |
|
Color Options |
Green Purple Flip Matt (Black) |
|
Sizes |
XS | S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy6061 | PT800 Bosch BDU38 |
|
Fork |
SR Suntour XCR34 Air 2CR 27.5" 80 mm taper |
|

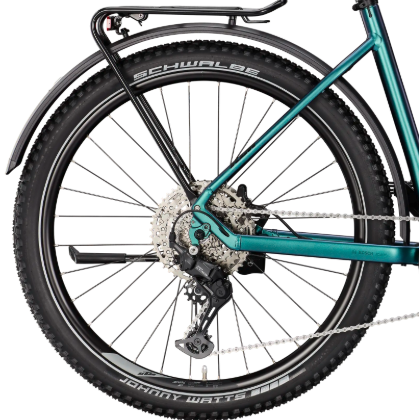

Rear Derailleur |
Shimano CUES U6000-11/10 LG shadow+ |
|
Shifter |
Shimano CUES U6000-10 LG |
|
Crank |
KTM E-COMP2 ISIS 170 mm |
|
Cassette |
Shimano LG400-10 11-48T |
|
Chain |
KMC e500 LG e-bike |
Components & Features
|
Specification |
Details |
|

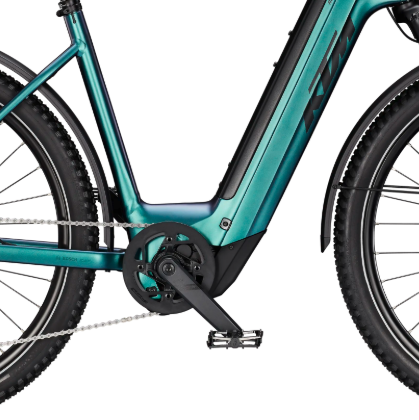

Motor |
Bosch PERFORMANCE CX BDU3840 – 85 Nm / 600 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL – Power Tube Top Loader) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Tektro HD-M535 4-piston | TR-45 180 mm rotors |
|

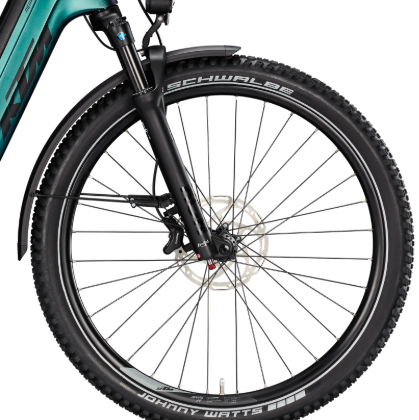

Wheels |
Ryde Rival30 27.5" on Shimano hubs |
|
Tires |
Schwalbe Johnny Watts Performance DD Folding Reflex 65-584 (front & rear) |
|
Lights |
F: Litemove SEC-150 150 Lux | R: B&M Xeltec integrated |
|
Carrier |
KTM Alumee (Snap-it 2.0 + MonkeyLoad compatible) |
|
Fenders |
Racktime Alu 72 mm full coverage |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight (fully equipped) |
28.1 kg |
|
Permissible Total Weight |
146 kg |
